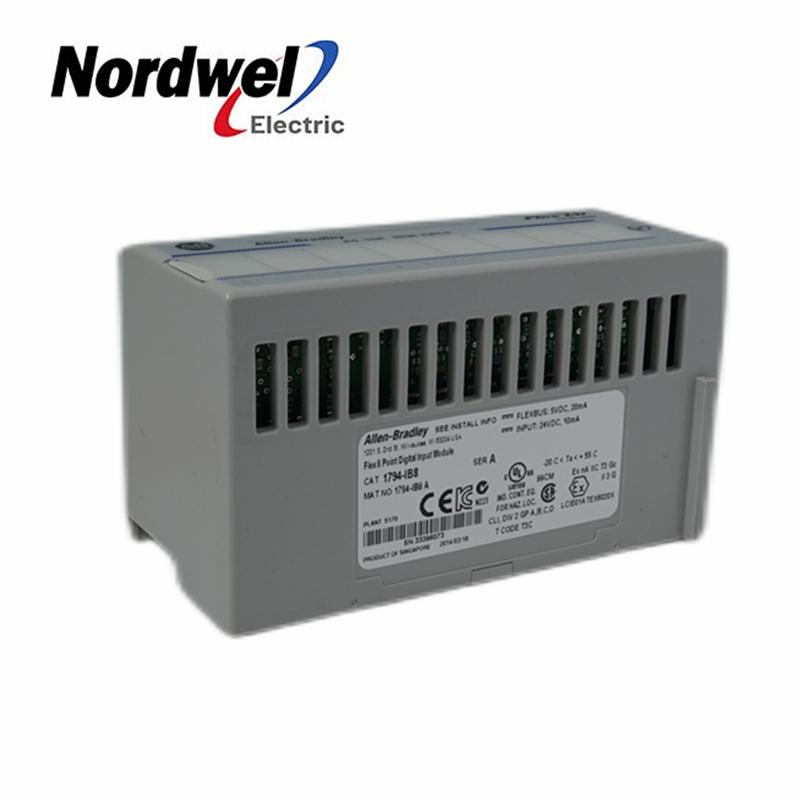

|1794-IB8 | FLEX Input Module


  • Part Number:

    1794-IB8
  • Weight:

    0.1kg
  • Dimensions:

    7.6 cm x 5.1 cm x 5.1 cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    1794-IB8 FLEX I/O Input Module, 24V DC, 8 Sink Inputs

Technical Specifications for 1794-IB8

Manufacturer                                      Automation

Brand

Part Number/Catalog No.                   1794-IB8

Product Type                                       Flex I/O Digital Input Modules

Inputs                                                  8 Current Sinking

On-state Voltage min.                         10V DC

On-state Voltage max.                        31.2V DC

On-state Current min.                         2.0mA min.

On-state Current max.                       12.0mA

Off-state Voltage max.                        5V DC

Off-state Current max.                        1.5mA

Nominal Input Impedance                   4.6 k?

Flexbus Current                                  20mA @ 5V DC

Power Dissipation                               3.5W @ 31.2V DC max.


The 1794-IB8 module is an I/O module with 8 digital sink inputs. It has a nominal voltage

 rating of 24 Volts DC. It is an SIL2 rated module that is suitable for industrial use.
