Part Number:
330854-080-24-00Weight:
0.045 KgDimensions:
10cm x4cm x8cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:

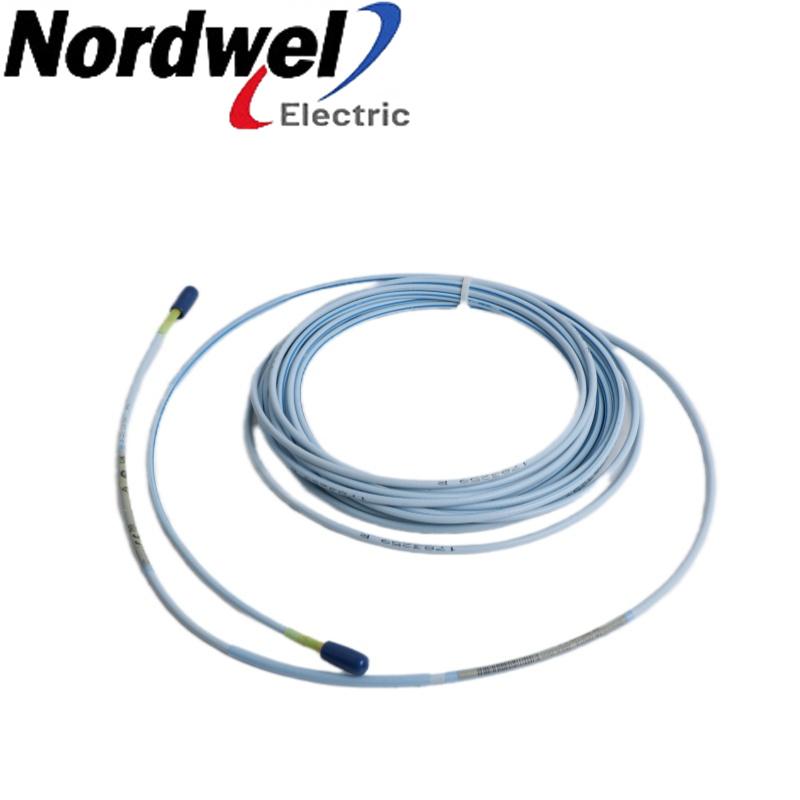

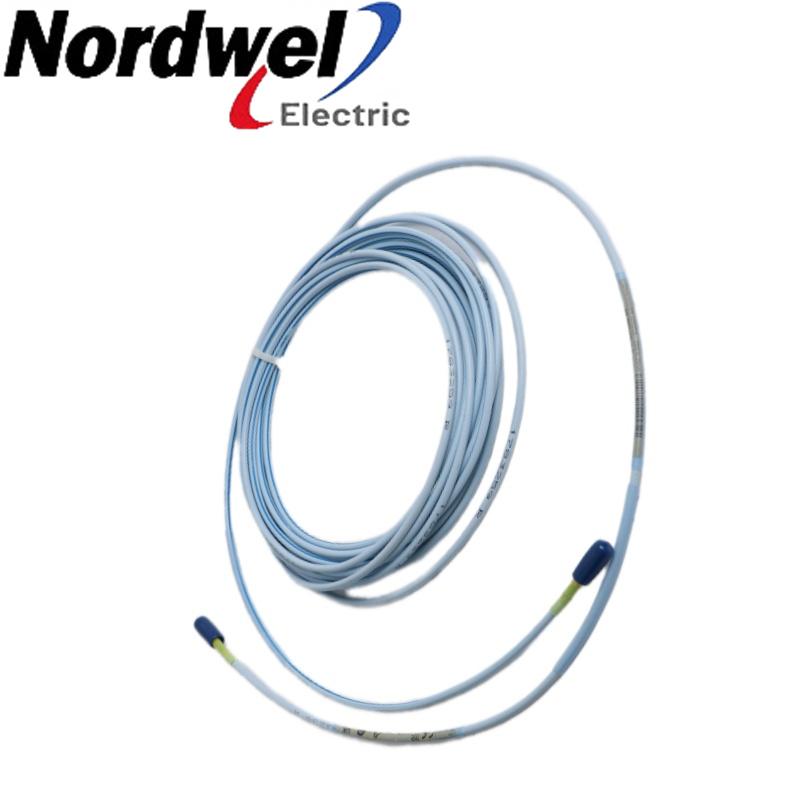

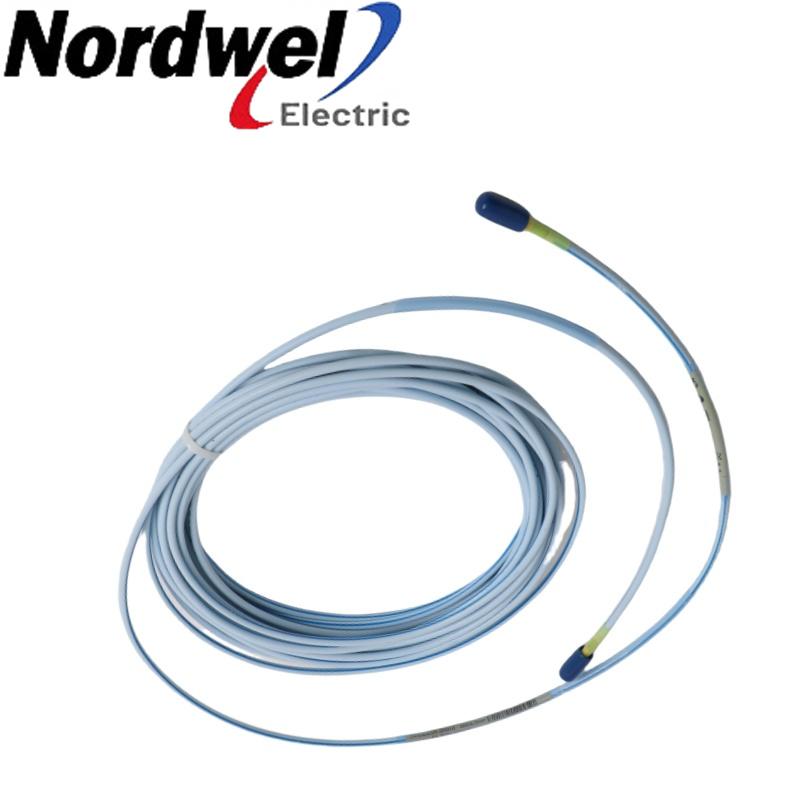

Bently Nevada 330854-080-24-00 3300 XL 25 mm Extension Cable
We provide industry-leading parts for the manufacturing industry
If you are interested, click here Email: sales2@mooreplc.com for a quick quote!!!
Call us immediately and we will be at your service 24 hours a day
Contact: Tiffany Guan
Email: sales2@mooreplc.com
Mobile / WhatsApp : + 86 18030235313
Skype : dddemi33
Bently Nevada 330854-080-24-00 3300 XL 25 mm Extension Cable
330130-040-00-05 is a 3300 XL 25mm High-Temperature FluidLoc Cable manufactured by Bently Nevada and used in proximity transducer system. Proximity Sensors come from the factory with a standard calibration to AISI 4140 steel. It is possible to calibrate on-demand to additional target materials.Take note of the factors to take into account when using eddy current proximity probes for Overspeed protection applications when assessing this transducer system for tachometer or Overspeed measurements. Physically and technologically, the non-XL 3300 5 and 8 mm components can be swapped out for the 3300 XL 8 mm components. Even if the packaging of the 3300 XL Proximitor Sensor differs from that of its predecessor, it is still designed to fit in the same 4-hole mounting pattern when used with the same mounting base's 4-hole mounting pattern and will adhere to the same mounting space requirements.
Manufacturer : Bently Nevada
Product No. : 330854-080-24-00
Product type : 3300 XL 25 mm Extension Cable
Cable Length Option : 080 = 8.0 metres (26.2 feet)
Armor and Cable Option : 24 = High Temperature FluidLoc cable
Agency Approval Option : 00 = No Approvals
Extension Cable Material : 75 ohm triaxial, perfluoroalkoxyethylene (PFA) insulated FluidLoc cable.
Extension cable capacitance : 69.9 pF/m (21.3 pF/ft) typica
Operating and Storage Temperature : -35°C to +200°C (-31°F to +392°F)
Weight : 0.045 Kg
|
DELIVERY |
Unless otherwise specified, we will ship your order via (DHL). We can also ship via Fedex, UPS, TNT . We can also use your account number.
|
|
PAYMENT |
We accept major credit cards VISA, MasterCard, American Express and Discover, PayPal, and other electronic payments, such as international T / T wire transfers.
|
|
Warranty period |
We provides 12 months warranty for all parts and components.Your satisfaction is how we measure success! |
|
