Payment:
T/TPart Number:
INNPM11Weight:
0.24kgDimensions:
4x3.7x17.7cmManufacture Year:
The latest yearPlace of Origin:
SWEDENCertification:
COODescription:
Module—— Specifications：

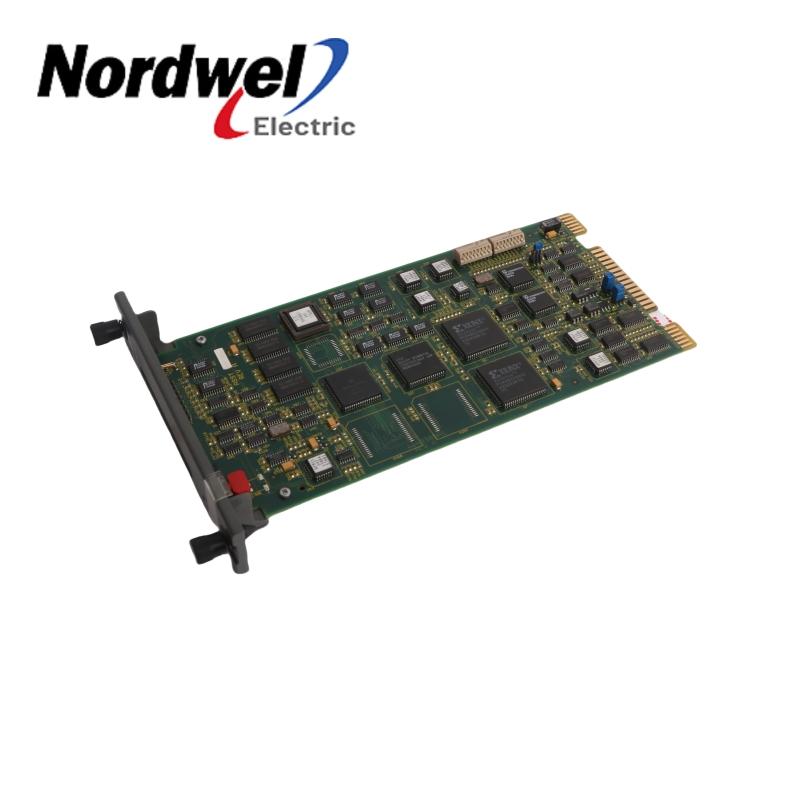

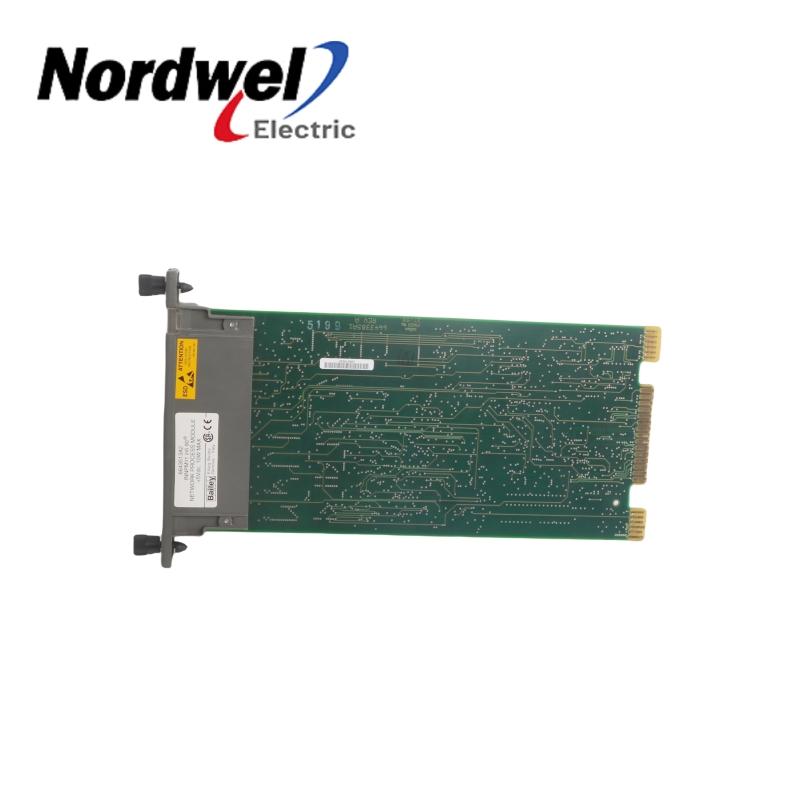

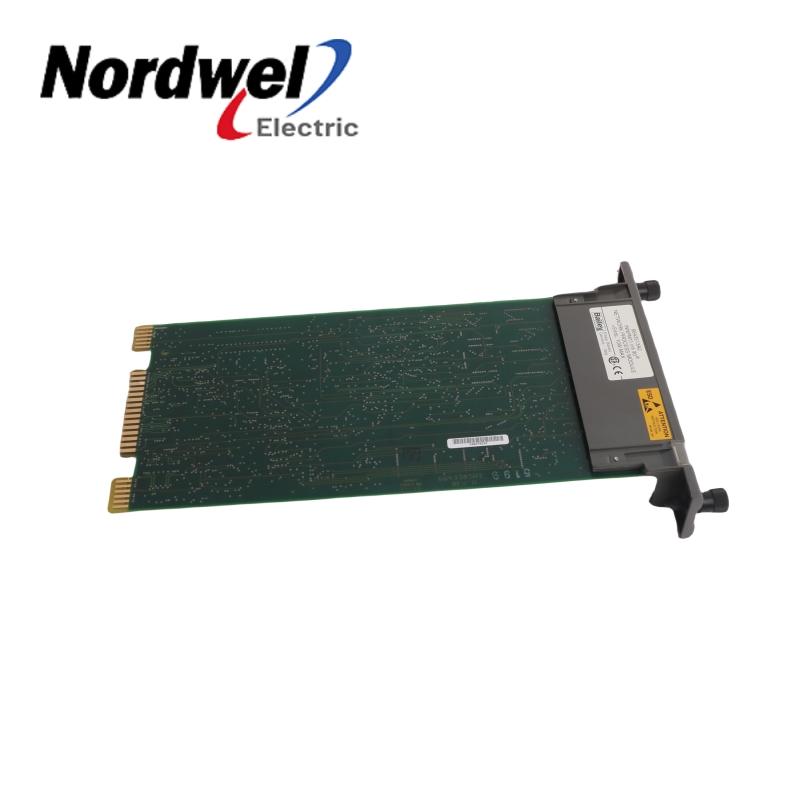

Model: INNPM11
Brand: ABB
Condition: Brand New and Origin
Memory: 256KB ROM, 512KB RAM.
Power Requirements: + 5VDC, 2A, 10W.
Communication Rate: 1Mbaud for Control Way, 83.3kbaud for Module Bus.
Operating Temperature: 0°C to 70°C ambient.
Humidity Range: 5% to 90% (up to 55°C), 5% to 40% (over 55°C), non-condensing.
Atmospheric Pressure: Sea Level to 3km.
Inquiry： Jenny Chan E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
—— Feature：
Air Quality: No corrosive gases.
Reliable module integrity: Designed to maintain the integrity of the module, ensure reliable operation, and safeguard the stability and continuity of the industrial control system.
Powerful network interface function: Works with the INNIS01 network interface slave module to provide support for access to the INFI-NET® communication system, achieving efficient network communication and data transmission.
—— Application：
Efficient communication capabilities: With different communication rates to meet different control needs, the Control Way communication rate can reach 1Mbaud, and the Module Bus communication rate is 83.3kbaud, which can quickly and accurately transmit control signals and data.
Compact installation design: It only occupies one slot in the standard INFI 90 open module installation unit, saving space and facilitating layout and expansion in the cabinet.
Strict environmental adaptability: CSA certified for use as process control equipment in ordinary (non-hazardous) environments, and Factory Mutual approved for use in Class I, Zone 2 hazardous locations, adapting to a variety of industrial environments.
