Part Number:
DSAX452Weight:
2.52 kgDimensions:
23.5cmX21.8cmX8.8cmManufacture Year:
2021Place of Origin:
SwedenCertification:
CO,CQDescription:

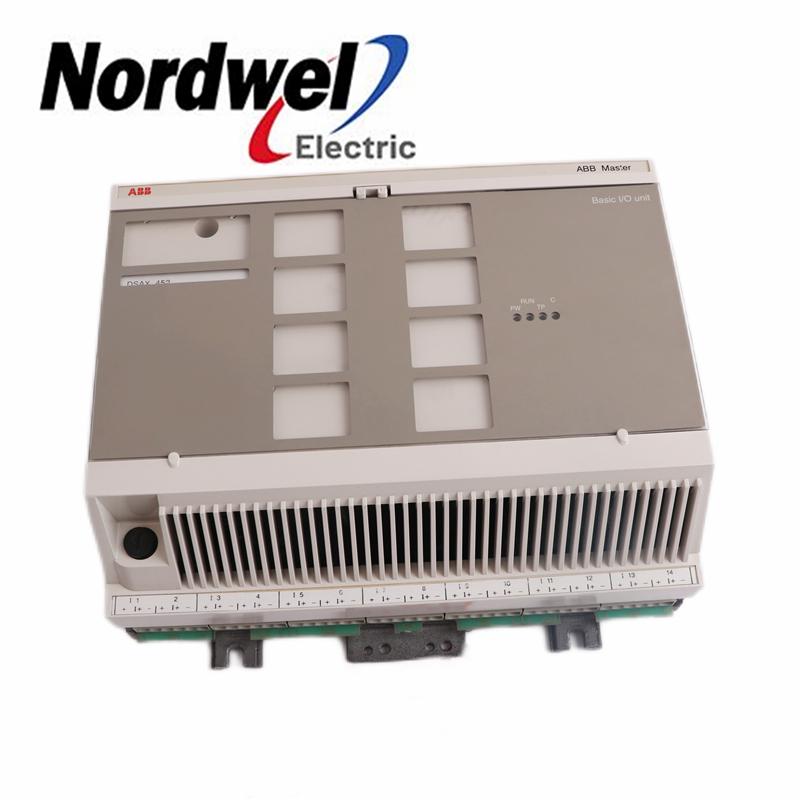

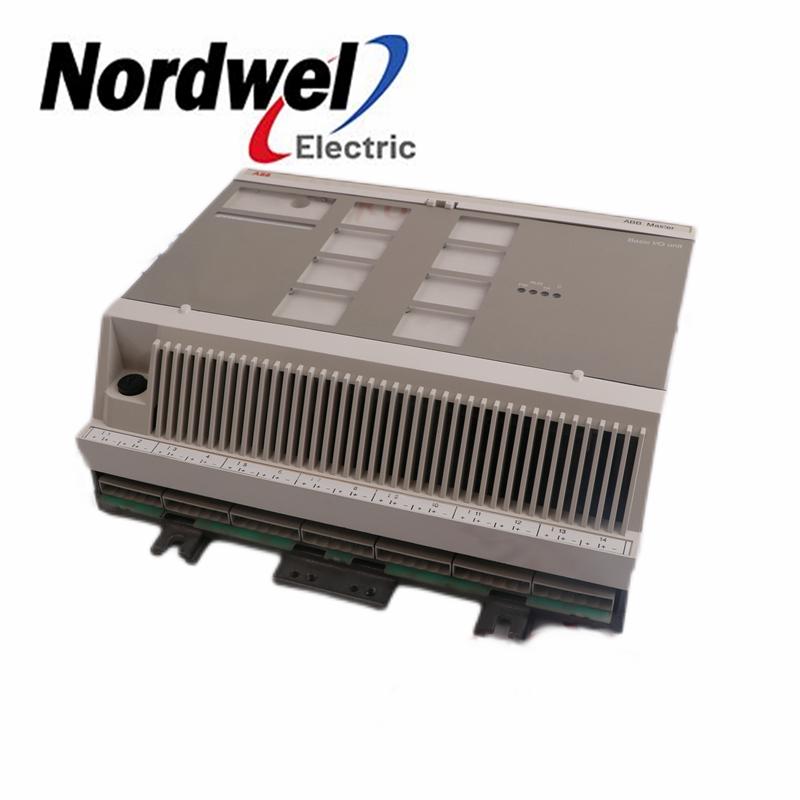

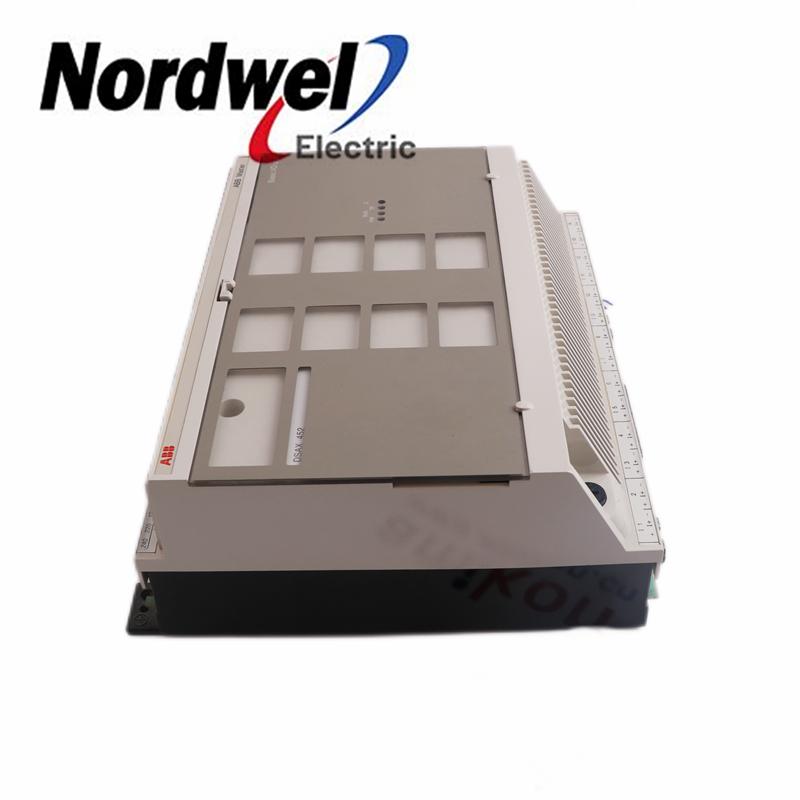

ABB DSAX452 Analog basic unit
|
Manufacturer: |
ABB |
|
Part Number: |
DSAX452 |
|
Description: |
ABB DSAX452 |
|
Full Description: |
ABB DSAX452 Analog basic unit
|
|
Status: |
In stock |
| Warranty | 12 Months |
DSAX 452 Analog basic unit
Number of inputs 14, Analog Can be jumpered as differential or single and for curren or voltage
Number of outputs 6, Analog Unipolar. Puts out current and voltage signals
Communication MasterFieldbus SDB
Monitoring Power loss, self-test when started, monitoring of communication
Indicators Operation, transducer power supply, A/D converter functioning
Expandable No
This is a combination unit for 14 analog inputs and 6 analog outputs for applications which
require considerable accuracy. You can ground the transducer and load if the difference in
potential between the load ground and the DSAX 452 ground is within the specification.
The equivalent resistance caused by the ground voltage drop and the load resistance concerned
together is not to exceed 650 Ω with a current signal, ≤ 20 mA.
Both inputs and outputs can suppress moderate CMV in the range ±10V for voltage input and
±20 V for current input. This means, in practice, that you can ground the transducer and load
freely within a geographically limited area in which the difference in ground potential is within
the specification.
The unit has an integrated voltage source providing d.c. 24 V for transducer supply. The voltage
is fused. This supply can also be used for supply to the outputs which can then drive a current
signal through a load of 650 Ω. Additionally the outputs can be supplied from an external supply
unit. You can then increase the load resistance for the current signal towards 1000 Ω.
