Payment:
T/TPart Number:
DSQC500 3HAC3616-1Weight:
0.6kgDimensions:
30x10x1mManufacture Year:
The latest yearPlace of Origin:
SWEDENCertification:
COODescription:
Module
Parameters

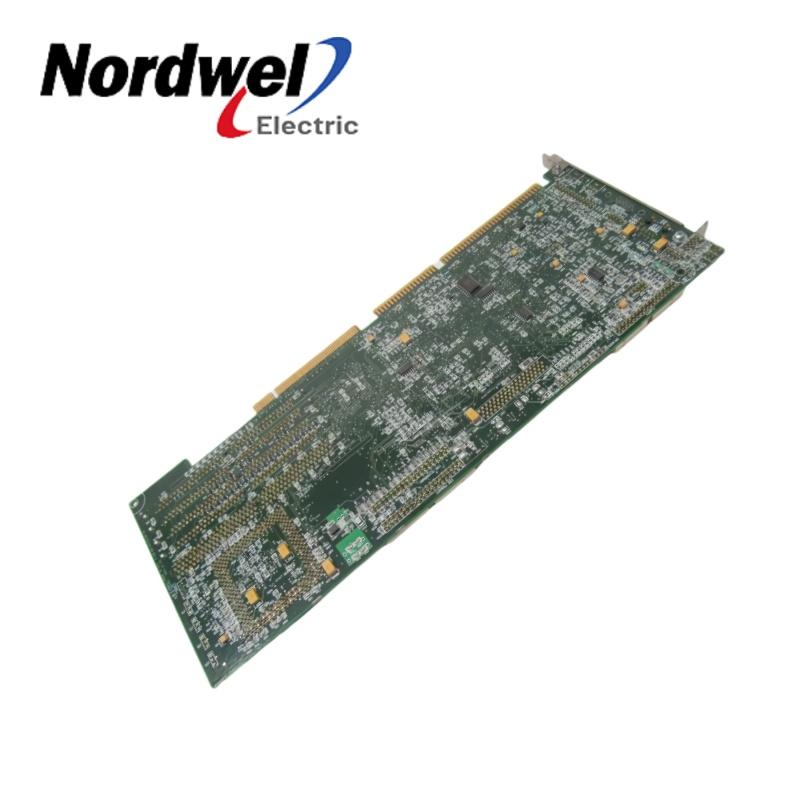

Model: DSQC500 3HAC3616-1
Brand: ABB
Condition: Brand New and Origin
Working voltage: +5V module bus typical current consumption 50 mA, +24V module bus current consumption 0, external current consumption +24V is 0.
Power consumption: typical value 2.8W.
Diagnostic function: with front indicator light f (ault), r (un), w (arning), can display channel 1-16 status, supervision of each group can use process voltage, channel 1 and 8, supervision status indication module error, module warning, channel error.
Jenny Chan
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
Environmental adaptability: operating temperature range 0 to + 55°C, storage temperature - 40 to + 70°C, relative humidity 5 to 95% non-condensing, pollution degree 2, protection level IP20, in line with relevant electrical safety standards such as IEC61131-2, UL508, etc., also has CE mark and ship certification ABS, BV, DNV-GL, LR, etc.
Interface type: includes a vertical pin terminal connector with six pins placed in the center of the circuit board, and two BNC Plug, whose opening is located at the top edge of the circuit board, can accept LAN coaxial cable.
Related Concerns
(1) Fault diagnosis method: The fault can be preliminarily judged by observing the indicator light status on the circuit board, such as the fault indicator light is on. At the same time, you can also use ABB's special diagnostic tools or software to connect to the system to view the working status of the CPU circuit board, the operation log, and whether there is any fault alarm information, so as to accurately locate and troubleshoot the fault.
(2)Repairability and difficulty of repair: Generally, it can be repaired, but due to its technical complexity and high requirements for professional knowledge and skills of maintenance personnel, it needs to be repaired by technicians with rich experience and professional qualifications. During maintenance, professional testing equipment and tools are required to carefully detect and analyze each component and circuit on the circuit board to find the fault point and repair it.
~. Large Inventory to ensure the faster shipment.
~. 24 hours a whole day to ensure the good service.
~. 12-month warranty to ensure you can get good shopping experience.
~. Brand New and Original to ensure your production run smoothly.
|
