Payment:
T/TPart Number:
SAFT 120 PAC 57411490 5761026-3PWeight:
1kgDimensions:
40x32x8cmManufacture Year:
The latest yearPlace of Origin:
SWEDENCertification:
COODescription:

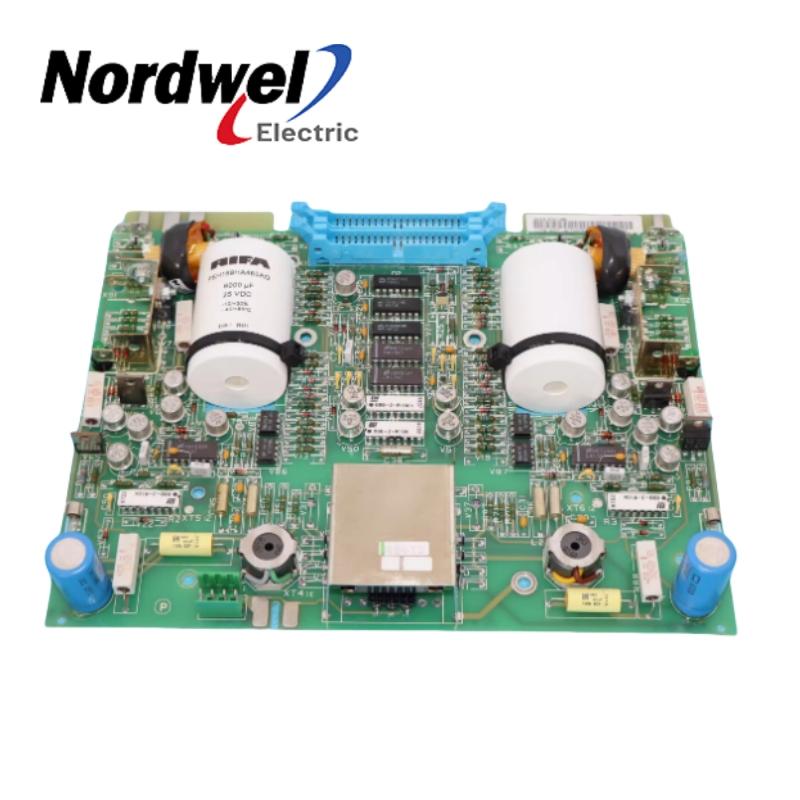

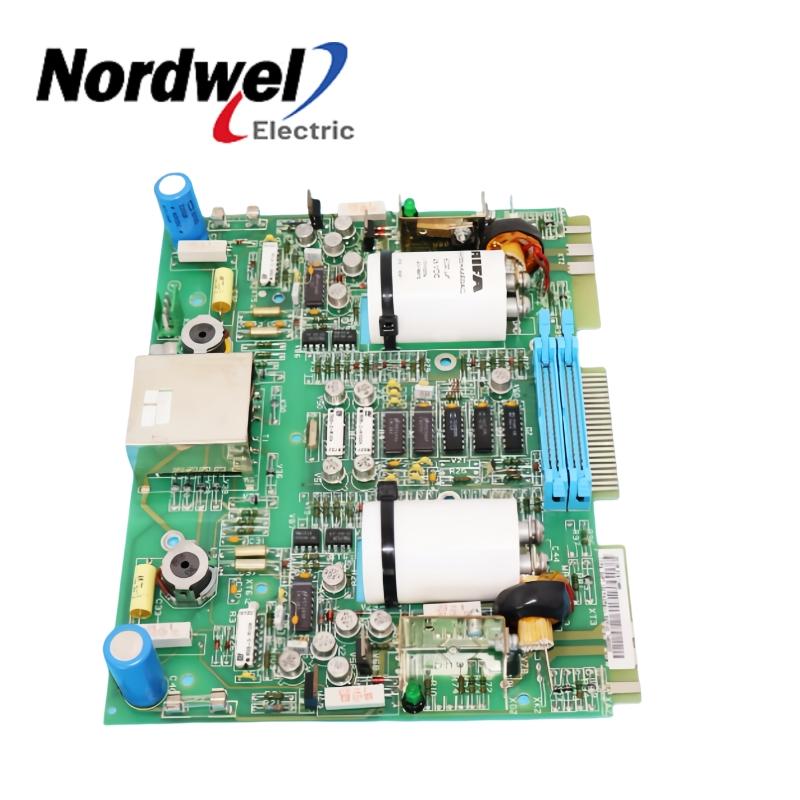

Stromberg Pulse Amp Board
Parameters
Model: SAFT 120 PAC 57411490 / 5761026-3P
Brand：ABB
Country Of Origin: Sweden
Condition: Brand New and Origin
Input signal: Pulse signal, supports multiple pulse input formats
Output signal: Enhanced amplified pulse signal, providing high current driving capability
Power supply voltage: 24V DC
Power consumption: < 10W
Operating temperature: -25°C to +70°C
Storage temperature: -40°C to +85°C
Response time: Fast response, suitable for high-speed signal processing
Installation method: Board type, supports installation in a cabinet or control box
Interface type: Standard industrial signal interface, supports compatibility with other ABB control systems or third-party devices
Contact
Sales Person: Jenny Chan
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
Pulse input range: Supports multiple input voltage ranges, commonly 0-24V
Output drive capability: Provides up to 100mA output current, supports direct driving of industrial equipment or control of high-power loads through intermediate relays
Signal amplification factor: Adjustable amplification, automatically adjust the output according to the input signal amplitude
Signal delay: extremely low latency, ensuring real-time data transmission and processing
Anti-interference ability: excellent anti-electromagnetic interference (EMI) and power interference ability, ensuring stable operation in industrial environments
Insulation voltage: 1500V AC, ensuring safe isolation between signal input and output
Overload protection: integrated overload and short-circuit protection to avoid equipment damage due to overload
FAQ
Q: What types of input signals does the ABB SAFT 120 PAC pulse amplifier support?
A: The amplifier supports a variety of pulse signal inputs, mainly including 0-24V digital pulse signals, which can be used for sensor signals, control signals, etc.
Q: What is the output current capacity of this module?
A: The ABB SAFT 120 PAC can provide an output current of up to 100mA, which is suitable for driving small and medium-sized actuators or controlling high-power devices through relays.
Q: What is the operating temperature range of this amplifier?
A: The operating temperature range of the amplifier is -25°C to +70°C, which is suitable for most industrial environments.
Q: Does the SAFT 120 PAC support anti-electromagnetic interference?
A: Yes, the module has excellent anti-electromagnetic interference performance, ensuring the stability of signal transmission in industrial environments with complex electromagnetic environments.
Q: Does the amplifier have an overload protection function?
A: Yes, the SAFT 120 PAC integrates overload and short-circuit protection functions, which can automatically protect the device when the current or voltage exceeds the normal range.
