Payment:
T/TPart Number:
SPASI23Weight:
0.42kgDimensions:
3.5x31.2x17.5cmManufacture Year:
The latest yearPlace of Origin:
SWEDENCertification:
COODescription:

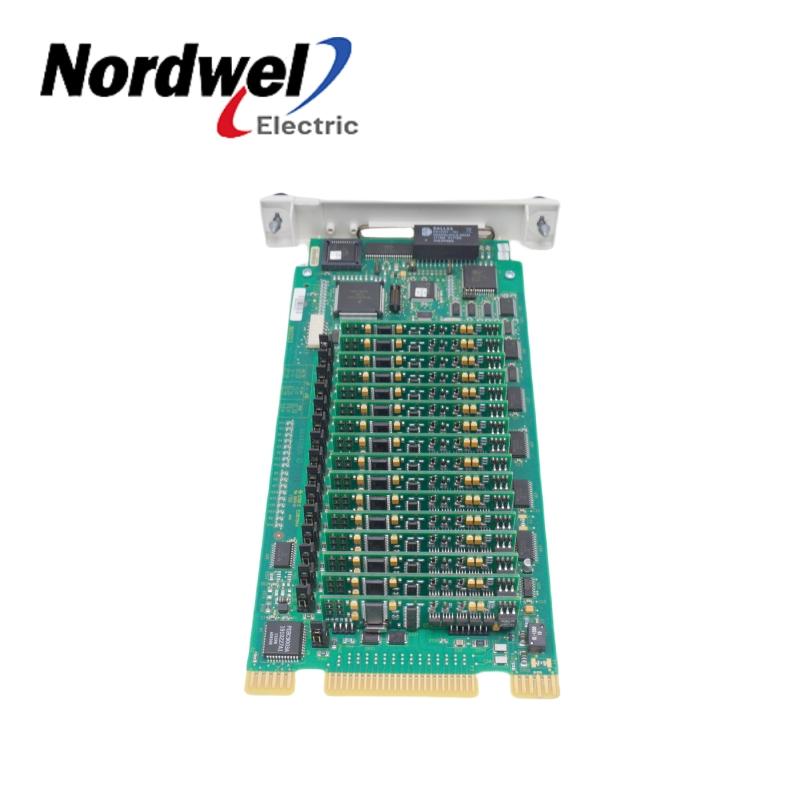

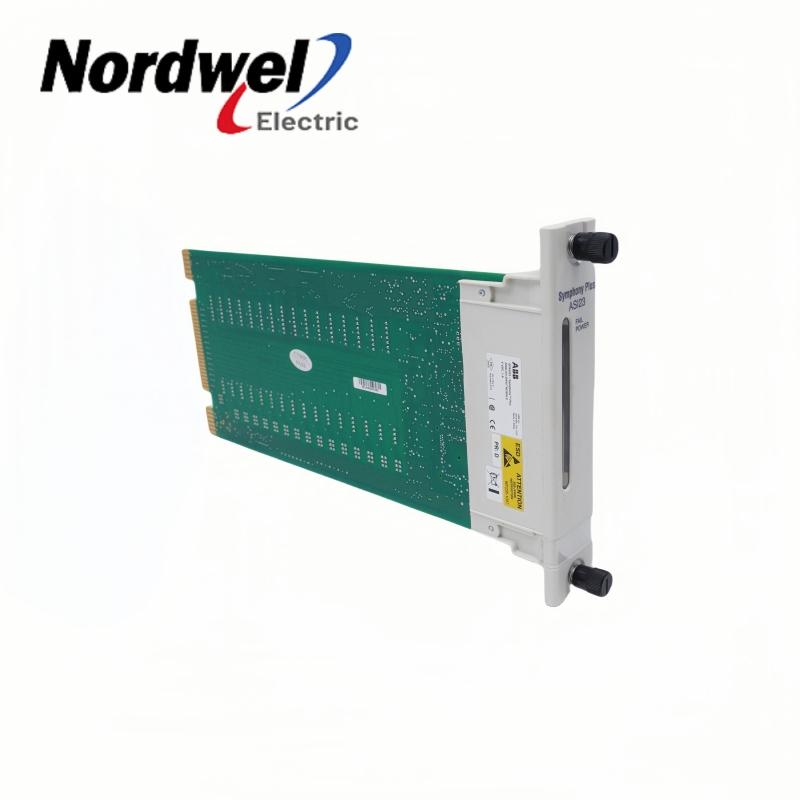

Analog Input Module
Parameters
Model: SPASI23
Brand：ABB
Country Of Origin: Sweden
Condition: Brand New and Origin
Input channels: 8 or 16 channels (optional)
Input signal type:
0-10V DC voltage signal
4-20mA current signal
RTD (thermal resistance) or thermocouple signal
Resolution: 16-bit ADC (analog-to-digital converter)
Accuracy: ±0.1% full scale
Scan cycle: 10ms (typical)
Isolation: Each channel is isolated with an isolation voltage of 1000V
Power supply voltage: 24V DC (±10%)
Power consumption: 6W to 12W (depending on configuration)
Interface type: Pluggable terminal for electrical connection
Diagnostic function: Provides open circuit, short circuit and fault detection
Contact
Sales Person: Jenny Chan
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
High precision and high resolution: The 16-bit ADC ensures high-precision conversion of analog signals, suitable for industrial control processes with high requirements for data accuracy.
Multiple input signal support: Whether it is standard voltage, current signal, or temperature sensor input, SPASI23 is compatible and provides accurate reading and processing.
Fast response and real-time performance: The fast scanning cycle of 10ms enables it to respond quickly to changes in process variables, especially suitable for control applications with high response time requirements.
Related Concern
Q: What signal types does the SPASI23 analog input module support?
A: The module supports voltage signal (0-10V), current signal (4-20mA), RTD (thermal resistance) and thermocouple signal input.
Q: What is the isolation voltage of the module?
A: Each input channel of SPASI23 has 1000V electrical isolation to ensure that the signals between channels are not interfered.
Q: What is the scanning cycle of the module?
A: The typical scanning cycle of the module is 10ms, which can quickly respond to changes in input signals.
Q: How to install the SPASI23 module?
A: The module is designed as a modular structure, which is easy to integrate into the existing Symphony Plus system and can be installed through standard racks or rails.
