Part Number:
135813-01Weight:
0.36kgDimensions:
2.5cmX11.2cmX24.2cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

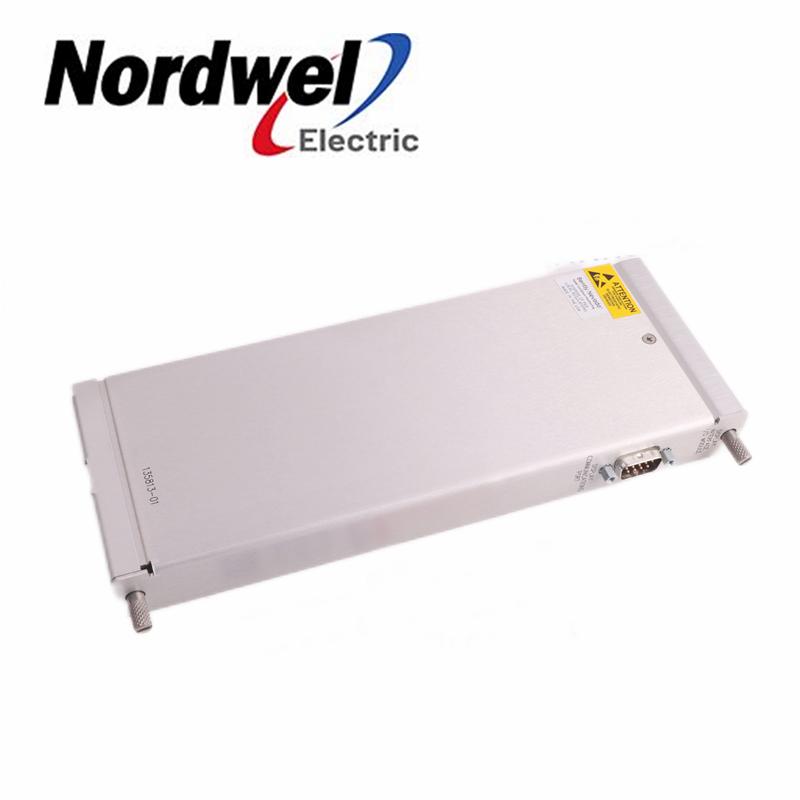

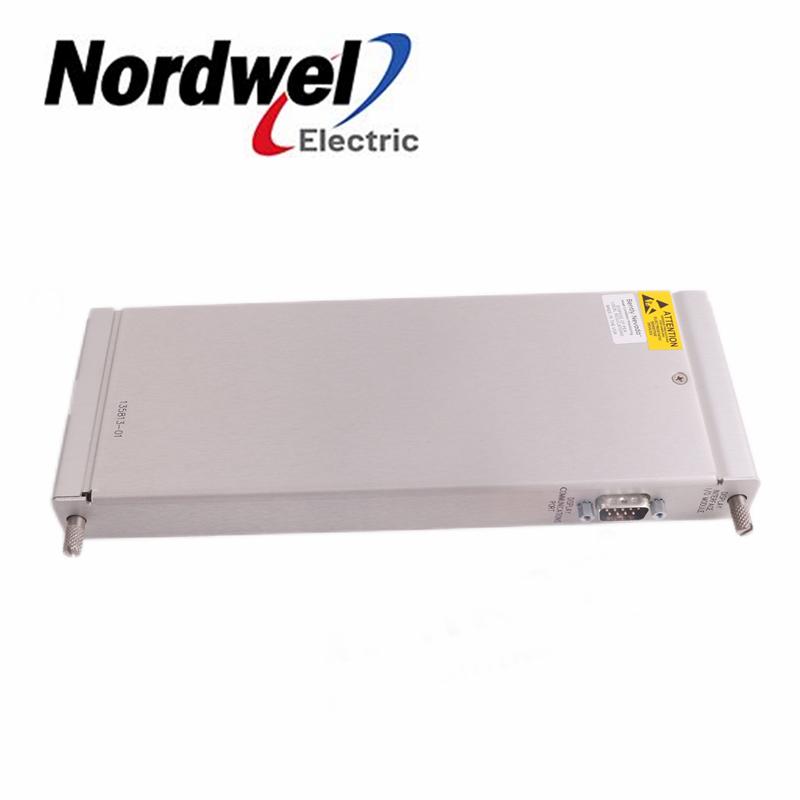

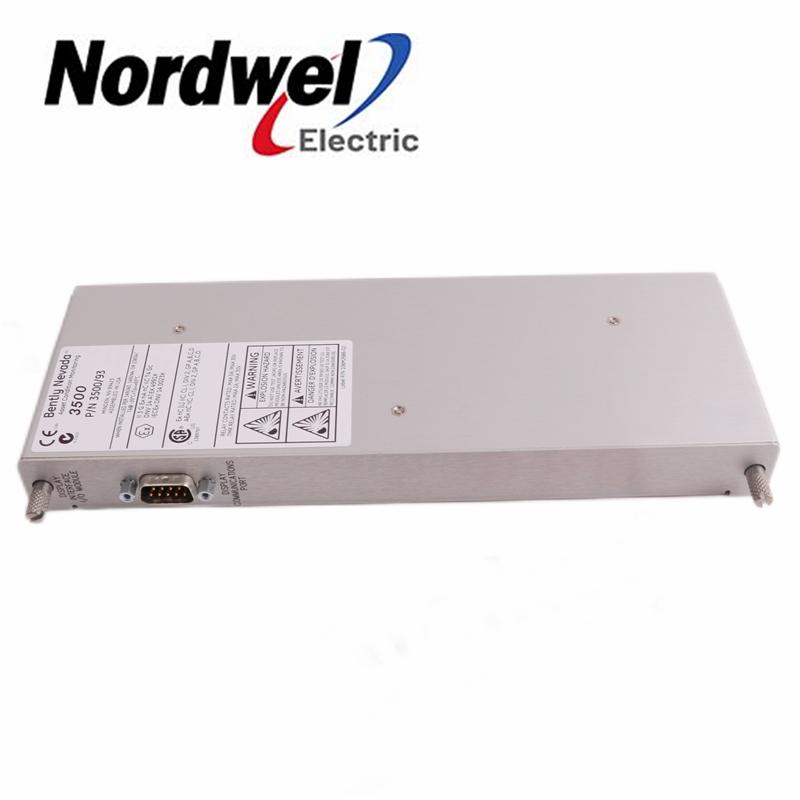

Bently Nevada 135813-01 Display Interface I/O Module
Part Number: 135813-01
Manufacturer: GE/Bently Nevada
Status: In stock
Series:3500/93 System Display
Full description: GE/Bently Nevada 135813-01 Display Interface I/O Module
Features:
Local or Remote Visual Indication of 3500 Machinery Protection System
(4) Display Mounting Types
Up to (2) Displays per 3500 Rack
The GE / Bently Nevada 3500/93 Series System Display is designed to meet the requirements of American
Petroleum Institute Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection
System information residing in the rack including: system event list, alarm event lists and all channel, monitor, relay
module, Keyphasor module or Tachometer Module data.
The 3500/93 System Display is configured using 3500 Rack Configuration Software. The display can be mounted in
any of four ways: face mounting, 19-inch EIA rack mounting, panel mounting, and independent mounting.
Up to two displays can be connected to each 3500 rack and each display requires one empty 3500 rack slot for
insertion of its corresponding DIM. When the display is not face-mounted, the cable connection between the DIM
and the Display can be made from the front of the 3500 rack or from the I/O module at the rear of the rack.
