Part Number:
330851-02-000-050-50-00-05Weight:
0.21kgDimensions:
15x8x9cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

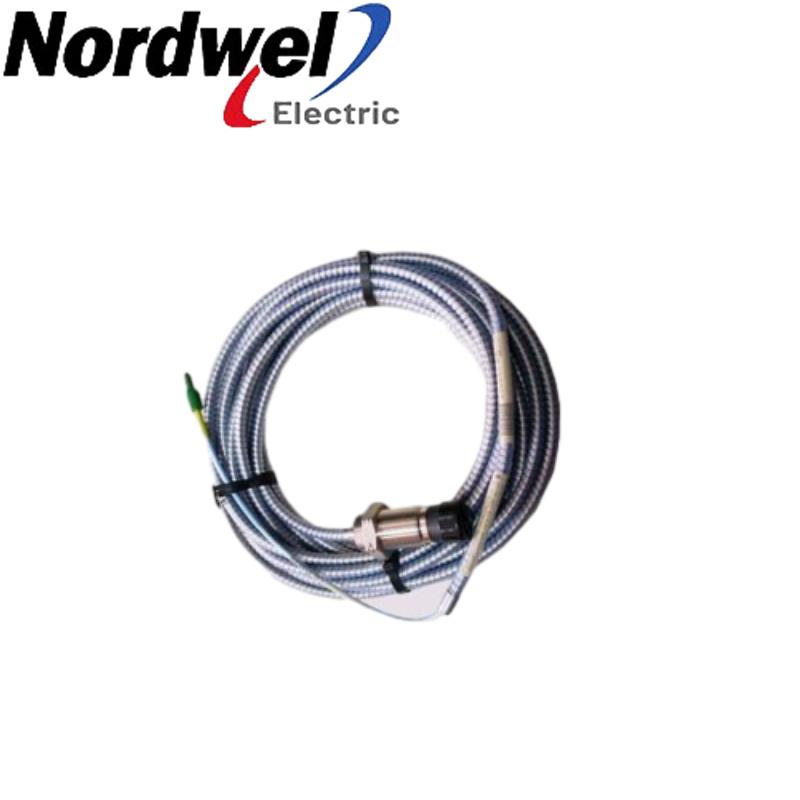

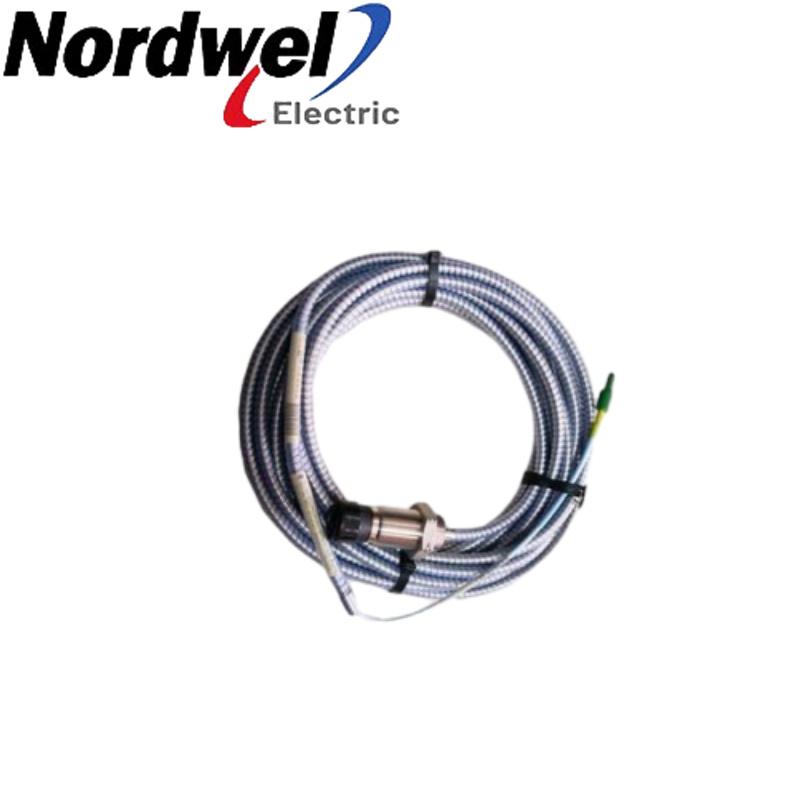

BENTLY NEVADA 330851-02-000-050-50-00-05 3300 XL 25mm Proximity Transducer
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Mobile / WhatsApp : +86-18030235313
Email: sales2@mooreplc.com Skype : dddemi33
Manufacturer |
Bently Nevada |
Part number |
330851-02-000-050-50-00-05 |
Description |
BENTLY NEVADA 330851-02-000-050-50-00-05 3300 XL 25mm Proximity Transducer |
ITEM NO: 330851-02-000-050-50-00-05
ORDER(MOQ) 1.
PAYMENT: T/T (Telegraphic Transfer)
PRODUCT ORIGIN: USA
COLOR: Brand new
SHIPPING PORT: Xiamen
LEAD TIME: In stock
The 3300 XL 25 mm Transducer System consists of a separate25 mm probe, an extension cable, and a 3300 XL 25 mmProximitor Sensor. The 0.787 V/mm (20 mV/mil) output givesthis system a linear range of 12.7 mm (500 mils). Based on thislinear range, the 3300 XL 25 mm Transducer System is suitablefor measuring differential expansion (DE) on mid-size to largesteam turbine generators caused by the difference in growthrates between the turbine rotor and the machine stator(casing).
The Differential Expansion measurement is made by twoproximity transducers observing a collar or ramp somedistance from the thrust bearing. Typical transducer mountingarrangements are:l Two transducers observing the same side of a collar.l Two complementary input transducers observingopposite sides of a collar, effectively doubling themeasurable DE range.Two transducers with at least one transducer viewing a rampon a rotor and the second transducer viewing either a separateramp or a different location on the rotor to compensate forradial movement. This arrangement adds some error to themeasurement, but can measure a longer total DE distance thanthe complementary measurement.
We offer our customers the assurance that they can always count on us when they need us.
We are an ally in solving your problem and ensure that companies can move on.
We do this by having the right products in stock, delivering quality, thinking along and going that extra mile.
MISSION |
To supply the manufacturing world with industry-leading parts, service and speed. And ensure that manufacturers across the world can avoid unnecessary downtime. |
PRODUCTS |
We maintain a large in-house inventory and also work as a distributor with a number of suppliers to bring you the best solution for your needs. |
SERVICE |
Experienced account managers and after sales support teams mean that you are kept constantly informed, and any queries are answered by a native speaking member of staff. |
DELIVERY |
Fast shipping to provide you with the best solution to meet your urgent needs If we don't have the stock request quotation you need, we can usually find it for you.
|
