Part Number:
330930-065-04-05Weight:
0.2kgDimensions:
20.5x22.4x3.3cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:

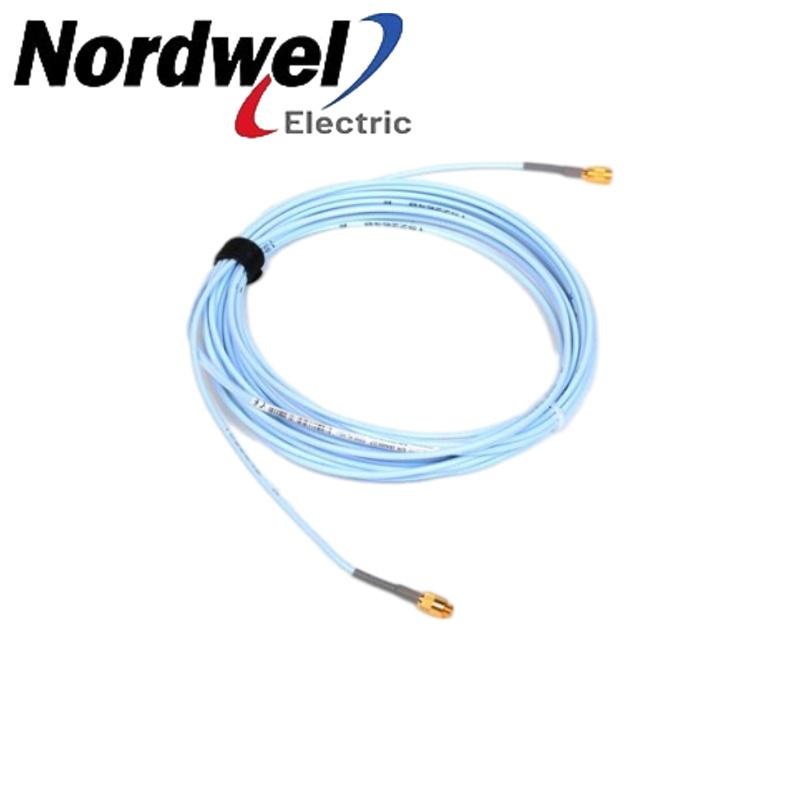

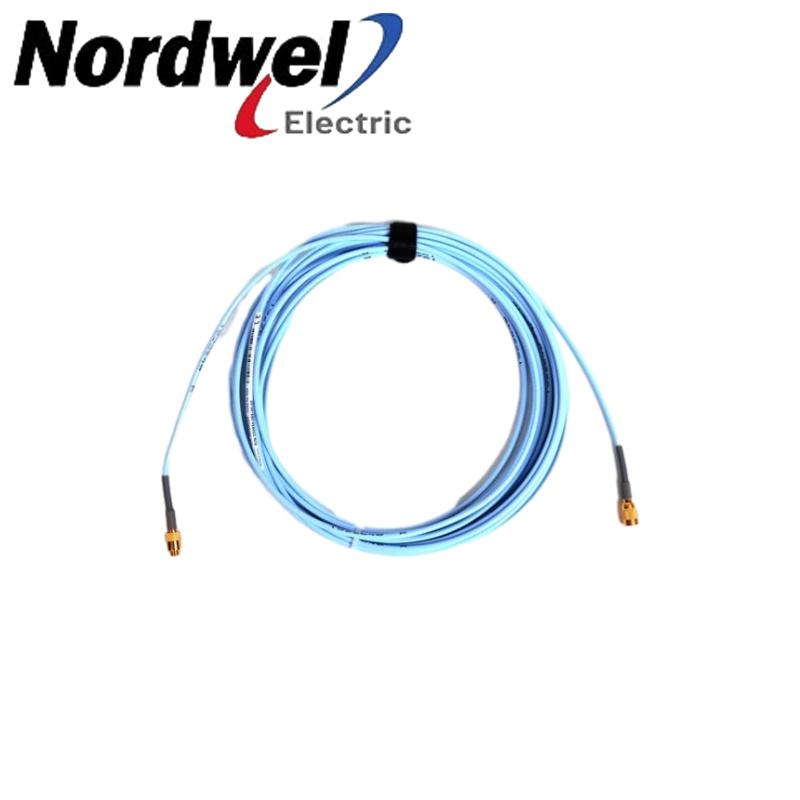

Bently Nevada 330930-065-04-05 NSv Extension Cable
Our products have all passed quality testing
Our products can be shipped to various parts of the world
Click here Email: sales2@mooreplc.com for a quick quote!!!
Call us ！！！We are professional
Sales manager : Tiffany Guan
Email: sales2@mooreplc.com
Mobile / WhatsApp : + 86 18030235313
Skype : dddemi33
Bently Nevada丨330130-085-13-05丨Proximity Probe
|
Product Describe: |
|
|
Brand |
Bently Nevada |
|
Part Number/Catalog No. |
330930-045-04-05 |
|
Product Type |
NSv Extension Cable |
|
Payment |
T/T,100% advance payment |
|
Shipping Port |
Xiamen,China |
|
Lead Time |
In stock |
Estimated Lead Time : 8 - 12 weeks.
Manufacturer : Bently Nevada
Product No. : 330930-045-04-05
Product Type : 3300 NSv Extension Cable
Made in U.S.A
Features:
The Bently Nevada 3300 XL NSv Proximity Transducer System is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
• a 3300 NSv probe
• a 3300 NSv extension cable
• a 3300 XL NSv Proximitor Sensor.
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
• Radial vibration and radial position measurements
• Axial (thrust) position measurements
• Tachometer and zero speed measurements
• Phase reference (Keyphasor) signals.
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable and Proximitor Sensor with NSv components.
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
Welocome to inquiry!
