Payment:
T/TPart Number:
3500/32Weight:
0.6kgDimensions:
45x45x3mManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module
Parameters

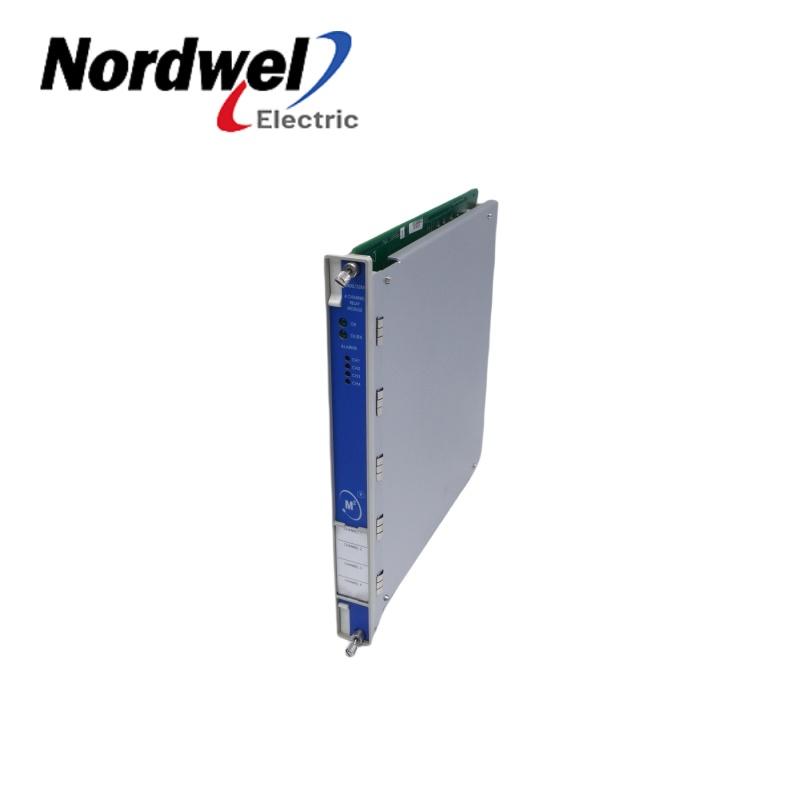

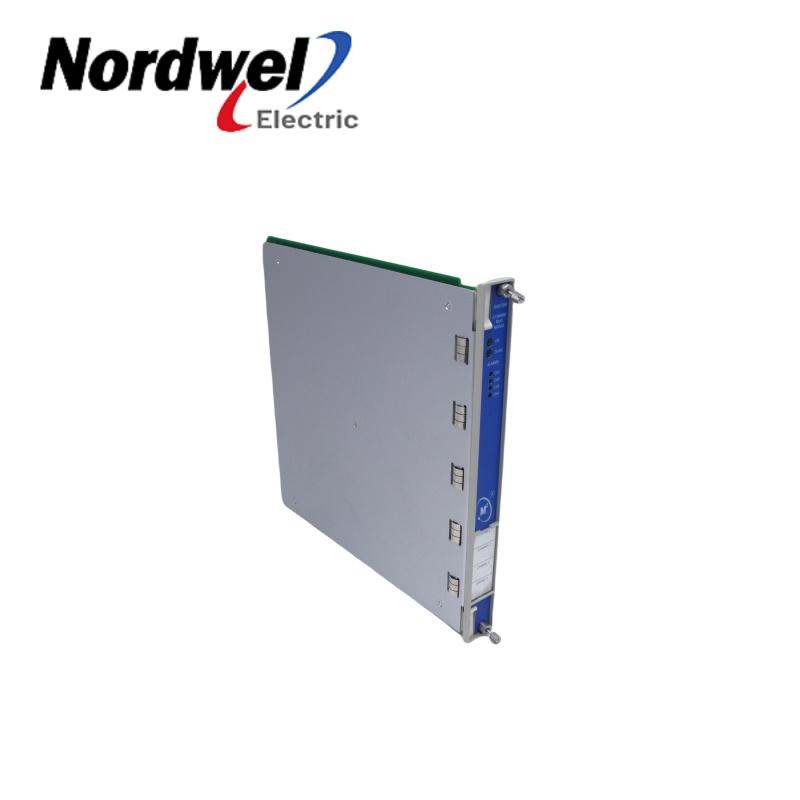

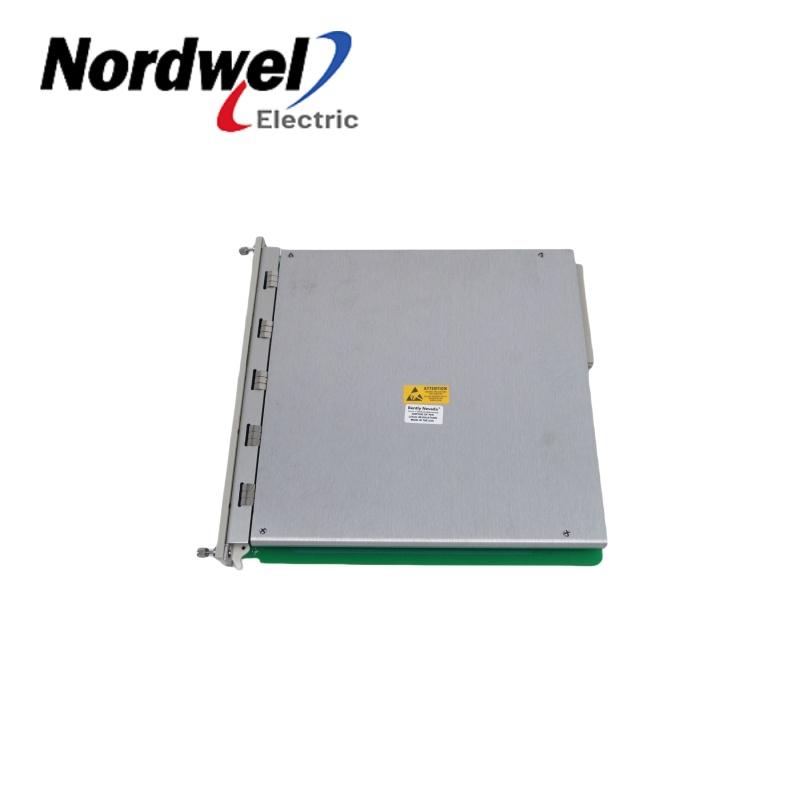

Model: 3500/32
Brand: Bently Nevada
Condition: Brand New and Origin
Power consumption: Typical value 5.8 watts, generally about 6 watts.
Relay type: Contains two single-pole double-throw (SPDT) relays connected together to form a double-pole double-throw (DPDT) form.
Contact life: 100,000 times @5A, 24Vdc or 120Vdc.
Arc extinguishing conditions: 250Vrms, standard installation.
Operating temperature: -30°C to + 65°C (-22°F to + 150°F), storage temperature -40°C to + 85°C (-40°F to + 185°F), humidity 95%, non-condensing.
Is this one not you want? Call Jenny Chan
>> E-mail: sales3@mooreplc.com >> Phone/Whatsapp/Skype: +86 18020714662
Feature
Operating mode and function: Output and programming: This module is a full-height module, providing four relay outputs, each of which can be independently programmed to perform voting logic to meet different control needs.
Alarm drive logic: Each relay contains alarm drive logic, which is programmed using AND and OR Logic, can use alarm inputs from any monitor channel or combination of monitor channels in the rack, such as alarm and danger status, programmed through the 3500 rack configuration software, can be flexibly configured to meet the specific alarm requirements of various applications.
Working Mode
Working status indication: There is an OK LED on the module, which flashes when the module is working properly; TX/RX LED is used for transmission and reception, and flashes when communication with other modules in the frame is normal; when the CH ALARM LED is on, it indicates that the relay channel is in alarm state.
Nordwel's Advantage
(1) 24 hours online
(2) Large Inventory
(3) 12-month warranty
(4) Brand New and Original
(5) 20-Year Exerience in Automation Area
|
