Payment:
T/TPart Number:
3500/32MWeight:
1kgDimensions:
40x39x2mManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module—》 Specifications

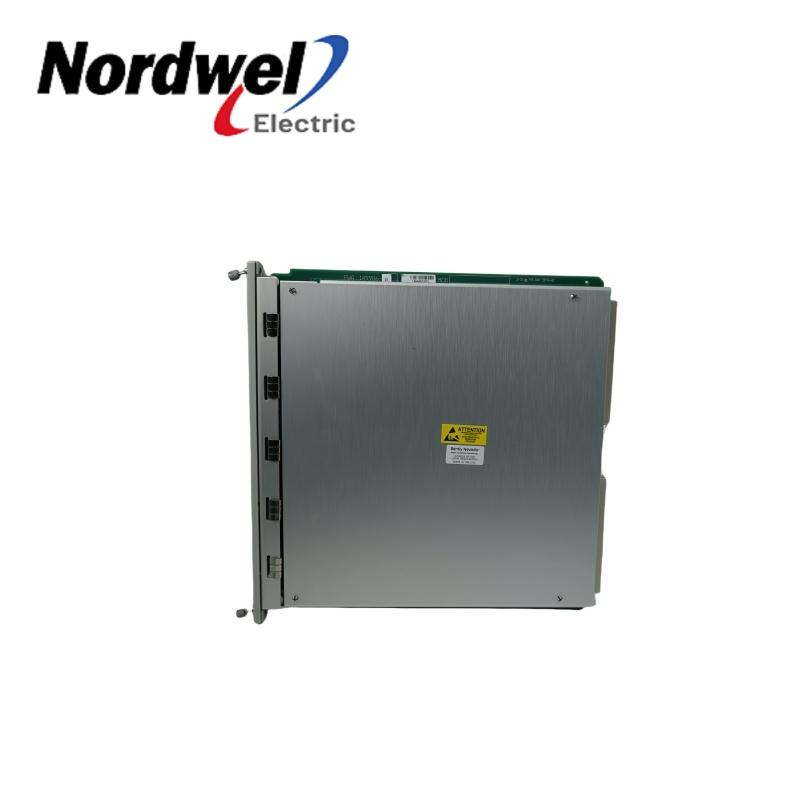

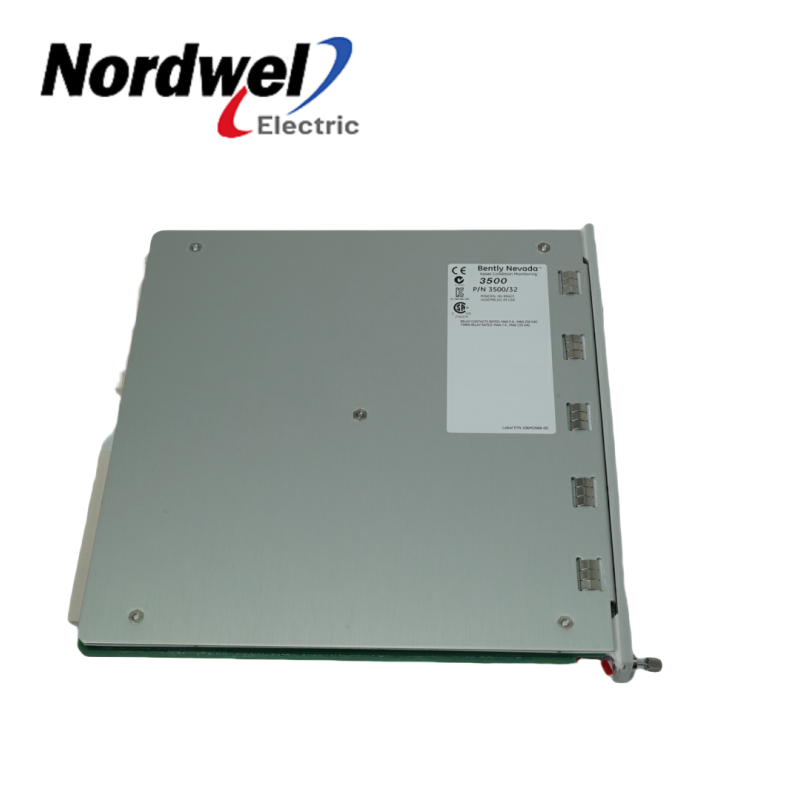

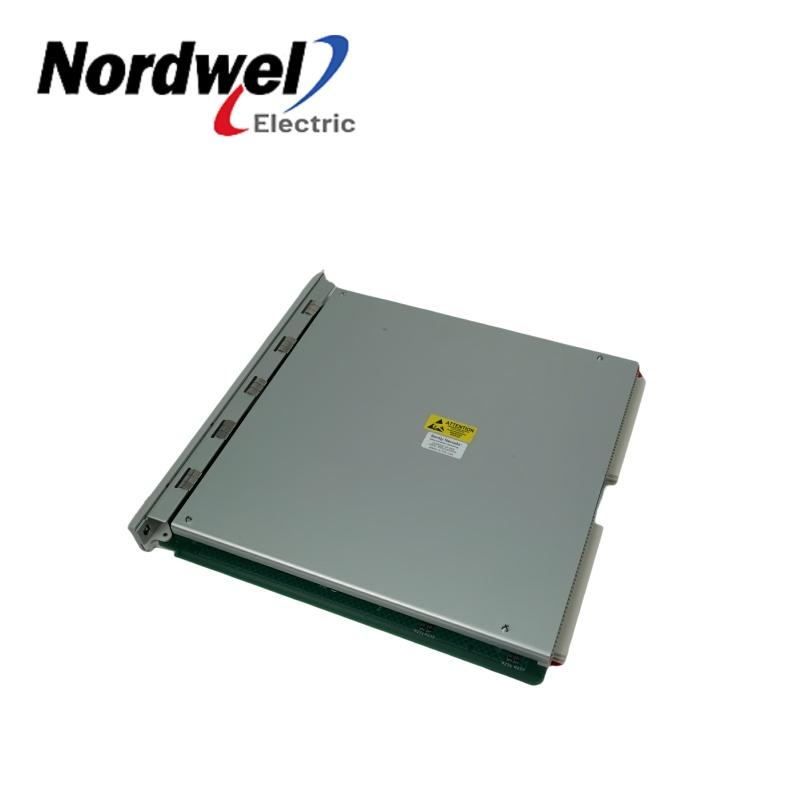

Model: 3500/32M
Brand: Bently Nevada
Condition: Brand New and Origin
Power consumption: generally 5.8-6 watts.
Relay type: single-pole double-throw (SPDT) relay is adopted, and two are connected together to form a double-pole double-throw (DPDT) form.
Sealing form: epoxy resin sealing, with good environmental adaptability, can effectively prevent dust, moisture, etc. from affecting the internal circuit, and ensure the reliable operation of the module in harsh industrial environments.
Arc extinguishing conditions: 250Vrms, standard installation, can effectively extinguish the arc when the relay is disconnected, reduce the arc erosion on the contacts, and extend the service life of the relay.
Contact life: 100,000 times @5A, 24Vdc or 120Vdc, ensuring the reliability and stability of the relay contacts during long-term use.
Operating temperature: -30°C to + 65°C (-22°F to +150°F), can adapt to a wide temperature range, can work normally under different industrial ambient temperature conditions.
Storage temperature: -40°C to +85°C (-40°F to +185°F), can also withstand large temperature changes during storage.
Humidity: 95%, no condensation, adapt to high humidity environment.
*** Jenny Chan ***
E-mail: sales3@mooreplc.com / Phone/Whatsapp/Skype: +86 18020714662
—》Feature
Independently programmed voting logic: Each output can be independently programmed to perform voting logic, allowing flexible customization of control logic based on specific application needs to meet control requirements under different operating conditions.
Alarm drive logic programming: Alarm drive logic is programmed using AND and OR logic and can use alarm inputs such as alarm and danger conditions, "uncertain" conditions, or single pulse signals from any monitor channel or combination of them on the rack. Users program alarm drives through the 3500 Rack Configuration Software to implement alarm functions for specific application scenarios.
—》 Working Mode
Multiple alarm logic types: Alarm drive logic is available in three common types: bus relay, relay, and independent relay. Bus relays can "OR" the warning or danger signals of all channels in the rack to drive a single relay; relays can "OR" the warning or danger signals of a channel pair in the monitor to drive a relay; independent relays can enable each alarm state from a channel to drive a separate relay.
Q: Is your product new or refurbished?
A: Yes, All our products are original new with one year warranty.
Q: If goods can't work. is it possible to cancel the order and refund?
A:
Q: Are you the agent ?
A: we are not Agent , but our goods totallly the same with them and cheaper price
Q: Are your price including shipping fee ?
A: No, my friend, our price is EXW China, do you need me check shipping fee?
|
