Payment:
T/TPart Number:
3500/33Weight:
0.8kgDimensions:
30x30x2mManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module
Parameters

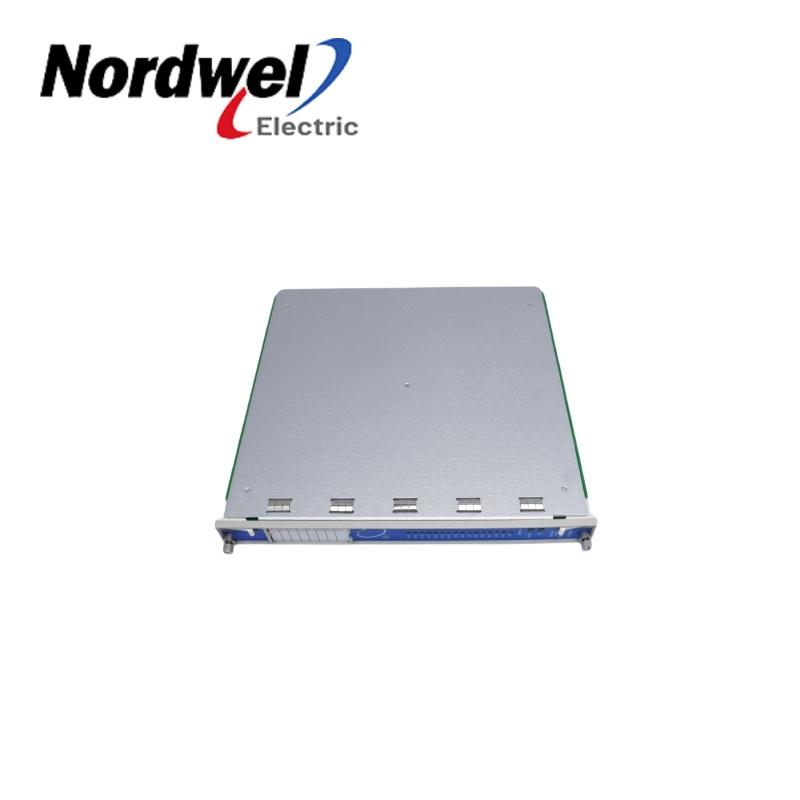

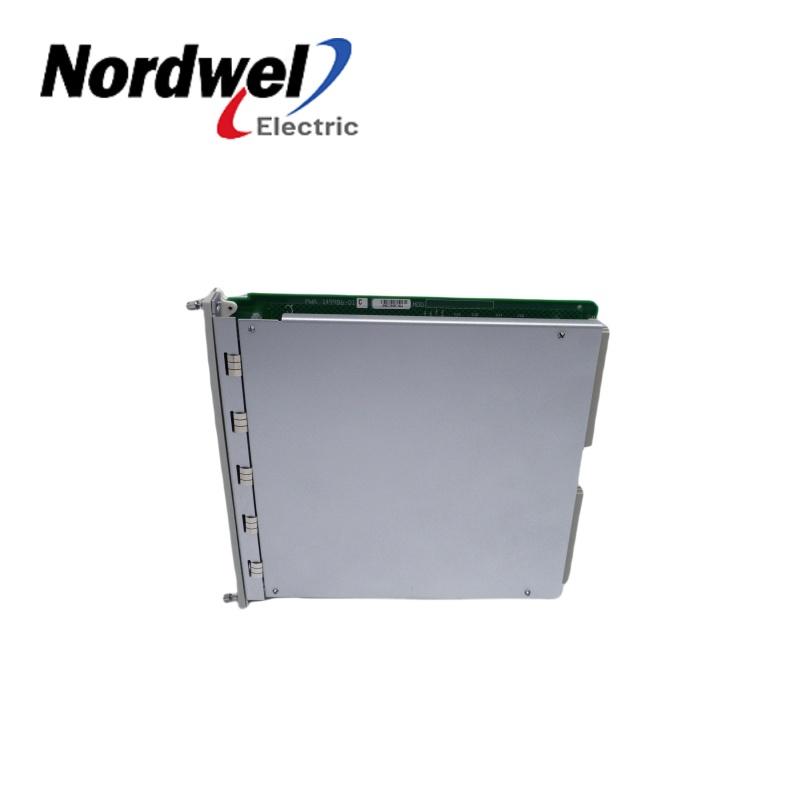

Model: 3500/33
Brand: Bently Nevada
Condition: Brand New and Origin
Power consumption: 5.8 watts typical.
Relay type: Single-pole double-throw (SPDT) relay.
Arc-extinguishing condition: 250Vrms standard installation.
Contact life: 100,000 cycles @ 5A, 24Vdc or 240Vac.
Operation mode: Each group of four channels, a total of four groups, can be selected as normally de-energized or normally energized through switches.
Jenny Chan 》》 E-mail: sales3@mooreplc.com 》》 Phone/Whatsapp/Skype: +86 18020714662
Feature

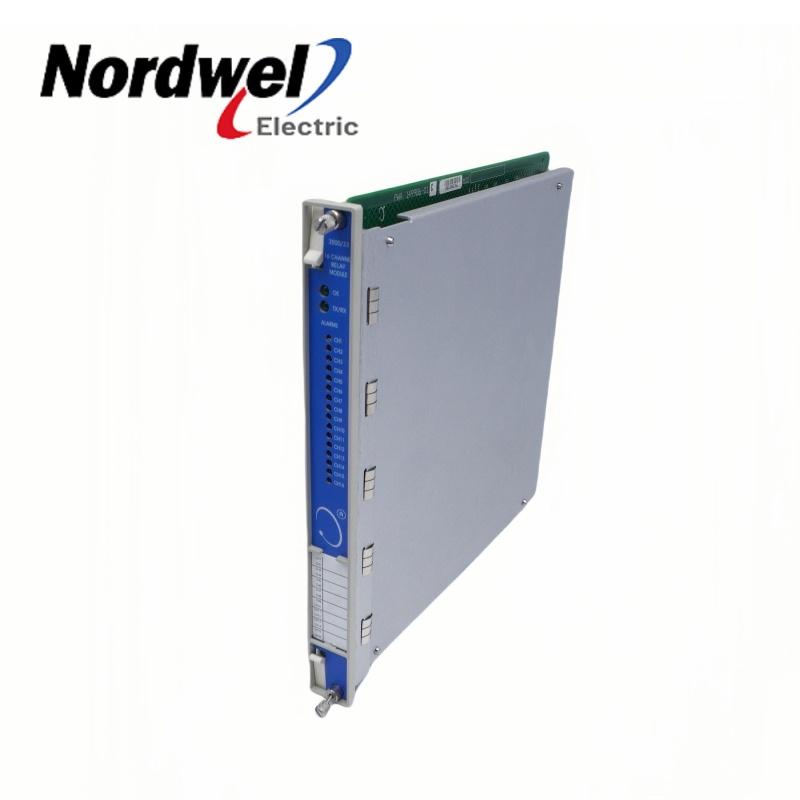

Input and output indication: The module has an OK LED, which lights up when the module is working normally; TX/RX LEDs are used for transmission and reception, and flash when the communication between the module and other modules in the frame is normal; CH alarm LED, which lights up when the relay channel is in alarm state.
Programmable logic: Each output can be independently programmed to perform voting logic. The alarm drive logic is also an integral part of each relay and can be configured through "AND" and "OR" using the frame configuration software. Logic programming can be used to flexibly configure the alarm input provided by any monitor channel or monitor channel combination in the framework.
Related Concerns
High reliability: The use of high-quality components and strict production processes ensures the reliability and stability of the relay channel, which can work stably for a long time; at the same time, it has epoxy resin sealing and can adapt to harsh industrial environments.
Easy to expand: As a full-height module, any number of this module can be placed in any slot on the right side of the transient data interface (TDI) module to meet the needs of systems of different sizes, and it is convenient to connect and control with other devices or systems.
