Payment:
T/TPart Number:
3500/40M 125680-01Weight:
0.5kgDimensions:
30x6x3mManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module~ >. Specifications . < ~

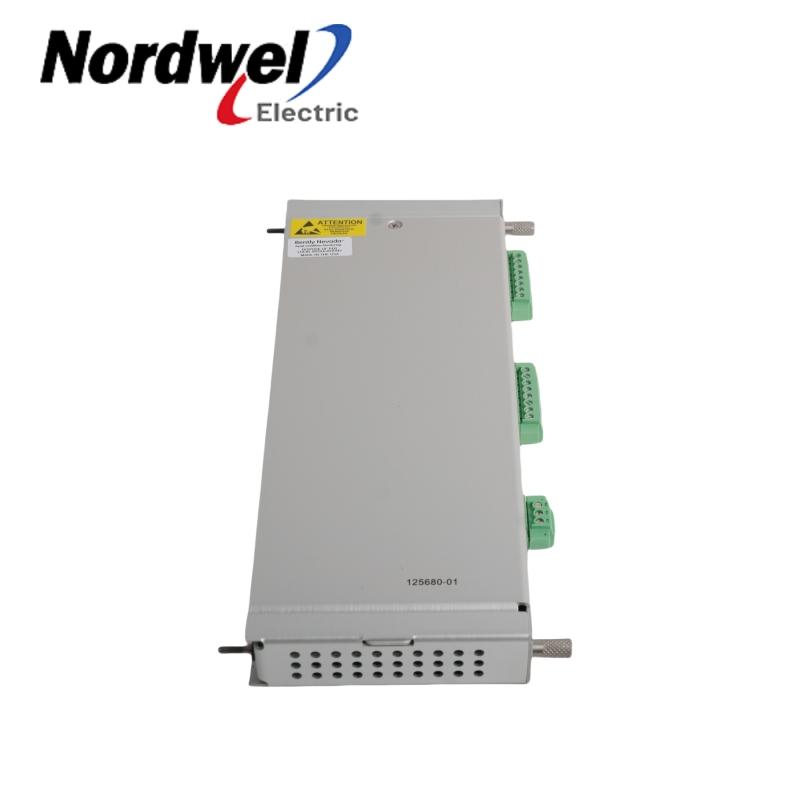

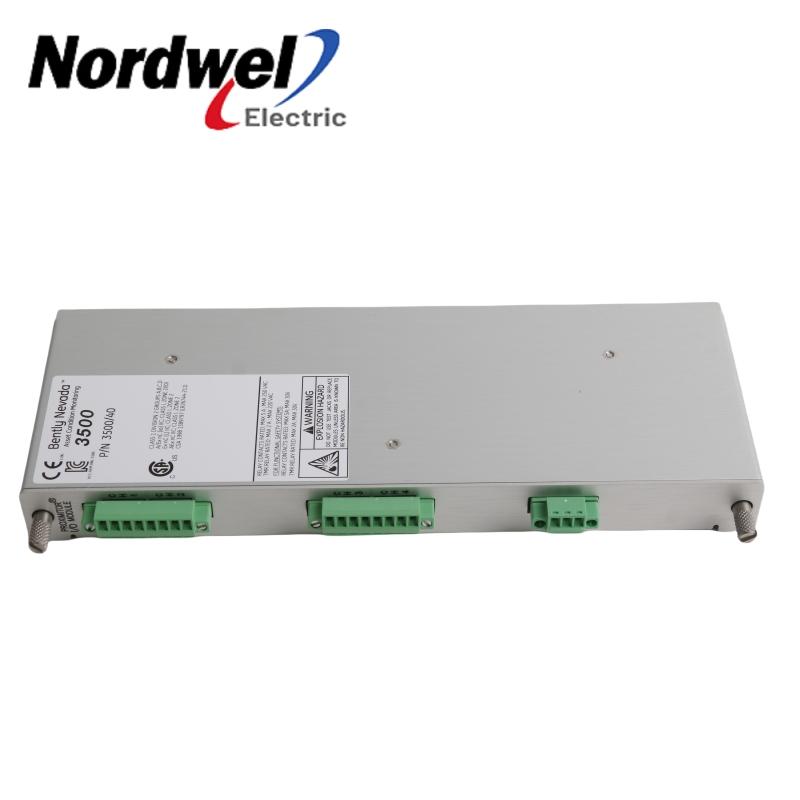

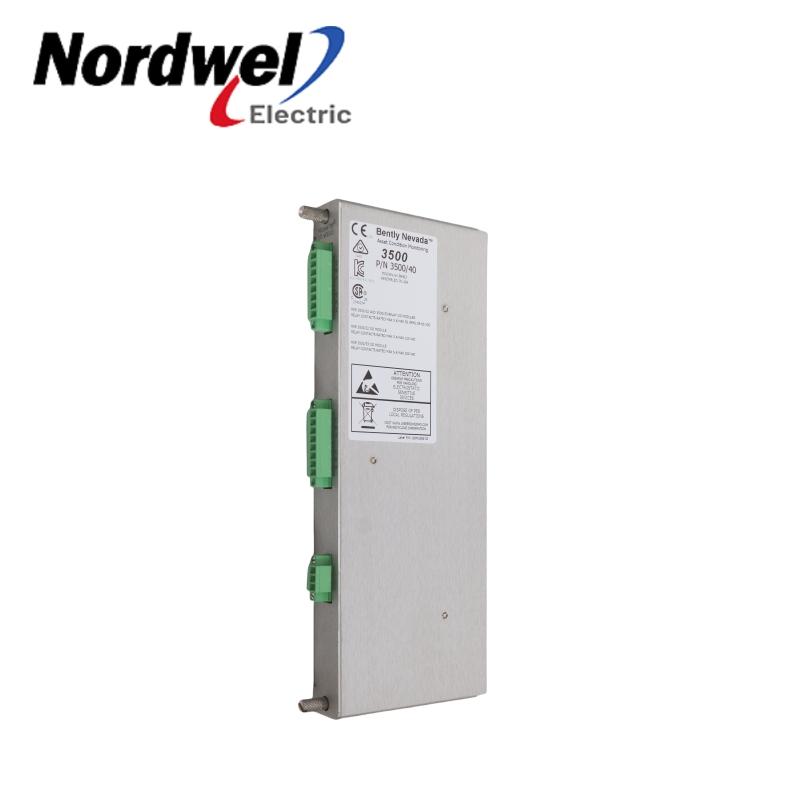

Model: 3500/40M 125680-01
Brand: Bently Nevada
Condition: Brand New and Origin
Input: Receives signals from 1 to 4 Bently Nevada displacement sensors, standard I/O input impedance is 10kΩ, TMR I/O three bused TMR I/Os paralleled to one sensor have an effective impedance of 50kΩ.
Power consumption: Rated power consumption is 7W.
Output: 550 ohm output impedance, shaft power supply - 24vdc, resolution 0.3662a/bit, sensor power supply - 24vdc, absolute output impedance 300ohms.
Signal Processing:
Temperature: 25 degrees Celsius.
Radial Vibration: User programmable direct filter, single pole, -3dB, 4Hz to 4000Hz or 1Hz to 600Hz, 1% accuracy; Gap filter: 0.09Hz, -3dB; Non-1x filter: Constant-Q notch filter, minimum rejection in stopband of -34.9dB, 60cpm to 15.8 times the operating speed, Smax varies from 0.125 to 15.8 times the operating speed; 1x and 2x vector filters: Constant-Q filter, minimum rejection in stopband of -57.7dB.
~ >. Sales Person . < ~
Jenny Chan E-mail: sales3@mooreplc.com Phone/Whatsapp/Skype: +86 18020714662
~ >. Related Concerns. < ~
（1）How to program channel functions: Each channel needs to be programmed using the 3500 frame configuration software. You can select the corresponding functions according to specific needs, such as radial vibration, thrust position, etc., and set the relevant parameters.
（2）How to set the alarm set point: The rack configuration software can be used to set the alarm level for any value measured by the monitor, and set the danger set point for any two values. The alarm set point ranges from 0% to 100% of the full scale of each measured value. When the full scale range exceeds the range of the sensor, the set point is limited by the sensor range.
（3）How is the compatibility with other monitoring systems: As part of the Bently Nevada 3500 series, it has good compatibility with other modules in the same series and Bently Nevada's sensors, etc., and can be easily integrated into the existing monitoring system to jointly build a complete industrial equipment monitoring solution
Q: Which country or area can be shipped to?
A: Worldwide.
Q: How do you ship goods?
A: By air.(DHL/TNT/UPS/FEDEX)
Q: How long is your delivery time?
A: Generally it is 2-3 days if the goods are in stock. If the goods are not in stock, Need to negotiate.
Q: Are you a trading company or manufacturer?
A: We are a trading company.
|
