Part Number:
991-06-50-01-00Weight:
0.44kgDimensions:
24.3 cm x 4.6 cm x 15.5 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

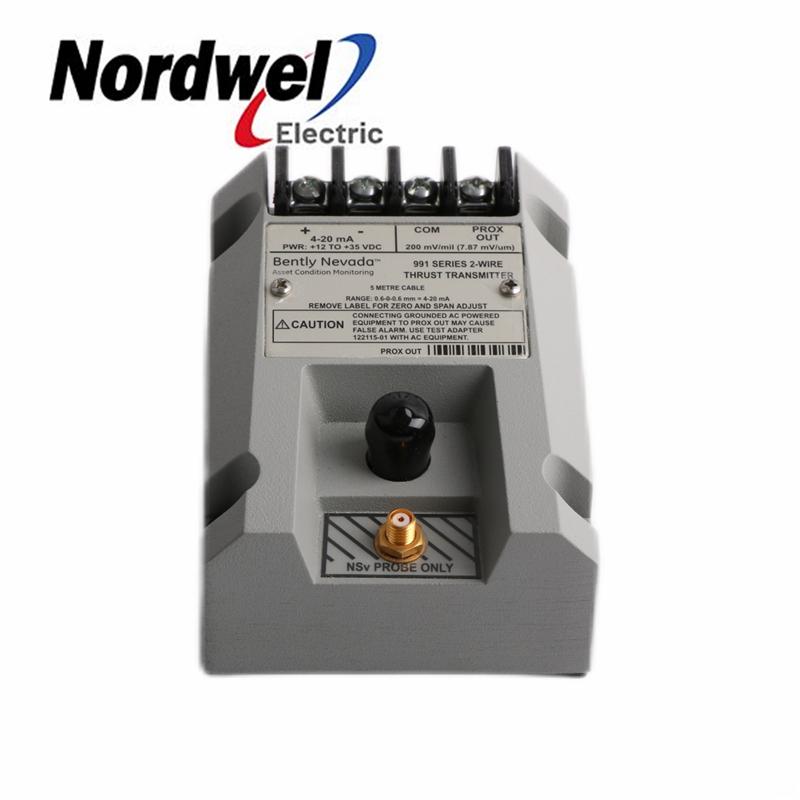

Bently Nevada 991-06-50-01-00 Thrust Transmitter
Part Number: 991-06-50-01-00
Manufacturer: GE/Bently Nevada
Series: Bently Nevada 991 Thrust Transmitter
Status: In stock
Full description:GE/Bently Nevada 991-06-50-01-00 991 Thrust Transmitter
The 991 transmitter provides the following notable features:
• Integrated Proximitor* Sensor requires no external unit
• Non-isolated “PROX OUT " and "COM" terminals plus a coaxial connector
provide a dynamic vibration and gap voltage signal output for diagnostics3.
• Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
• Test Input pin allows quick verification of loop signal output, using a variable DC voltage source as the input.
• A Power-up Inhibit circuit eliminates signal errors due to line voltage transients.
• A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a
faulty proximity probe or loose connection.
• Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.
• Potted construction for high humidity (up to 100% condensing) environments.
• Compatibility with 3300 NSv proximity probe allows transducer installation
in small areas with minimal clearance, typical of centrifugal air compressors.
