Part Number:
B0123HEWeight:
3 kgDimensions:
19.5cm x 17.5cm x 5.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

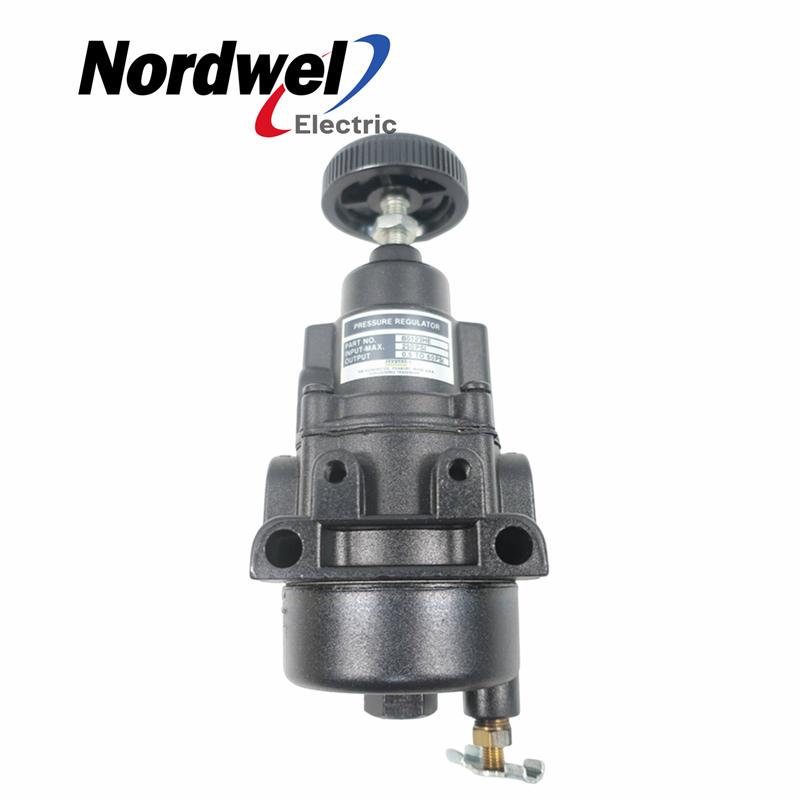

Foxboro B0123HE Adjustable Pressure Regulator with Filter
Part Number: B0123HE
Manufacturer: Foxboro
Series: I/A Series
Status: In stock
Full description:Foxboro B0123HE Adjustable Pressure Regulator with Filter
These regulators provide controlled air service to pneumatic instruments. The regulator regulates
a maximum supply pressure of 1.7 MPa (250 psi, 17 bar or kg/cm2) to the nominal levels required
by pneumatic instrumentation.
The B0123HF and B0123HE regulators have identical control ranges and are similar in
construction, except that the B0123HE has an integral filter element and drain feature.
The regulator should be installed as near as possible
to the instrument it is to service. It can be installed either vertically or horizontally, provided the
drain remains located at the lowest point on the assembly. The regulator has two
8 mm (0.320in) diameter holes passing entirely through the body for mounting on a suitable
bracket, or it can be supported by the supply and regulated line piping. It also has two
0.190-24 tapped holes in the body for mounting to a panel.
