Payment:
T/TPart Number:
FBM211 P0914TNWeight:
0.4kgDimensions:
8x6x4cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module
Parameters

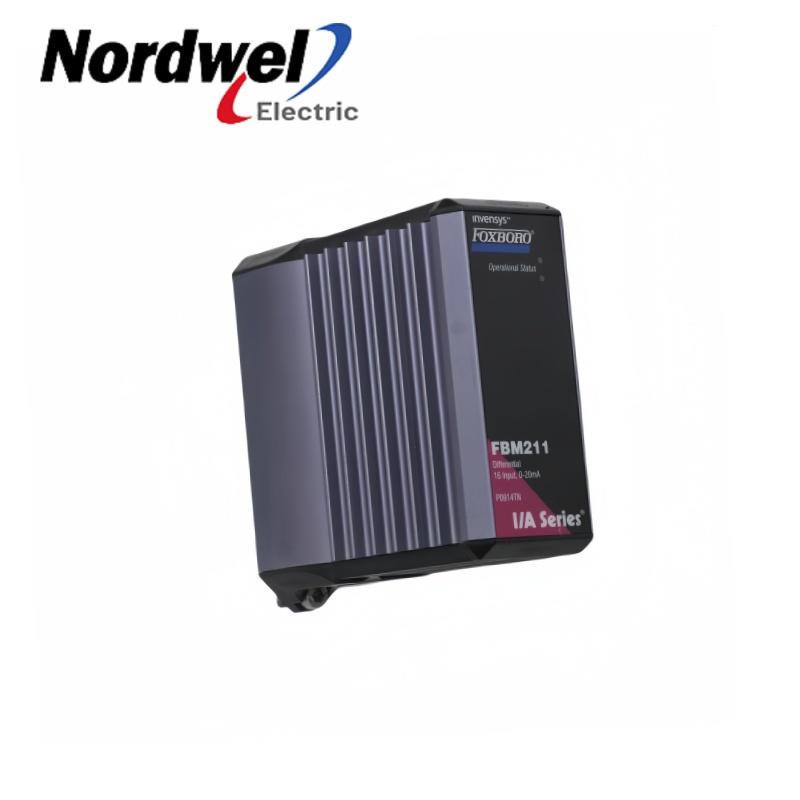

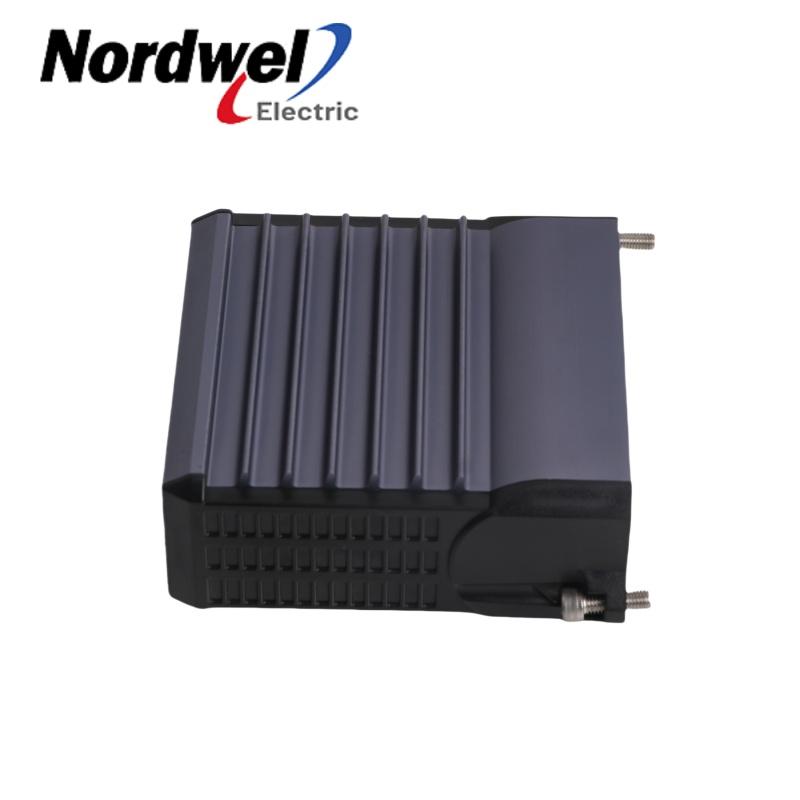

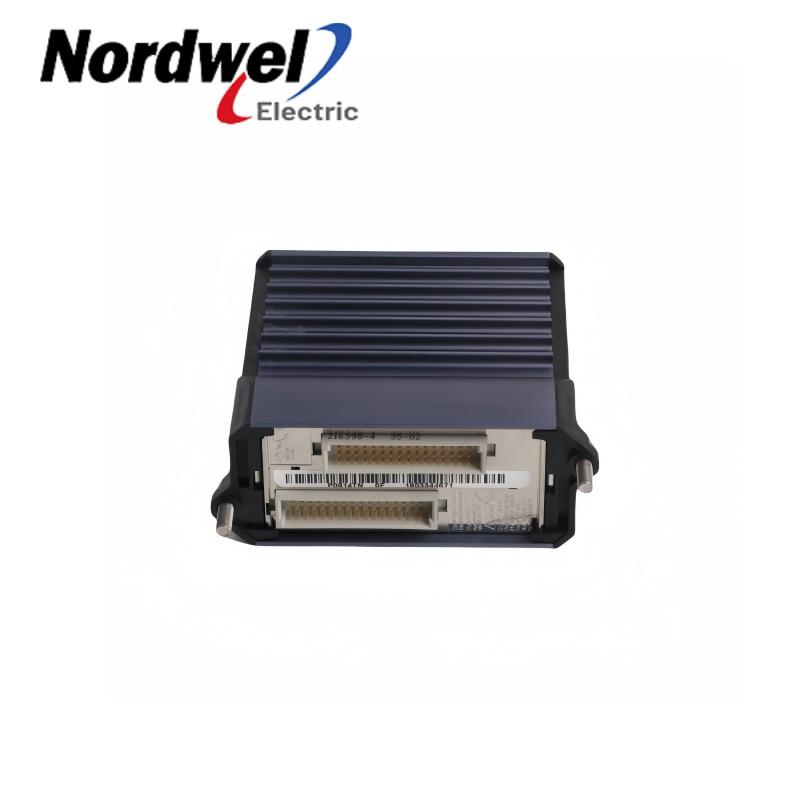

Model: FBM211 P0914TN
Brand: Foxboro
Condition: Brand New and Origin
Input Channels: 16 group-isolated and independent channels.
Input Range: 0 to 20.4mA DC.
Accuracy: ±0.03% of range.
Common Mode Rejection Ratio: Greater than 35dB at 50 or 60Hz.
Input Channel Impedance: Nominal 61.9Ω.
Input Voltage Range: DC 24V +5%, -10%.
Power Consumption: 7W (max) at DC 24V, 11W (max) at 20.4mA for all inputs.
Jenny Chan
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
High Precision Signal Processing: Accuracy up to 0.03% of range ±0.03%, which can accurately collect and process analog input signals, ensuring the system's accurate monitoring and control of field data.
Good electrical isolation: The input channel is electrically isolated from the ground and the module logic, effectively preventing the influence of signal interference and common mode noise, improving the stability and reliability of the signal, and is particularly suitable for complex electromagnetic interference environments in industrial sites.
Strong configurability: Analog input applications can be executed, providing configurable options such as conversion time and rate of change limit. Users can flexibly adjust the working parameters of the module according to specific application requirements to meet different signal acquisition and processing requirements.
Related Concerns
Q: What types of sensors can be connected to this module?
A: The FBM211 P0914TN module is mainly suitable for receiving 0 to 20mA DC analog input signals, and can be connected to two-wire analog sensors such as 4 to 20mA transmitters or self-powered 20mA sources.
Q: How to check whether the input signal of the module is normal?
A: You can preliminarily judge whether the input signal is normal by observing the LED indicator status of the corresponding input channel on the front end of the module. In addition, you can also use the monitoring software or tools of the FOXBORO system to view the real-time data values collected by the module and compare them with the actual sensor measurement values to determine the accuracy of the input signal.
1. Is your product new or refurbished?
A: Yes, All our products are original new with one year warranty.
2. Where is the country of origin?
A: The country of Origin is : USA
3. How long is your warranty?
A: We gurrantee all products have 1 year warranty
4. Do you have datasheet?
A: Yes. Do you need it for technical evaluation?
|
