Payment:
T/TPart Number:
FM148RWeight:
0.7kgDimensions:
6.7x10x11.5cmManufacture Year:
The latest yearPlace of Origin:
ChinaCertification:
COODescription:
Module
Specifications

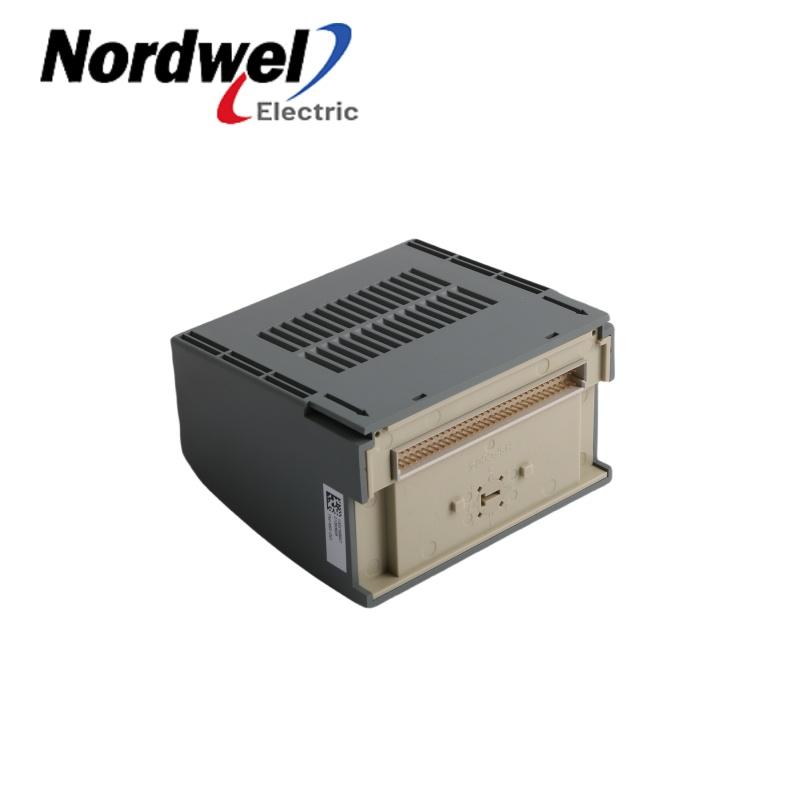

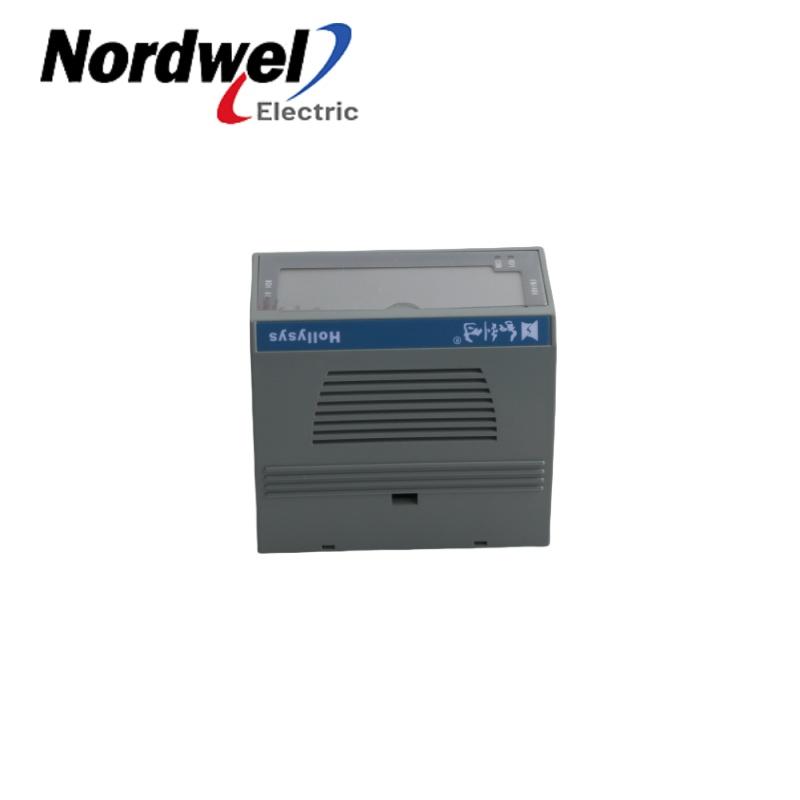

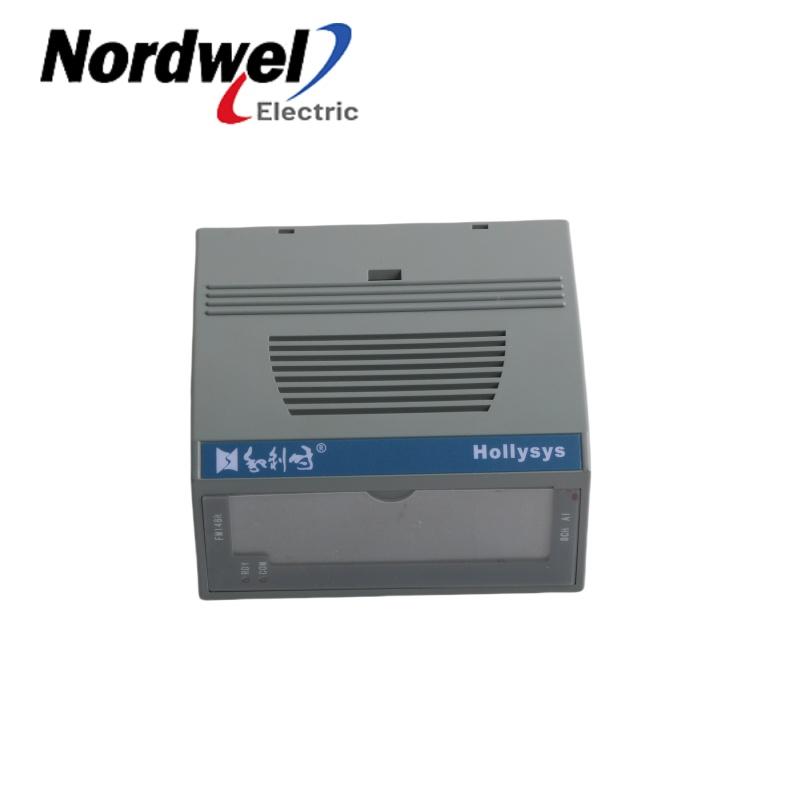

Model: FM148R
Brand: Hollysys
Condition: Brand New and Origin
Number of channels: 8 redundant analog input channels.
Signal type: It can accept 0-20mA DC current signal and 0-5V DC voltage signal, with a wide range of applications, and can accept current signals of two-wire and four-wire current devices.
Measurement range: 0-20.58mA/4-20.58mA.
Contact <<Jenny Chan>> to Get Quotation
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
Resolution: Generally has a higher resolution, which can reach 12 bits or higher to ensure measurement accuracy.
Accuracy: Measurement accuracy < 0.1% F.S.@25℃, calibration accuracy < 0.03% F.S.@25℃.
Sampling rate: It can collect data at a faster sampling rate to ensure timely and accurate acquisition of changes in analog signals. The specific value depends on the actual application and system configuration.
Input impedance: 243Ω.
Related Concerns
Common mode rejection ratio: 100dB, differential mode rejection ratio 80dB, can effectively suppress common mode and differential mode interference signals, and improve the accuracy and stability of signal acquisition.
Isolation voltage: Isolation voltage between the site and the system 500VAC@1min, leakage current 5mA, good isolation performance between channels and between channels and system power supply to prevent signal interference and protect system safety.
Temperature drift: ±25ppm/℃, it can still maintain good measurement accuracy and stability under different temperature environments.
Response time: The time to reach 90% of the target value is better than 1s, which can quickly respond to changes in analog signals and meet industrial control scenarios with high real-time requirements.
Payment: T/T
Service: 24 hours for a whole day
Terms of payment: T/T. RMB (CNY) support
Shipping Method: DHL\UPS\Fedex\EMS\Others
|
