Part Number:
10005/1/1Weight:
0.15kgDimensions:
2cmX18.6cmX12.9cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

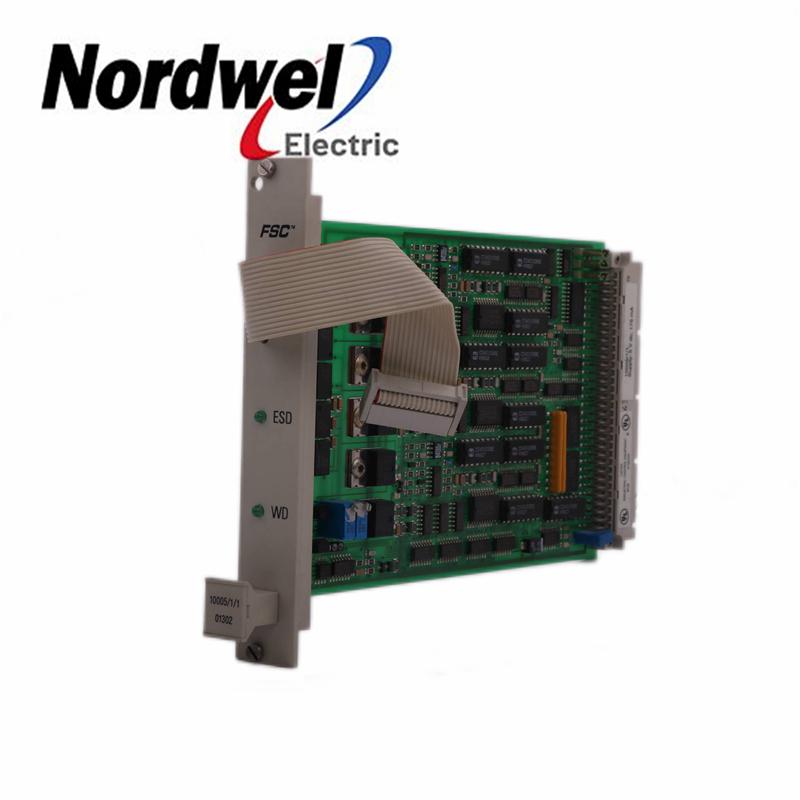

HONEYWELL 10005/1/1 Watchdog module (WD)
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
10005/1/1 |
|
Description: |
HONEYWELL 10005/1/1 |
|
Full Description: |
HONEYWELL 10005/1/1 Watchdog module
|
|
Status: |
In stock |
| Warranty | 12 Months |
General Type number: 10005/1/1 01301*
Approvals: CE, TÜV, UL
Software versions: all
Space requirements: 4 TE, 3 HE (= 4 HP, 3U)
Power Power requirements: 5 Vdc 175 mA
(without WDGOUT output current)
Ripple content: < 50 mV p-p
Input ESD1 input: 24 Vdc 5 mA
Reset input: 24 Vdc 10 mA
ESD2 input: 5 Vdc 10 mA
* Note:
10005/1/1 modules with suffix code 01301 are functionally
identical to 10005/1/1 modules without a suffix code. The
changes involve improved production yield and reliability.
The watchdog module monitors system parameters including:
• the application loop maximum execution time in order to detect if
the process is executing its program correctly and is not looping
(hang-up).
• the application loop minimum execution time in order to detect if
the processor is executing its program correctly and is not skipping
program parts.
• 5 Vdc voltage monitoring for overvoltage and undervoltage (5 Vdc ± 5 %).
• memory error logic from CPU, COM and MEM modules. In case of
a memory error, the watchdog output is de-energized.
• ESD input to de-energize the watchdog output independently from
the processor. This ESD input is 24 Vdc and galvanically isolated
from the internal 5 Vdc.
