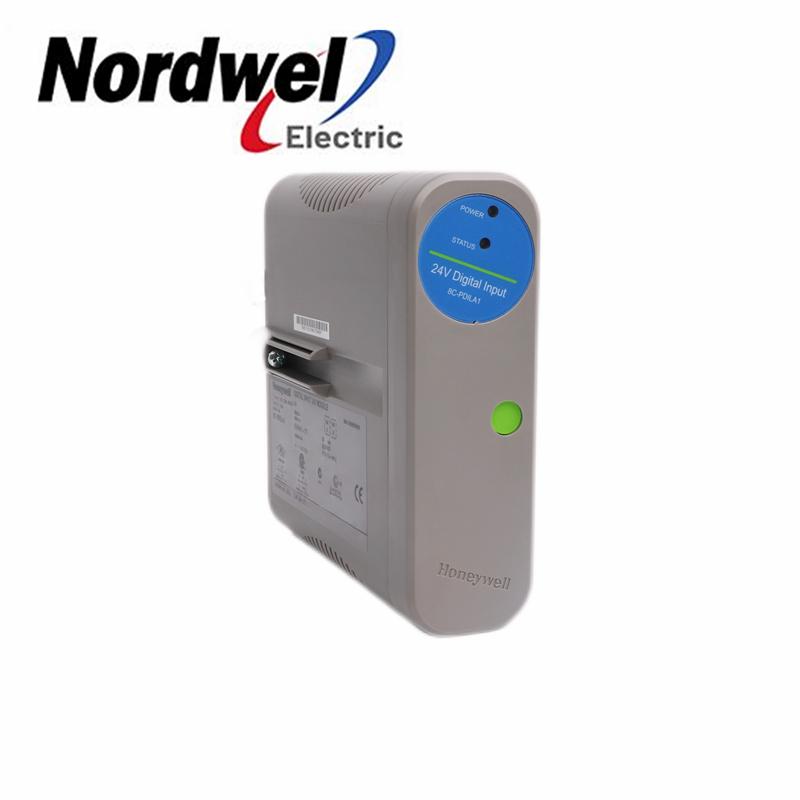

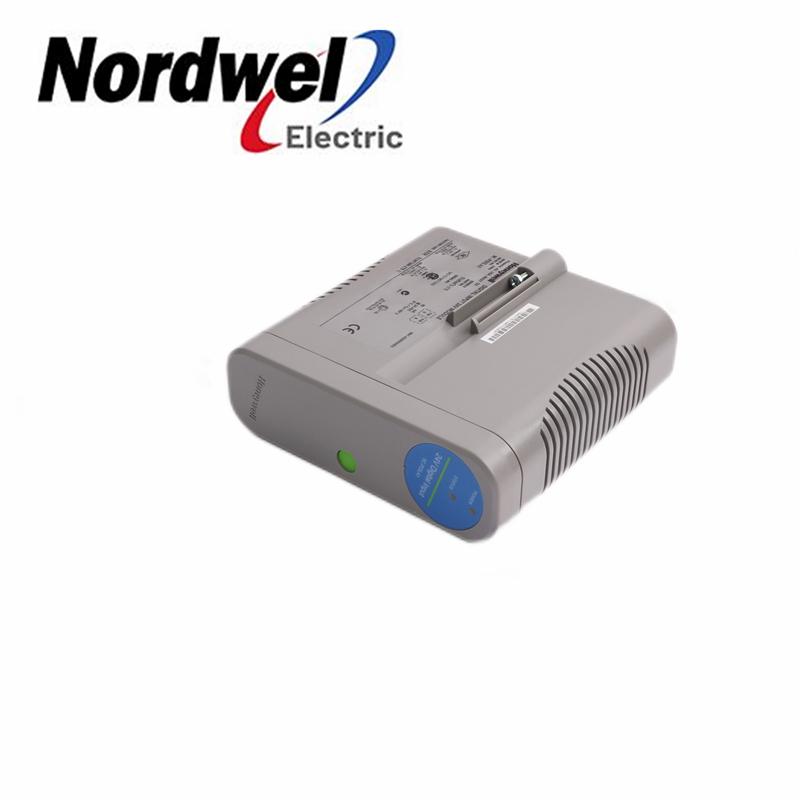

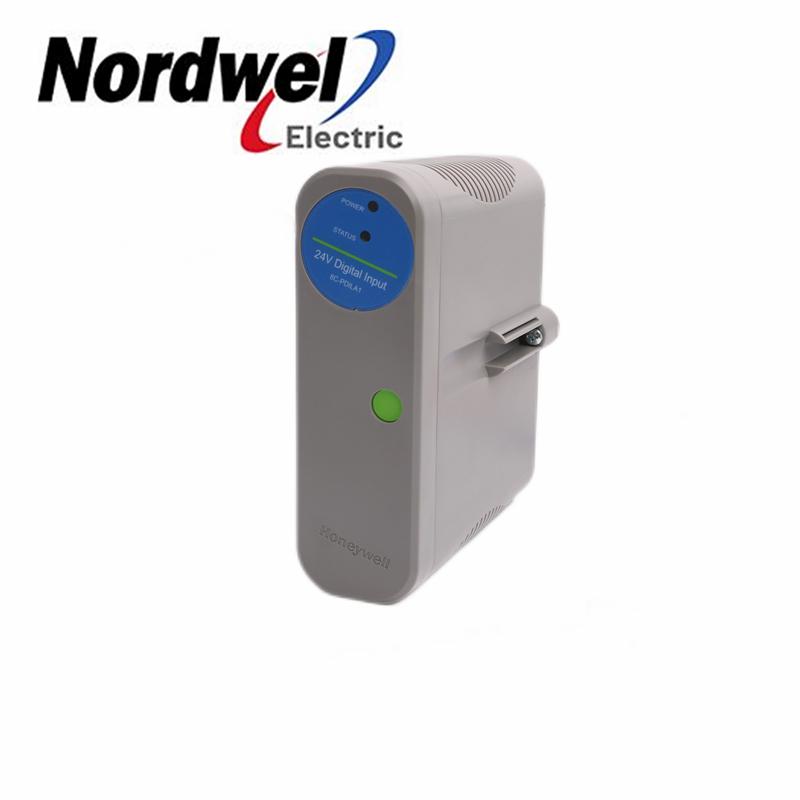

HONEYWELL | 8C-PDILA1 51454471-175 | Digital Input Module


  • Part Number:

    8C-PDILA1 51454471-175
  • Weight:

    0.3kg
  • Dimensions:

    6cmX15.5cmX14.5cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    HONEYWELL 8C-PDILA1 51454471-175 Digital Input Module 24VDC

Manufacturer:

HONEYWELL

Part Number:

8C-PDILA1 51454471-175

Description:

HONEYWELL 8C-PDILA1 51454471-175

Full Description:

HONEYWELL 8C-PDILA1 51454471-175 Digital Input Module

Status:

In stock

Warranty 12 Months


Function

The Digital Input 24VDC accepts 24VDC signals as discrete inputs.

Notable Features

• Extensive internal diagnostics for data integrity

• Optional redundancy

• Internal / External field power selection

• Galvanic isolation (System to Field only with external user supplied power)


Input / Output Module 8C-PDILA1 - Digital Input 24VDC, Coated

Input Channels 32

Galvanic Isolation (any input terminal

voltage referenced to common) 1

1000 VAC RMS or ±1500 VDC for System

Isolation Technique Optical (In IOM)

Voltage Rating 24 VDC

DI Power Voltage Range 18-30 VDC

Module current rating 95 mA

DI Power Voltage Range 18 to 30 VDC (For user supplied field power )

ON Sense Voltage/Current 13 VDC (min) or 3 mA (min)

OFF Sense Voltage/Current 5 VDC (max) or 1.2 mA (max)

Input Impedance 4.2 K

Absolute Delay Across Input Filter and

Isolation

5 ms ± 20%

Field Resistance for Guaranteed ON

Condition

300 Ω max @ 15 VDC

Field Resistance for Guaranteed OFF

Condition

30 KΩ min @ 30 VDC

Module Removal and Insertion

Under Power

Supported
