Part Number:
CC-GAOX11Weight:
0.55kgDimensions:
30.8 cm x 12.1 cm x 5.5 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

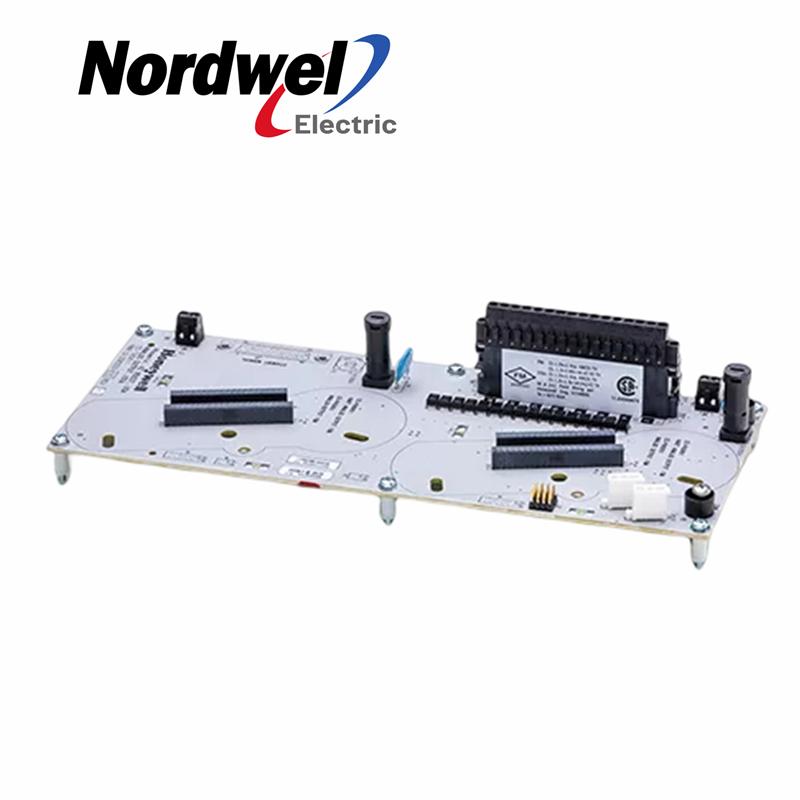

HONEYWELL CC-GAOX11 Analog Output IOTA
Manufacturer: |
HONEYWELL |
Part Number: |
CC-GAOX11 |
Description: |
HONEYWELL CC-GAOX11 |
Full Description: |
HONEYWELL CC-GAOX11 Analog Output IOTA
|
Status: |
In stock |
Warranty | 12 Months |
The model CC-GAOX11 Analog Output IOTA provides up to sixteen 4-20 mA output channels. This IOTA
supports redundancy and accepts the following GI/IS isolators:
• MTL4546C - one channel HART® with open wire detection
• MTL4549C - two channel HART® with open wire detection
• MTL4599 - dummy, terminates unused connectors
The galvanically isolated Analog Output (AO) IOTAs isolate up to sixteen 4-20 mA signals that can drive
current-to-pressure (I/P) transducers, position actuators, or any load between 90 and 800 ohms from the
associated Analog Output IOM. Additionally, bi-directional HART® communications with 4-20mA field
devices and HART® hand-held communicators are supported.
