Part Number:
CC-PCNT01 51405046-175Weight:
0.48kgDimensions:
6.8cmX16.2cmX16.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

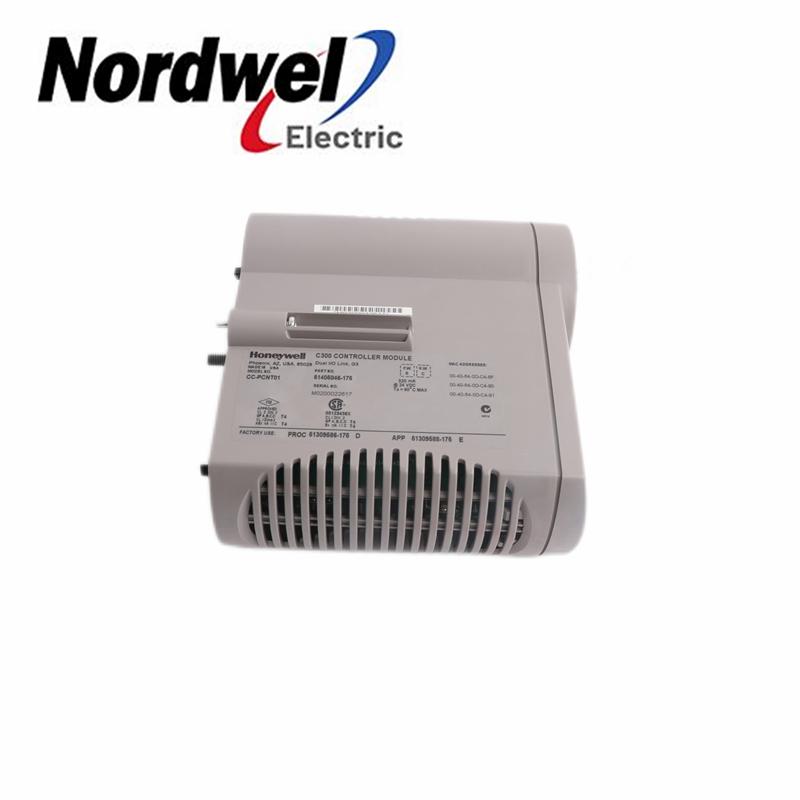

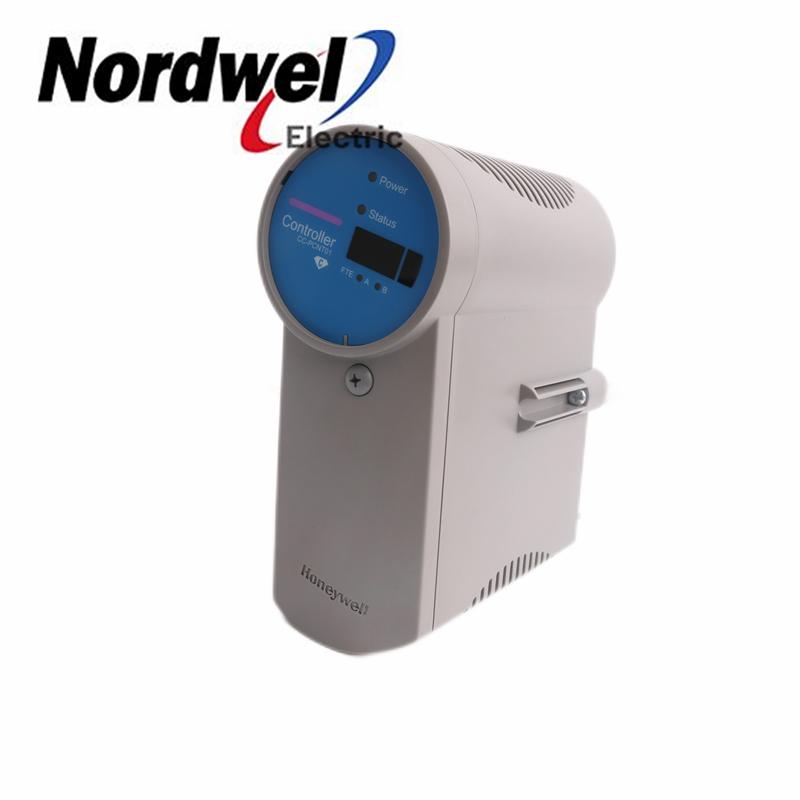

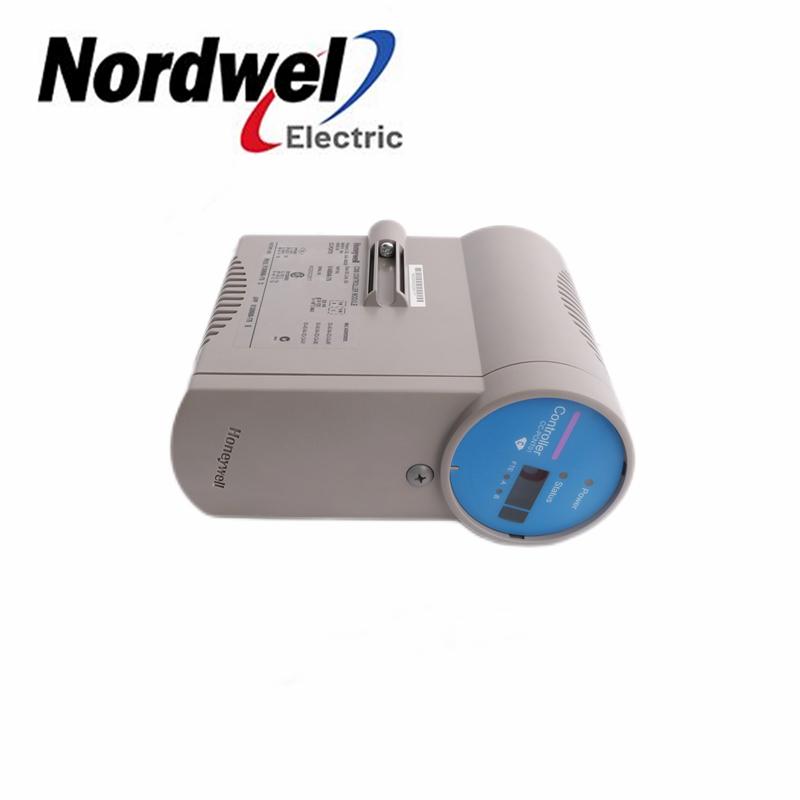

HONEYWELL CC-PCNT01 51405046-175 C300 Controller Module
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
CC-PCNT01 51405046-175 |
|
Description: |
HONEYWELL CC-PCNT01 51405046-175 |
|
Full Description: |
HONEYWELL CC-PCNT01 51405046-175 C300 Controller Module
|
|
Status: |
In stock |
| Warranty | 12 Months |
Techinical description:
A distributed process controller and I/O gateway for the Experion
system. Module contains printed circuit assemblies, status
indicators and a display, inside in a plastic housing. Module
mounts to its Input Output Termination Assembly (IOTA).
Supply Rating: 0.311A @ 24VDC
C300 Controller
The C300 Controller is constructed using the Series C form factor that employs an Input Output
Termination Assembly (IOTA) and an electronics module which mounts and connects to the IOTA. One
C300 Controller contains all of the control functionality and the communications functions with plug-in
modules.
The C300 Controller may operate in both non-redundant and redundant configurations. Redundant
operation requires a second identical controller and connecting cables, which is the typical configuration.
The C300 Controller is connected to the associated I/O hardware by a pair of I/O Link Interface cables
The table below identifies the C300 Controller components and its associated components. TheC300
Controller supports non-redundant and fully redundant operation. Redundancy is built in to the controller,
so that just adding another controller and a redundancy cable; a redundant controller pair is achieved.
Note that the ‘CC’ designation on the model number indicates the printed wiring boards are conformally
coated for additional protection from the environment, (CU = uncoated).
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
| HONEYWELL |
HONEYWELL |
HONEYWELL |
|
MC-PAIH03 51304754-150 |
FC-TSAI-1620M |
51202330-300 |
|
MC-TLPA02 51309204-175 |
TK-HAO081 |
51202335-300 |
|
MC-TAOY25 51305865-275 |
MU-TSDM02 51303932-277 |
51402625-175 MC-PDIS12 |
|
MC-TAOX12 51304335-125 |
TC-IDA161 |
51402573-150 |
|
MC-TDOY22 51204162-175 |
135489-01 |
51202329-602 |
|
MC-TAIH12 51304337-150 |
FC-SAO-022M |
51402797-200 51305319-100 |
|
51309218-175 MC-TAMR03 |
621-9937 |
51402755-100 K4LCN-4 |
|
MC-TDOR62 51309150-275 |
10005/1/1 |
8C-TPOX01 51307022-175 |
|
MU-TPIX12 51304084-100 |
10216/2/1 |
8C-TAOX51 51306983-175 |
|
MC-TAMR03 51309218-175 |
FTA-T-08 |
8C-TDODA1 51307149-175 |
|
MC-PRHM01 51404109-175 |
10014/H/I |
8C-PAINA1 51454470-175 |
