Part Number:
CC-PDOB01 51405043-175Weight:
0.4kgDimensions:
5.5cm*16cm*14.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

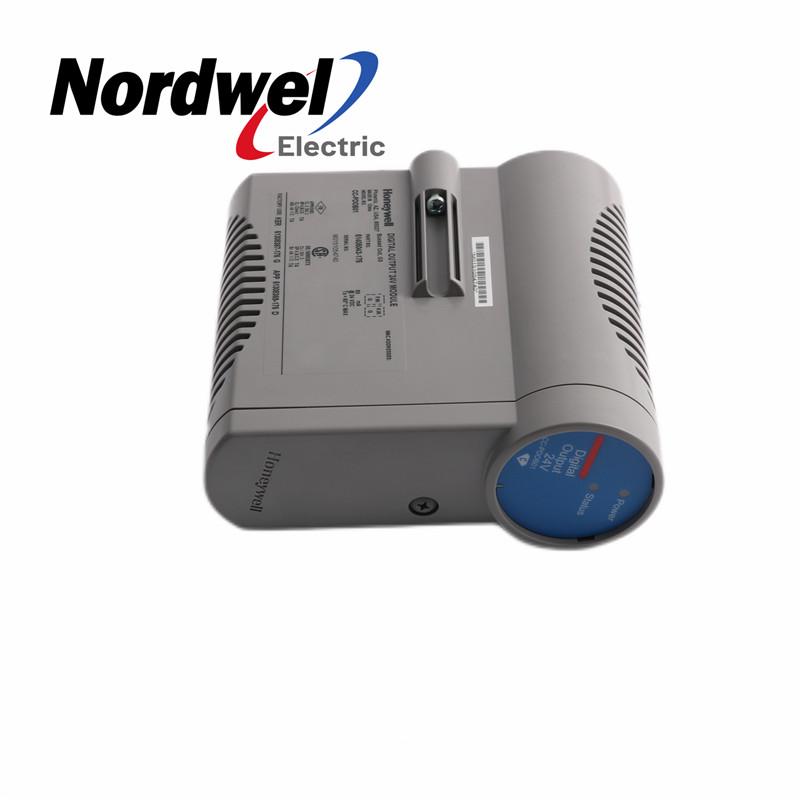

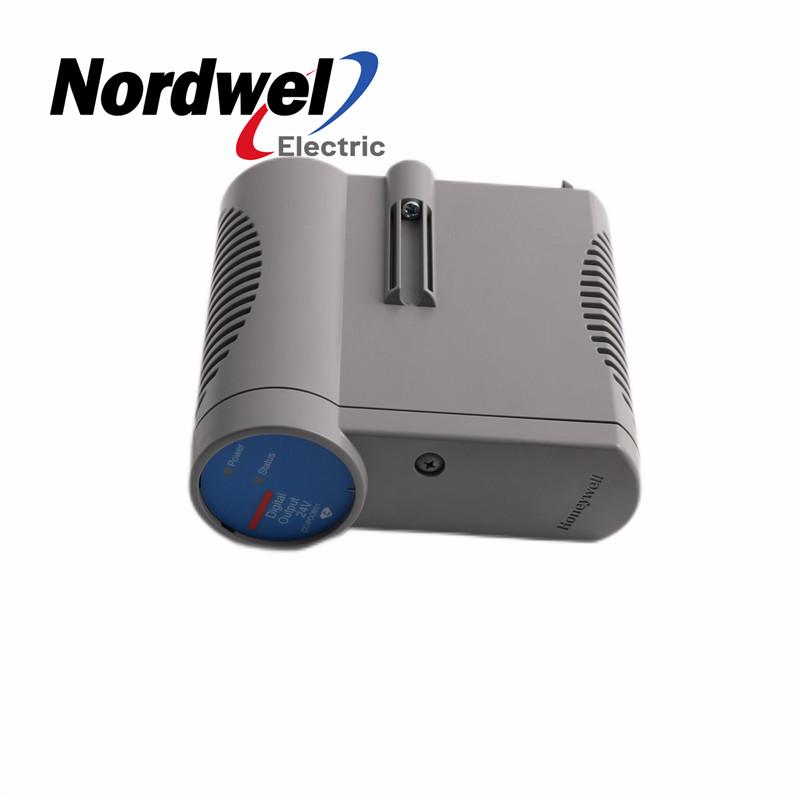

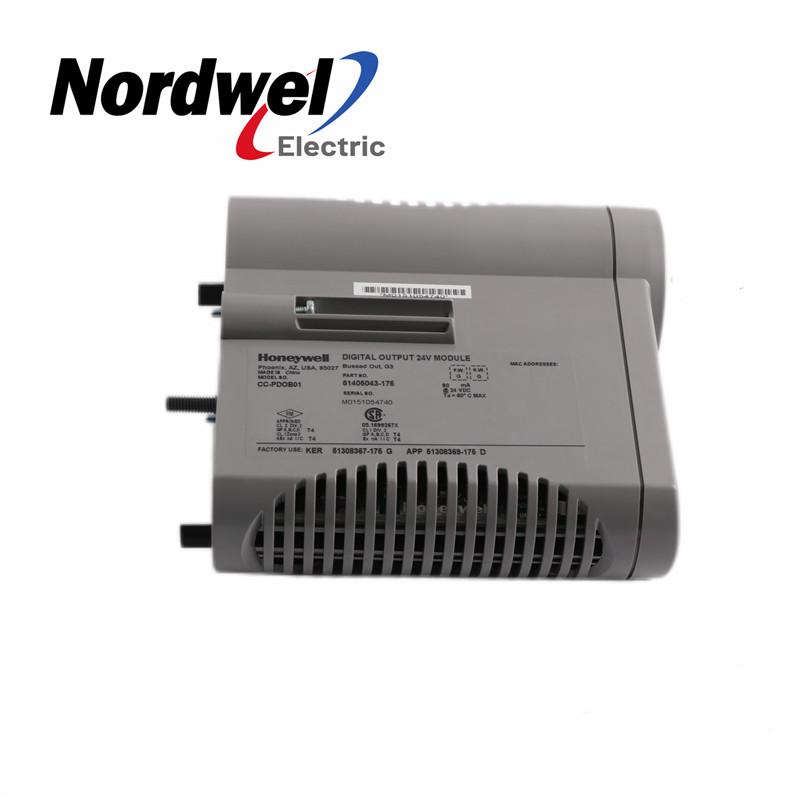

HONEYWELL CC-PDOB01 51405043-175 Digital Output 24V Bussed Out 32 Module
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
CC-PDOB01 51405043-175 |
|
Description: |
HONEYWELL CC-PDOB01 51405043-175 |
|
Full Description: |
HONEYWELL CC-PDOB01 51405043-175 Digital Output 24V Bussed Out 32 Module
|
|
Status: |
In stock |
| Warranty | 12 Months |
Techinical description: Digital Output IO Module (IOM) (32 channels at 24V)
Product type : Digital Output 24V Module
Digital Output 24V Bussed Out 32 Card
Output Channels: 32
Load Voltage: 30VDC Maximum
Galvanic Isolation: 1500 VAC RMS or ±1500 VDC
On-State Voltage: 24 V (typ), load current @ 0.5A
Off-State Voltage: 0V VDC (max) (3.3 VDC(max) indicated under no-load condition)
Off-State Leak Current: 0.5 µA (max)
Turn-On/Turn-Off Time: 10 ms (max)
C300 Controller
The C300 Controller is constructed using the Series C form factor that employs an Input Output
Termination Assembly (IOTA) and an electronics module which mounts and connects to the IOTA. One
C300 Controller contains all of the control functionality and the communications functions with plug-in
modules.
