Part Number:
FC-TSAI-1620MWeight:
0.3kgDimensions:
21cmX7cmX5.8cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

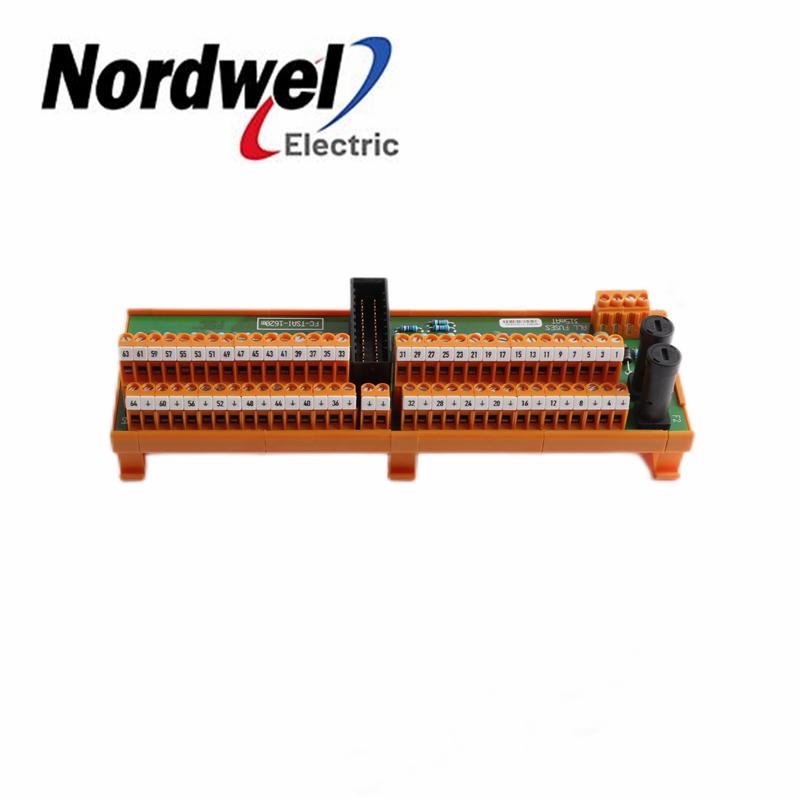

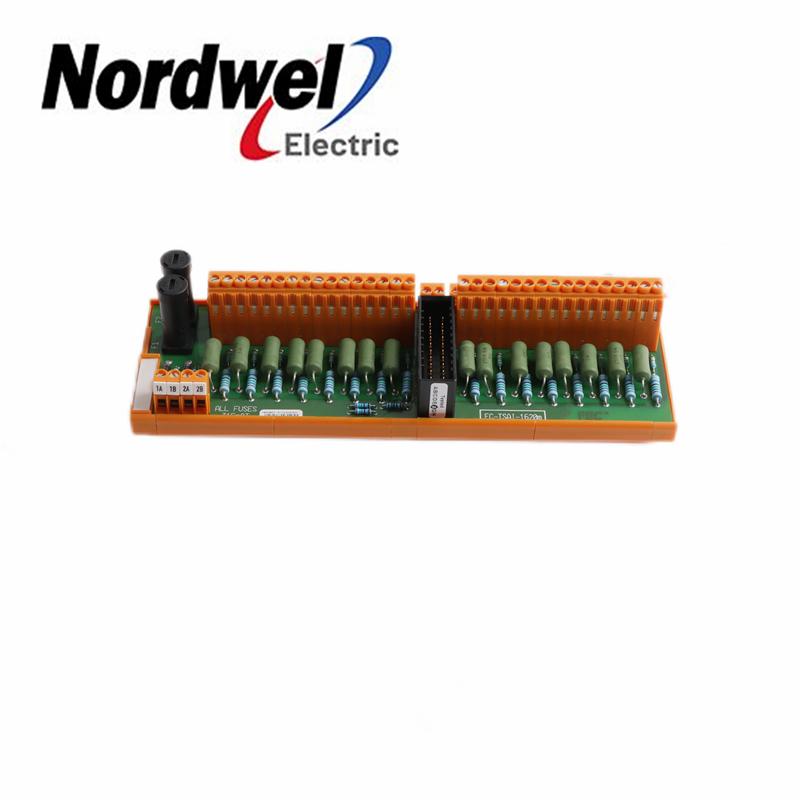

HONEYWELL FC-TSAI-1620M Analog Input Module
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
FC-TSAI-1620M |
|
Description: |
HONEYWELL FC-TSAI-1620M |
|
Full Description: |
HONEYWELL FC-TSAI-1620M Analog Input Module
|
|
Status: |
In stock |
| Warranty | 12 Months |
Fail-Safe 0(4)-20mA Analog Input, 16channels
The TSAI-1620m module has the following specifications:
General Type numbers1 :
1 FS-type modules are non conformal coated modules.
FC-type modules are conformal coated modules. Conformal coated modules have the letters
“CC” preceding the version number.
FS-TSAI-1620m
FC-TSAI-1620m
Approvals: CE, TUV, UL, CSA, FM
Input Number of input channels: 16 (2 groups of 8 with common 0 V)
Power requirements: 30 Vdc external, 3 mA (without input loop loads)
Input current: 0—25 mA
Input resistance: 250 Ω (± 1%)
Output To passive transmitters (Vext):
• Output resistance: 270 Ω (± 5%)
• Igniting current per channel: < 120 mA at 30 Vdc
To SAI-1620m module:
• Output voltage 0—4 Vdc
• Accuracy 0.1%
Fuses Rating: 315 mAT (slow-acting)
DIN EN rails: TS32 / TS35 × 7.5
Used rail length: 211 mm (8.30 in)
Termination Screw terminals:
• Max. wire diameter 2.5 mm² (AWG 14)
• Strip length 7 mm (0.28 in)
• Tightening torque 0.5 Nm (0.37 ft-lb)
