Part Number:
FTA-T-08Weight:
0.26kgDimensions:
14.6cmX7cmX6.8cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:
HONEYWELL FTA-T-08 Fail-safe digital output (relay contact) FTA (4 channels)
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
FTA-T-08 |
|
Description: |
HONEYWELL FTA-T-08 |
|
Full Description: |

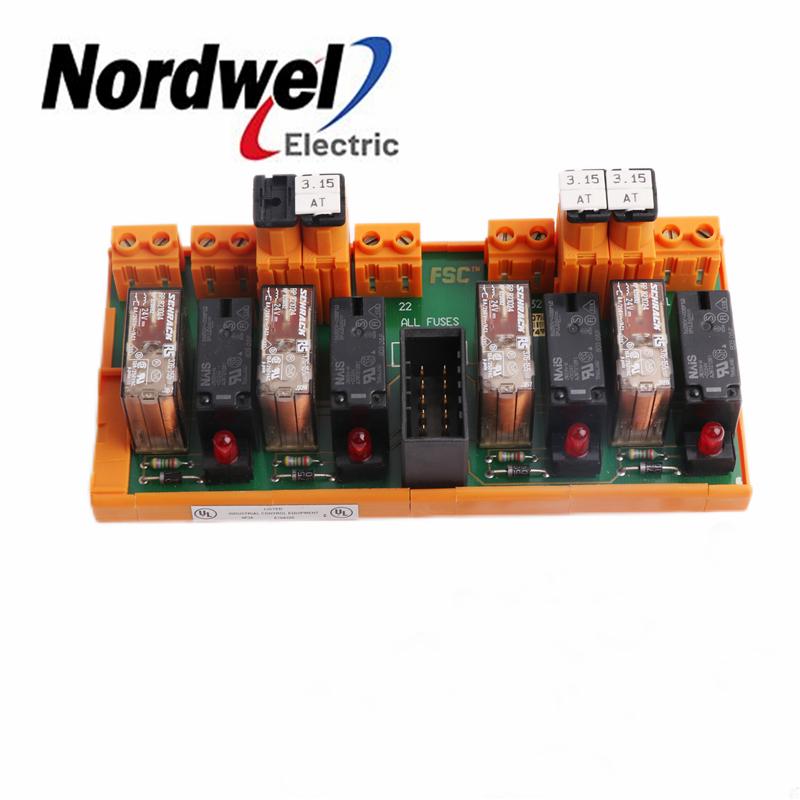

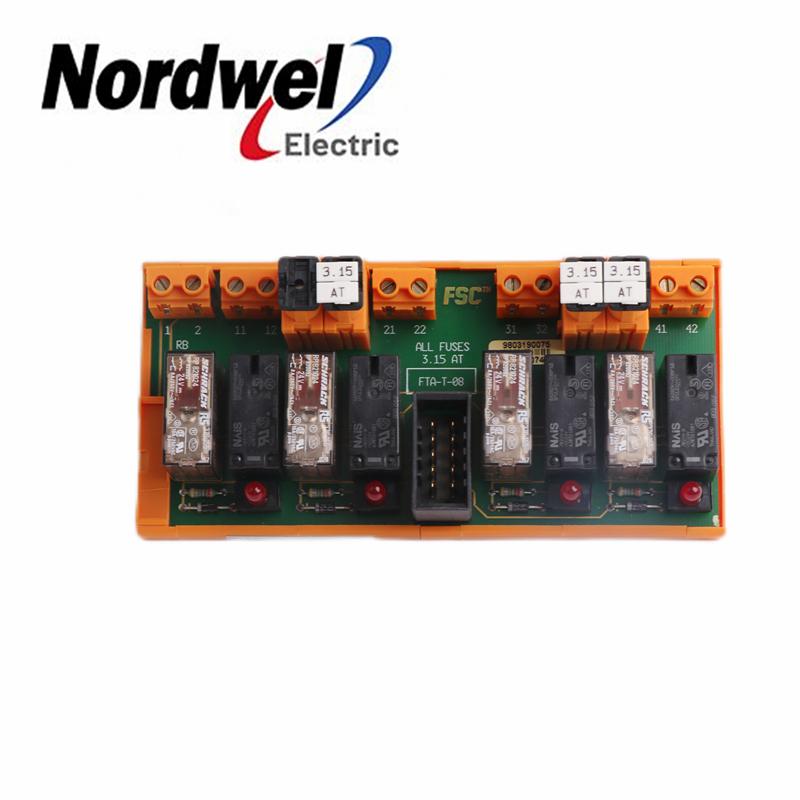

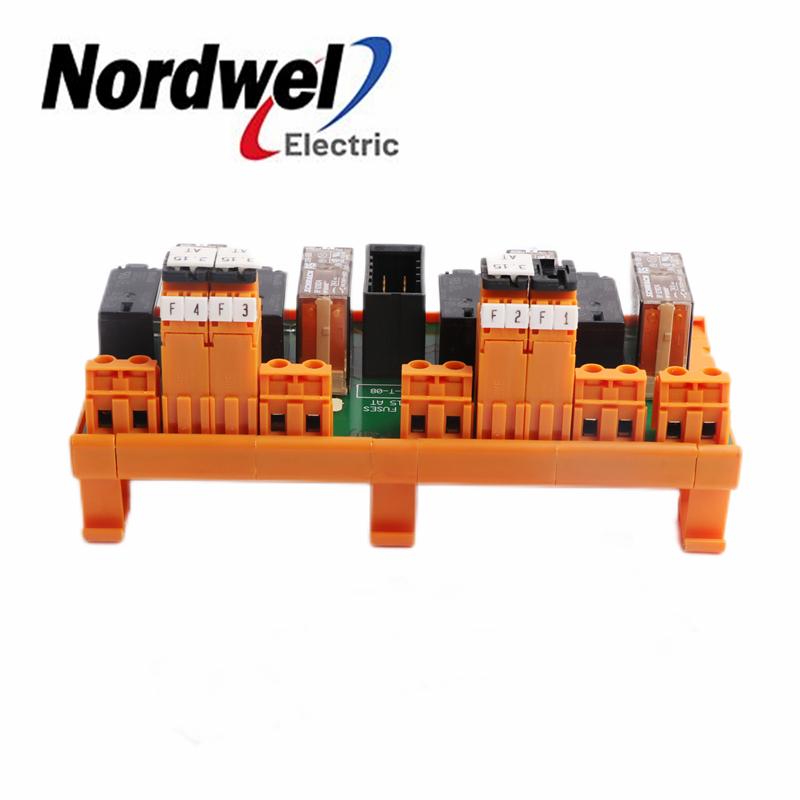

HONEYWELL FTA-T-08 Fail-safe Digital Output Module
|
|
Status: |
In stock |
| Warranty | 12 Months |
Technical data The FTA-T-08 module has the following specifications:
General Type number: FTA-T-08
Approvals: CE, TÜV, UL
Input Nominal input voltage: 24 V
Max. input voltage: 31 V
Relay cut-in voltage: 19 V
Input current: typically 50 mA at 24 V
Output Number of output channels: 4
Max. output current: 3.15 A
Min. output current: 400 mA at 24 Vdc
Max. output voltage: 250 Vac / 150 Vdc
Max. output load: 800 VA / 150 W
The FTA-T-08 module has four fail-safe potential-free relay contact
(NO) output channels, created by two different relays connected in
series. These relays are capable of driving a wide variety of loads
including 115/230 Vac, which gives the FSC system a fail-safe
115/230 Vac output capability.
The energized state of the relay is indicated by an LED on the module.
