Part Number:
MC-PAIH03 51304754-150Weight:
0.58kgDimensions:
3cmX31.3cmX27.8cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

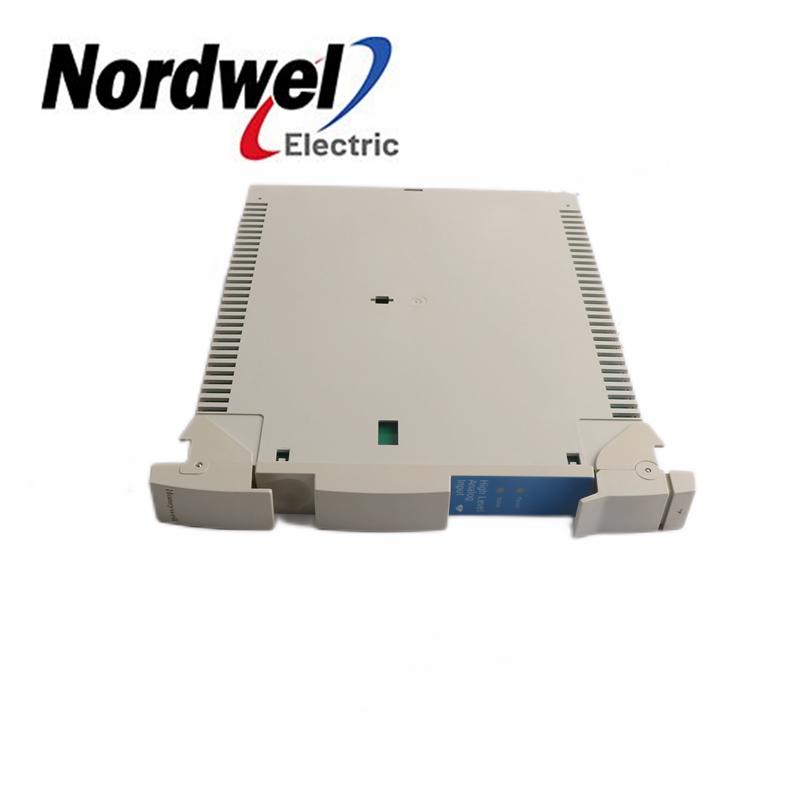

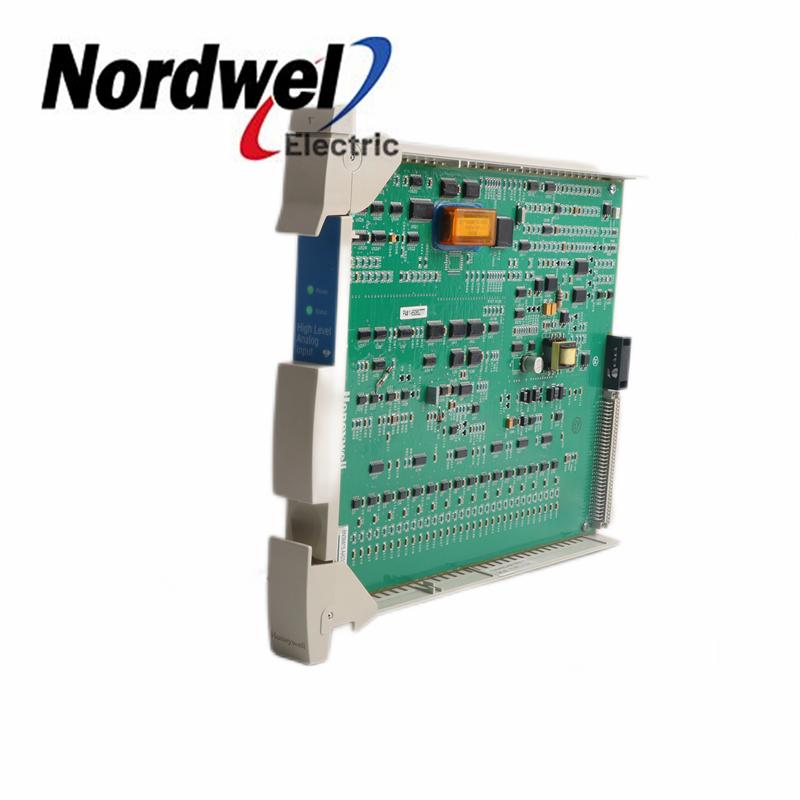

HONEYWELL MC-PAIH03 51304754-150 High Level Analog Input Processor (IOP) Card
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
MC-PAIH03 51304754-150 |
|
Description: |
HONEYWELL MC-PAIH03 51304754-150 |
|
Full Description: |
HONEYWELL MC-PAIH03 51304754-150 High Level Analog Input Processor (IOP) Card
|
|
Status: |
In stock |
| Warranty | 12 Months |
Input Type Voltage, current (2-wire or self-powered transmitters)
Input Channels 16 differential input channels
Common Mode Rejection Ratio, dc to 60 Hz (500 Ω source imbalance)
70 dB
Common Mode Voltage, dc to 60 Hz(1) -6 to +5 V peak
A/D Converter Resolution 16 bits (14 bits used)
Input Range 0 to 5 V
1 to 5 V
0.4 to 2 V
4-20 mA (through 250 Ω)
Normal Mode Rejection Ratio, at 60 Hz 32 dB
Normal Mode Filter Response Single-pole RC, -3 dB @ 1 Hz
Maximum Normal Mode Input
(differential inputs, no damage)
± 30 Volts
Crosstalk, dc to 60 Hz
(channel-to-channel)
60 dB
High and low level analog input (HLAI + LLAI - 8) processors both perform signal
conversion and conditioning functions:
• PV Source (Auto, Manual, Substituted)
• PV Clamping
• EU Conversion
• PV Value Status
• PV Filter (Single Lag)
• Bad PV
• PV Hi/Lo
• PV HiHi/LoLo
• PV Rate-of-Change +/-
• Software Calibration
• Low PV Cutoff
They perform engineering unit conversion, including fifth-order polynomial
temperature input characterization, if the high level processor receives these inputs from
mV/I converters. Through use of a dual processor design and custom integrated
circuits, the low level analog input processor supports software configuration per
channel for different thermocouples or RTD types with excellent resolution and
accuracy. Open thermocouple detection is performed once per scan so that no bad data
is propagated for control processing.
