Part Number:
3008NWeight:
2.12kgDimensions:
2.2cm*40.5cm*40cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

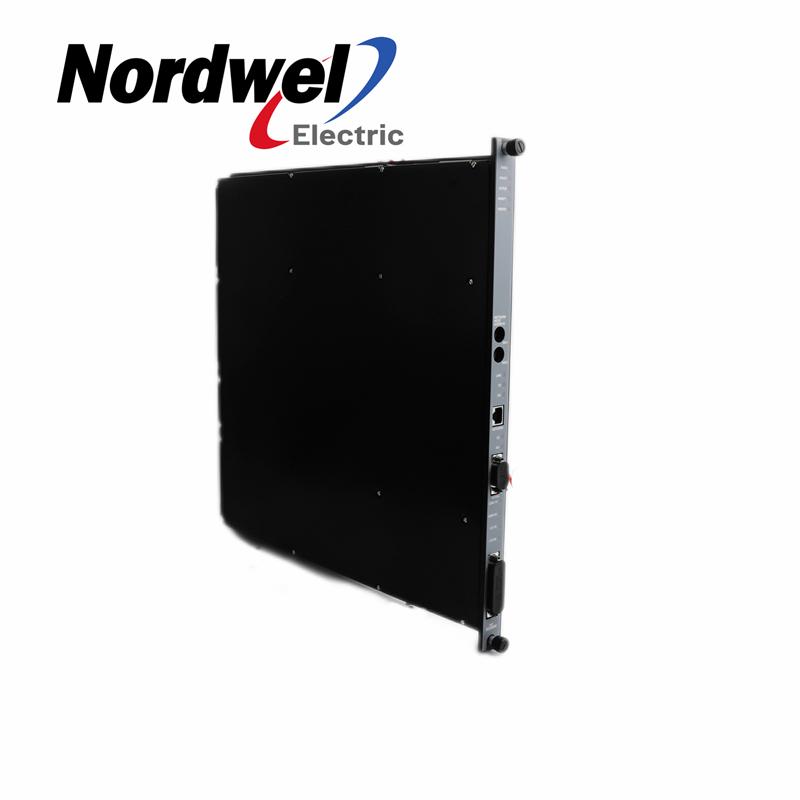

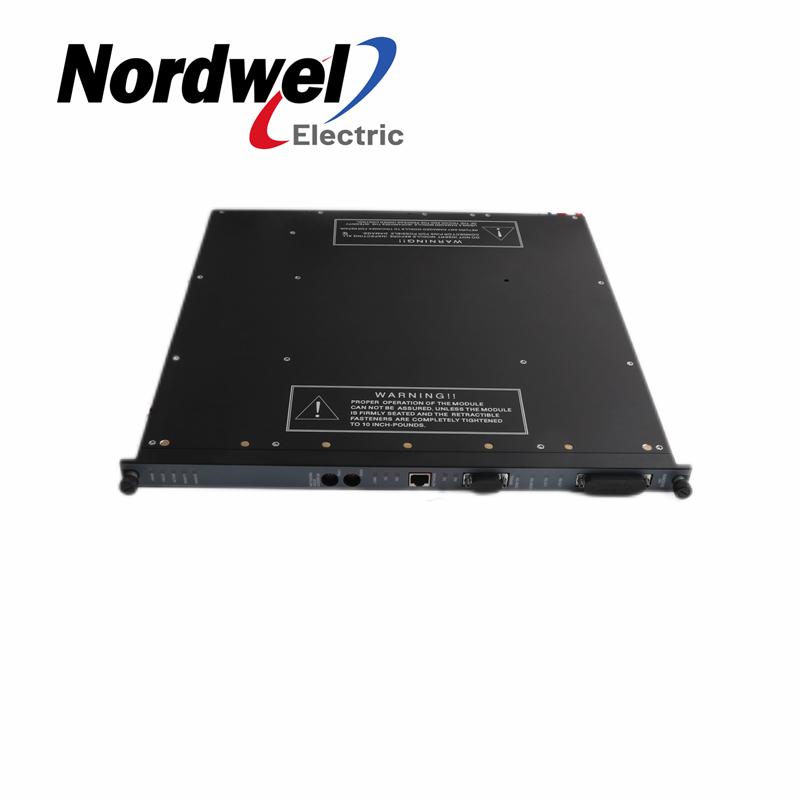

TRICONEX 3008N Enhanced Main Processor III, 16 Mb
Manufacturer : Triconex
Product No:3008N
Product Type :Main Processor
Full description: TRICONEX 3008N Enhanced Main Processor III, 16 Mb (MP module)
The Tricon V10 main processor subsystem utilizes three 3008N MP modules to control the
three separate legs of the system. Each 3008N MP module operates independently with no
shared clocks, power regulators, or circuitry. Each 3008N MP module controls one of the three
signal processing legs in the system and each contains two 32-bit processors. One of the 32-bit
processors is a dedicated, leg-specific I/O and communication (IOCCOM) microprocessor that
processes all communication with the system I/O modules and communication modules.
The second 32-bit primary processor manages execution of the safety control program and all
system diagnostics at the main processor module level. Between the two 32-bit primary
processors is a dedicated dual port random access memory (RAM) allowing for direct memory
access data exchanges.
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
