Part Number:
3510Weight:
3.04kgDimensions:
49*45.3*6.8cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

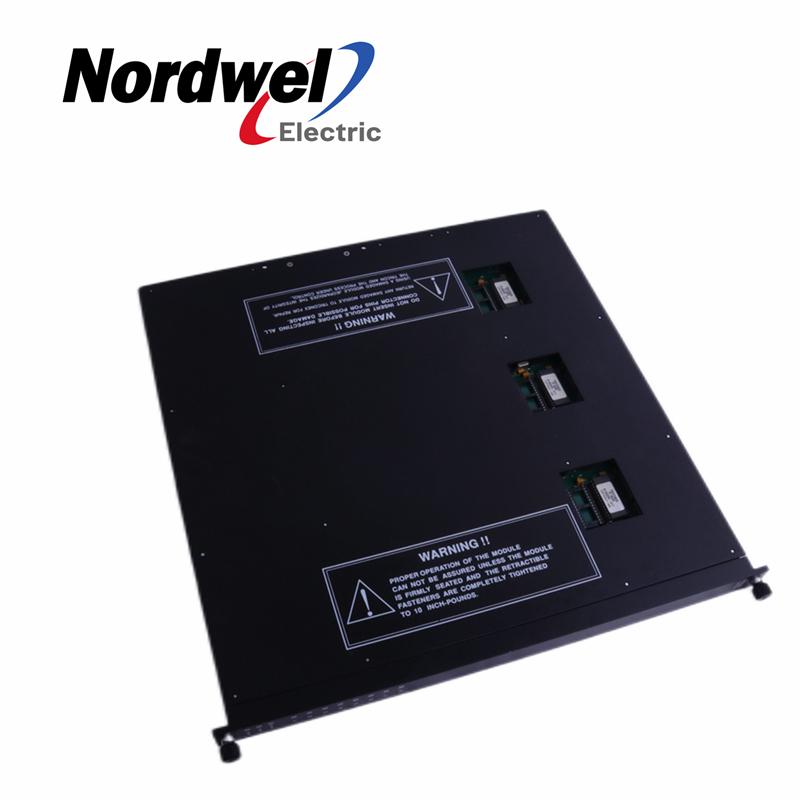

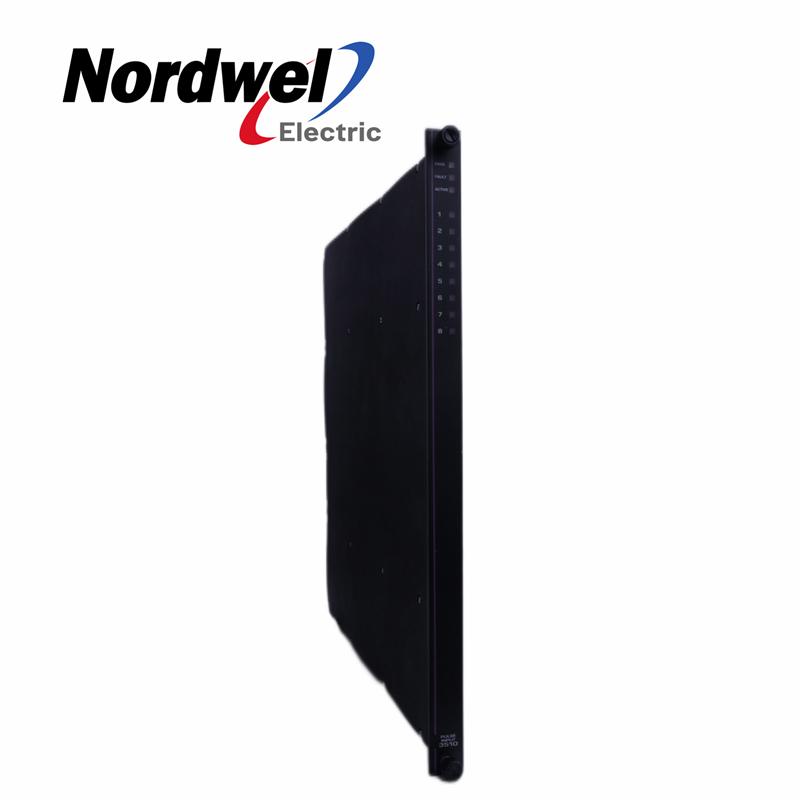

TRICONEX 3510 Pulse Input Module,AC Coupled (TMR)
Manufacturer : Triconex
Product No: 3510
Product Type :Digital Input Module
Full description: TRICONEX 3510 Pulse Input Module,AC Coupled (TMR)
Pulse Input Modules provide eight very sensitive, high-frequency inputs, which are used with
non-amplified magnetic speed sensors common on rotating equipment such as turbines or
compressors. The module senses voltage transitions from magnetic transducer input devices.
The transitions are accumulated during a selected window of time (rate measurement), and the
resulting count is used to generate a frequency or RPM which is transmitted to the Main
Processors. The pulse count is measured to 1 microsecond resolution.
3510 Pulse Input Specification
Feature Specification
Color code Light purple
Number of input signals 8, non-commoned
Input frequency range 20 Hz to 20,000 Hz
Accuracy: @ 1,000 Hz to 20,000 Hz ±0.01%
Accuracy: @ 100 Hz to 999 Hz ±0.1%
Accuracy: @ 20 Hz to 99 Hz ±1.0%
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
