Part Number:
4000098-510Weight:
1.42kgDimensions:
34*24*6cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

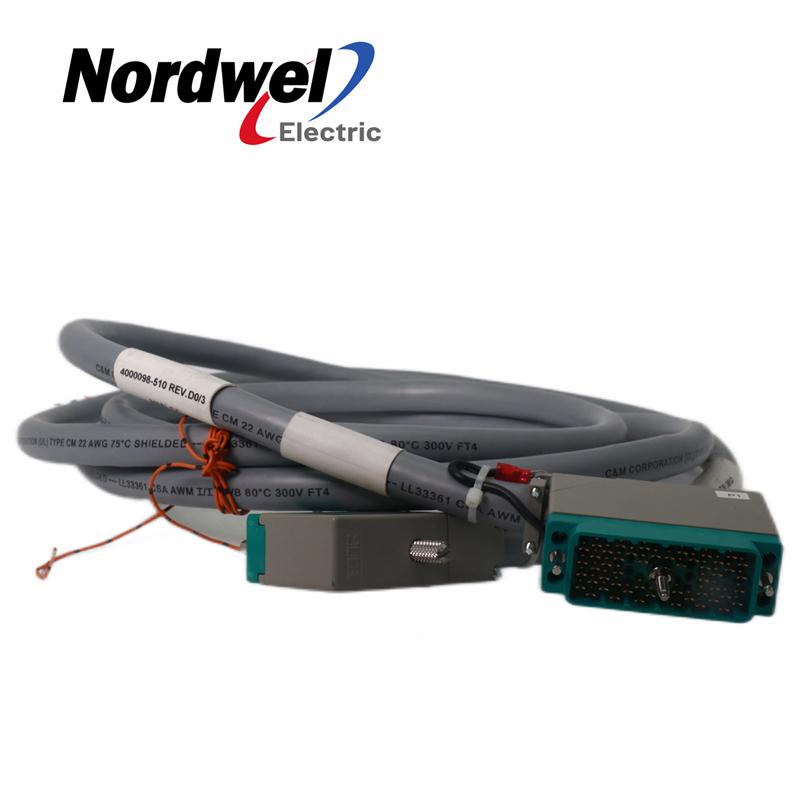

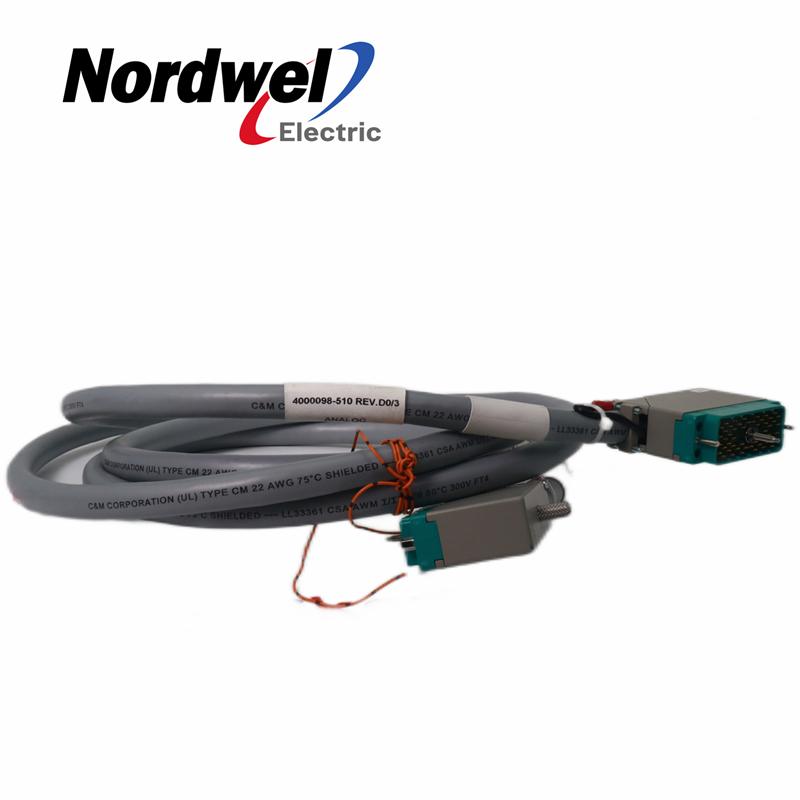

TRICONEX 4000098-510 Cable Assembly
Manufacturer : Triconex
Product No:4000098-510
Product Type :Cable Assembly
Full description: TRICONEX 4000098-510 Cable Assembly
Communication Module Configuration Guidelines
The following rules apply to the TCM, EICM, NCM, HIM, SMM, and ACM in a Tricon system:
• A TriStation PC communicates with a Tricon controller through a TCM,
EICM, NCM or ACM, so at least one of these modules must be installed
in the main chassis or Chassis 2.
• One logical slot is available for EICMs or ACMs, respectively. Matched
pairs of these modules can be installed in both the left and right positions of one logical slot.
• Up to two logical slots can be configured for NCMs. Matched pairs of NCMs can
be installed in the left and right positions of each logical slot. If only one logical slot is
used, the slot can be in the main chassis or Chassis 2. If two logical slots are used, they
must be Slot 6 and 7 in the main chassis, and peerto-peer cannot be used.
• Up to two logical slots can be configured for TCMs. Matched pairs
of TCMs can be installed in the left and right positions of each logical
slot, and they can be located in the main chassis or Chassis 2.
