Payment:
T/TPart Number:
9563-810Weight:
0.4kgDimensions:
13x11x7.5mManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:

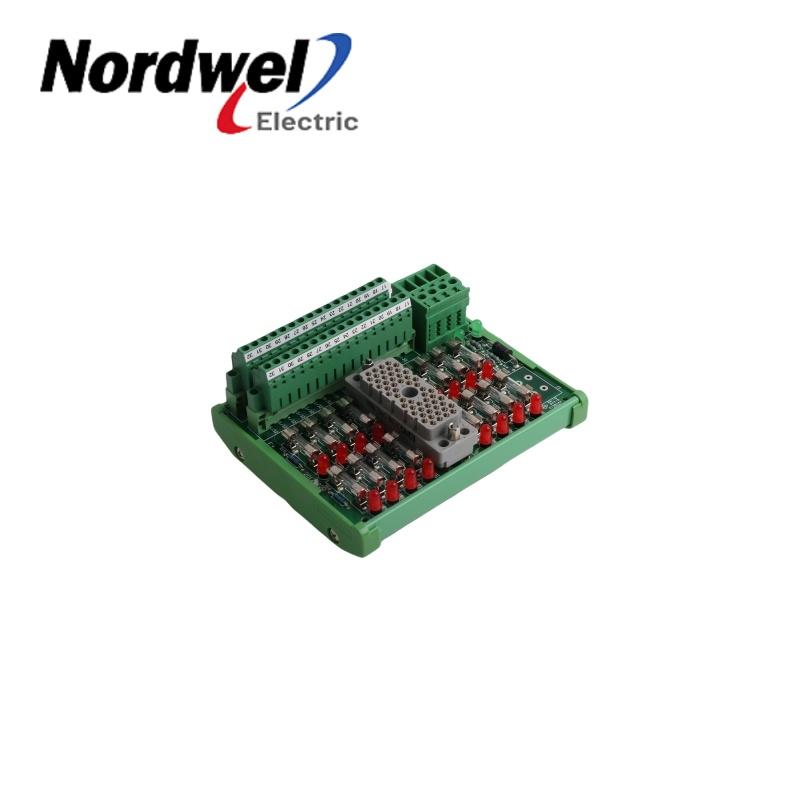

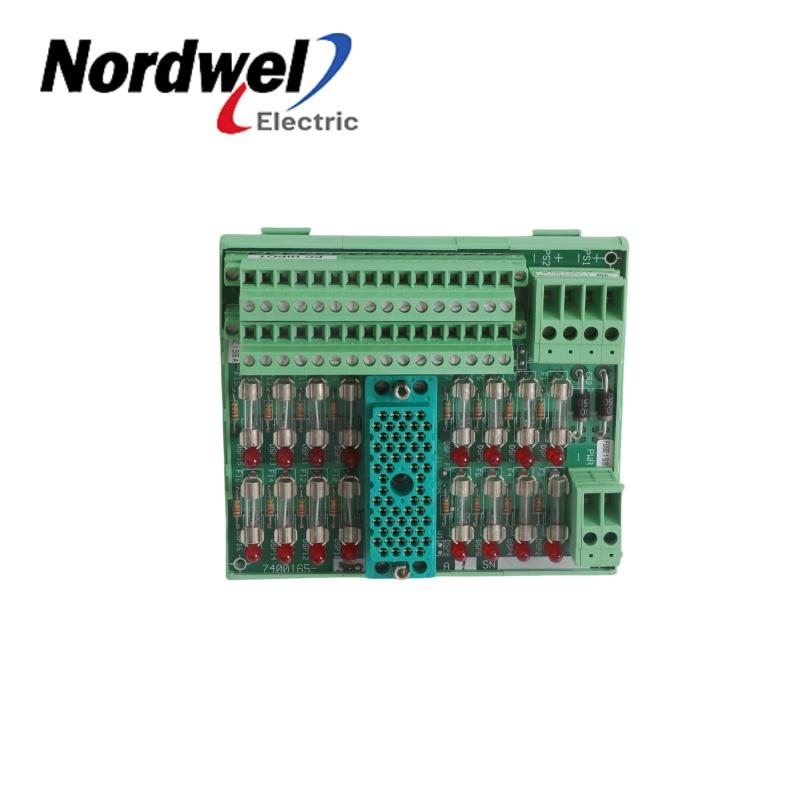

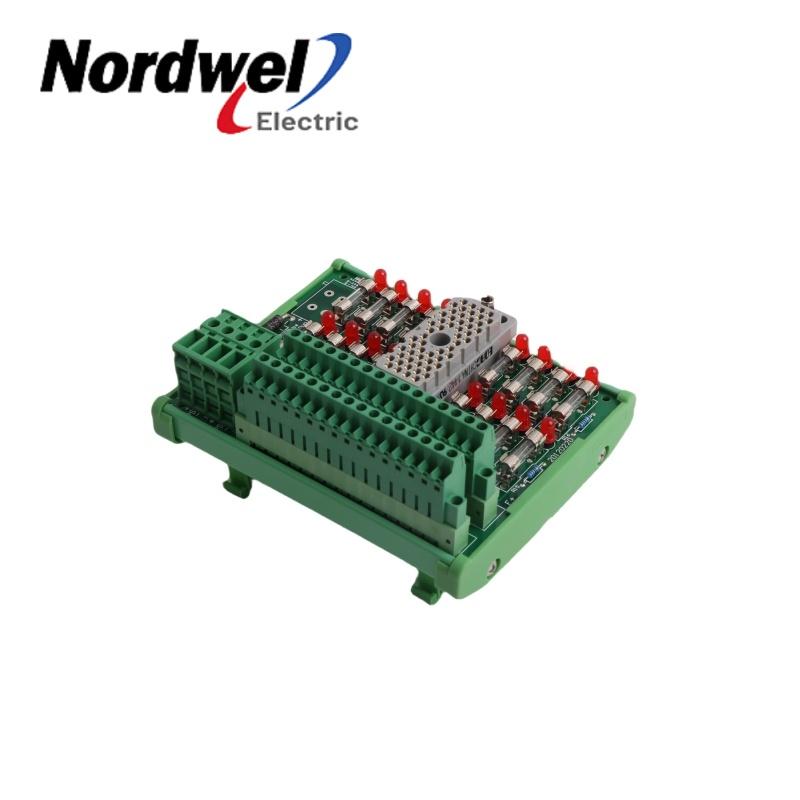

Module
Parameters
Model: 9563-810
Brand: Triconex
Condition: Brand New and Origin
Working voltage range: Usually works in a stable DC voltage range, which may be around 20-30V DC. This voltage range is to ensure a stable power supply to support various signal processing and transmission functions on the terminal board.
Power consumption: The power consumption level will vary depending on the specific load and working state. Under normal working conditions, the power consumption may be between a few watts and more than ten watts, mainly composed of the power consumed by the electronic components on the board (such as signal conditioning circuit components, interface chips, etc.).
Jenny Chan 》》 E-mail: sales3@mooreplc.com 》》 Phone/Whatsapp/Skype: +86 18020714662
Feature
Signal level standard: For input and output signals, specific level standards are followed. For example, digital input signals may use standard TTL (transistor-transistor logic) levels or CMOS (complementary metal-oxide-semiconductor) levels, and digital output signals are also output according to the corresponding standards to ensure correct connection and signal transmission with other compatible devices. At the same time, analog signals have their specific ranges, such as common industrial standard analog signal ranges such as 0-10V or 4-20mA.
Working Mode
Signal acquisition mode: Signals are collected from external devices (such as sensors) through digital and analog input interfaces. Digital signals are directly received and level detection and state judgment are performed, while analog signals undergo a series of signal conditioning processes such as analog-to-digital conversion, filtering, and amplification. After being converted into digital signals, they are stored in the internal cache or directly transmitted to other control devices (such as controllers) to provide various status information (such as equipment status, process parameters, etc.) in the industrial process.
Our industrial automation products are manufactured with quality and understand the main brands we support.
In addition to replacing parts, our experienced employees are always ready to provide any component support you need. Therefore, we will spare no effort to provide you with the necessary industrial automation spare parts at an affordable price.
|
