Part Number:
5X00070G04Weight:
0.3kgDimensions:
12.1 cm x 5.1 cm x 15.2 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

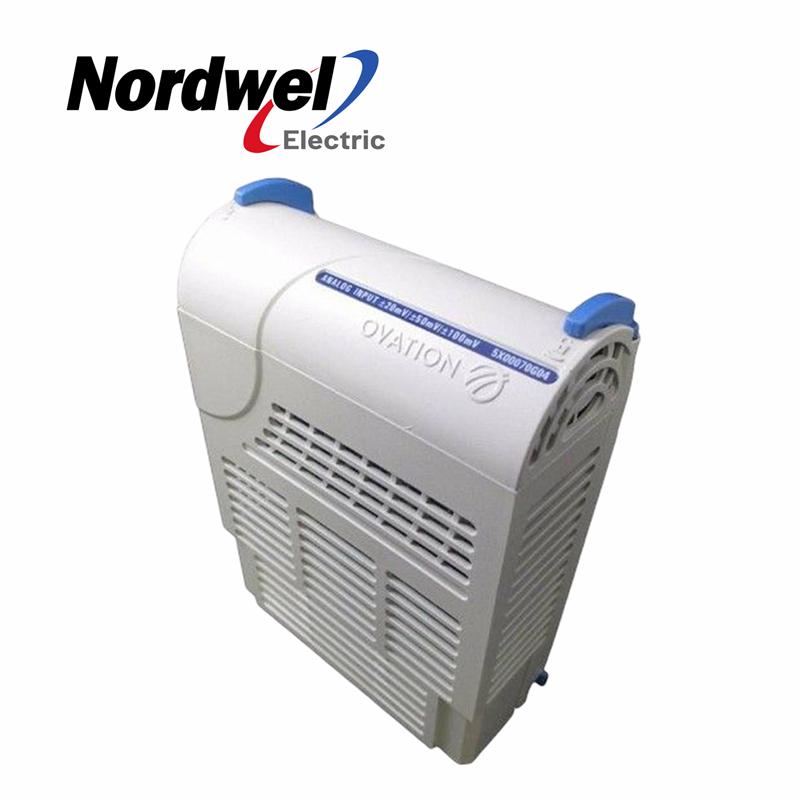

Westinghouse/Ovation 5X00070G04 Ovation™ Analog Input Module
Part Number:5X00070G04
Manufacturer: Westinghouse/Ovation
Status: In stock
Product Type : Fast Hart Analog Input Module
Full description:Emerson Westinghouse/Ovation 5X00070G04 Ovation™ Analog Input Module
Additional Information
8 Channel, 14 Bit, (Med/High Speed) Electronics Module (20, 50 & 100mV)
• 5X00070G04 interfaces to thermocouple inputs ± 20mV, ± 50Vm, ± 100mV.
The combined Personality and Electronics Modules form the High Speed Analog
Input Module. Eight sets of individually isolated input channels provide 14-bit
resolution with 50 or 60 samples per second conversion rates. The input signals are
conditioned and routed through the appropriate Personality Module to the
Electronics Module. The Personality Module also provides surge protection to
protect the input circuits of the Electronics Module. The Electronics Module
performs the analog to digital conversions and provides interfacing to the Ovation Serial I/O Bus.
The 14 bit High Speed Analog Input is applicable for CE Mark certified systems.
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
Emerson’s Ovation™ distributed control system is renowned for delivering precision control with
outstanding performance. That precision begins with the Ovation controller secure, mission-critical
operations such as those of power generation, water and wastewater plants.
The OCR1100 model of the Ovation controller series executes simple or complex modulating and
sequential control strategies, performs data acquisition functions and interfaces to the Ovation
network and various I/O sub-systems. It has the capability to originate up to 32,000 points.
we offer original new with 1 year warrenty
|
