COODescription:

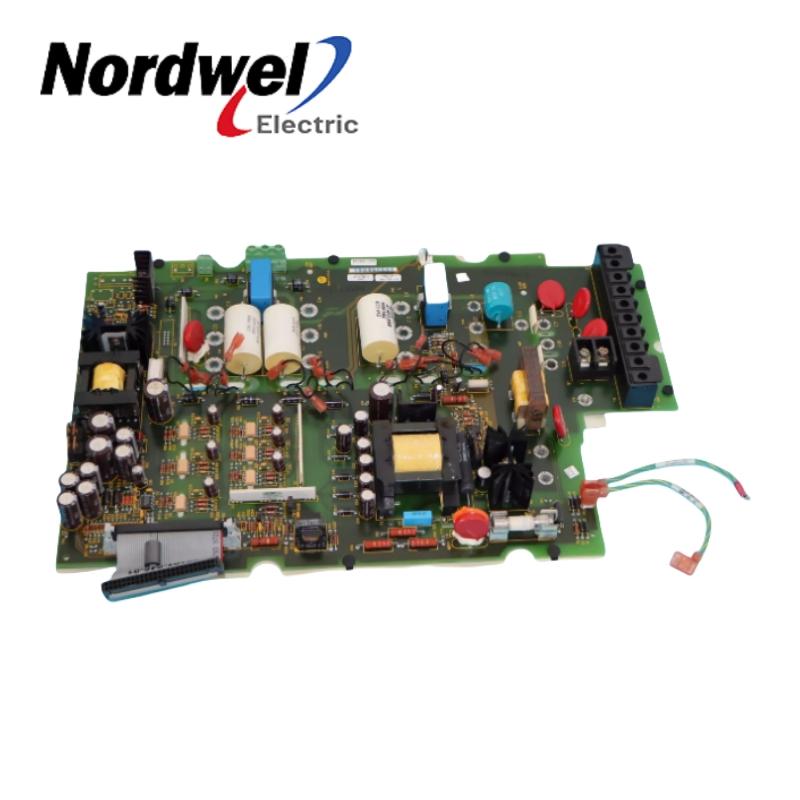

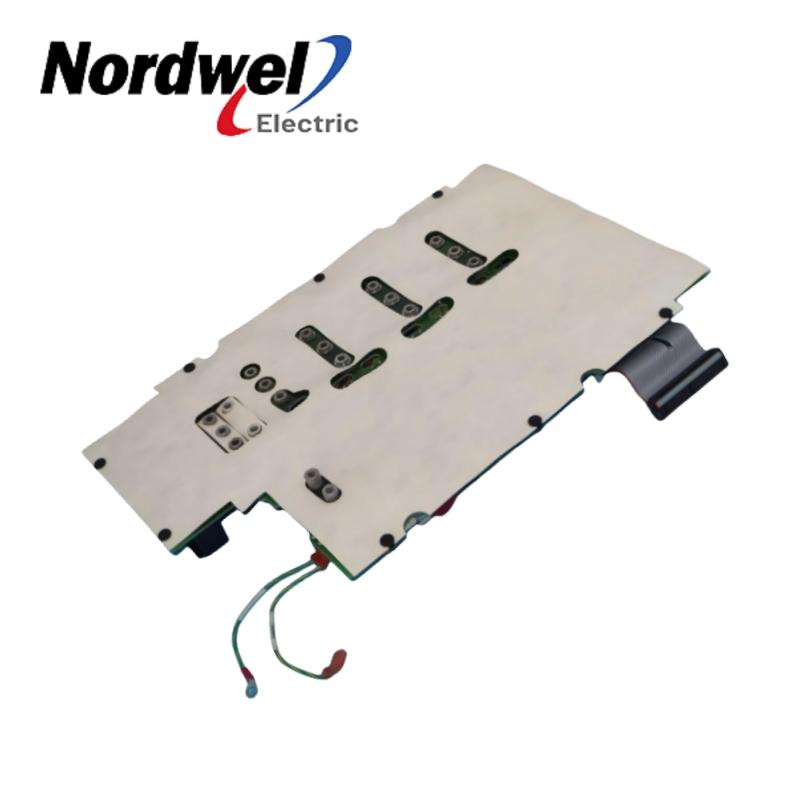

Circuit BoardTechnical Parameters
Type: Interface Model: 1336-BDB-SP1C
Part number: 74103-244-51
Country of Origin: USA.
Condition: Brand new and Original
Input voltage: Typically 220V AC (may vary depending on specific configuration)Type: Circuit board (main board control component)
Compatibility: Allen Bradley 1336 PLUS and 1336 PLUS II variable frequency drives
Operating voltage: 24V DC control power supply
Operating temperature range: 0°C to 50°C (32°F to 122°F)
Storage temperature range: -40°C to 85°C (-40°F to 185°F)
Control power supply voltage: 24V DC
Signal processing: Digital signal processing (for drive control)
Functions: Motor control, feedback signal processing, protection function management
Communication interface: Supports Allen Bradley internal communication protocol and integrates with PLC system
Cooling method: Passive cooling (natural heat dissipation)
Overload protection: With multiple protection functions such as overvoltage, overcurrent, short circuit, etc.
Enclosure protection level: IP20, suitable for use in control cabinets
Application scenarios
Motor control system: widely used in industrial drive control to control the speed, torque and direction of AC induction motors or servo motors.
Automated production line: used in various automated equipment and production lines to provide precise motor control to ensure efficient operation.
Material handling equipment: in conveying systems and lifting equipment, it can provide stable drive control.
Metal processing industry: such as motor drive control of CNC machine tools, punching machines, cutting machines and other equipment.
Pump and fan control: can be used for frequency conversion control in industrial pump and fan systems to improve energy efficiency and system stability.
FAQ
Q1: What devices can the 1336-BDB-SP1C board be used for?
A1: The board is designed for variable frequency drives in the Allen Bradley 1336 PLUS and 1336 PLUS II series and is suitable for drives in different power ranges in these series.
Q2: What is the operating voltage of the board?
A2: The operating voltage of the board is 24V DC and is used for control signal processing and drive operation.
Q3: How to troubleshoot?
A3: The board is equipped with LED indicators and fault code display functions to help users quickly identify and solve common problems. In addition, it is recommended to conduct further fault diagnosis through Allen Bradley's technical manual.
Q4: Does the board support remote monitoring?
A4: The 1336-BDB-SP1C can be remotely monitored and operated by integrating with Allen Bradley's PLC system.
Q5: Does it have short circuit protection function?
A5: Yes, the board has multiple protection functions such as short circuit, overcurrent, overvoltage, etc. to ensure safe system operation.
Q6: What is the typical use environment of this circuit board?
A6: This circuit board is suitable for industrial environments, such as automated production lines, material handling equipment, motor control systems, etc.
