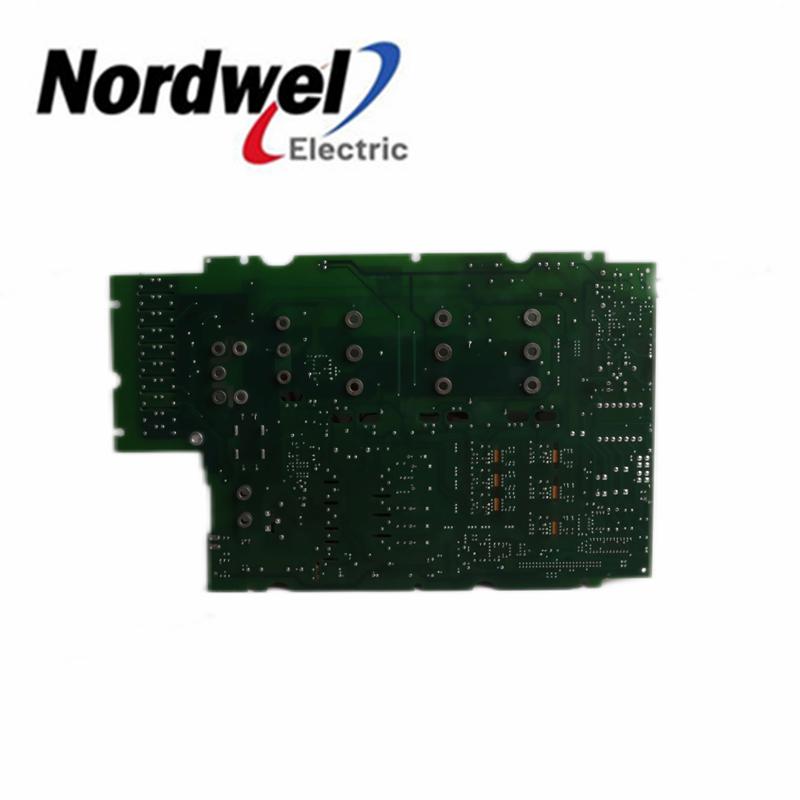

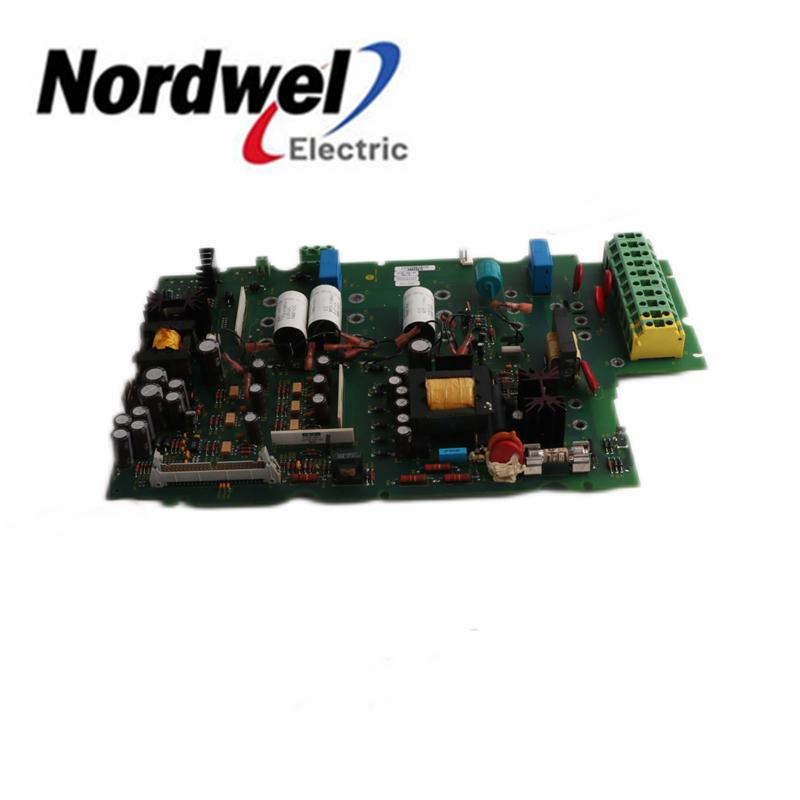

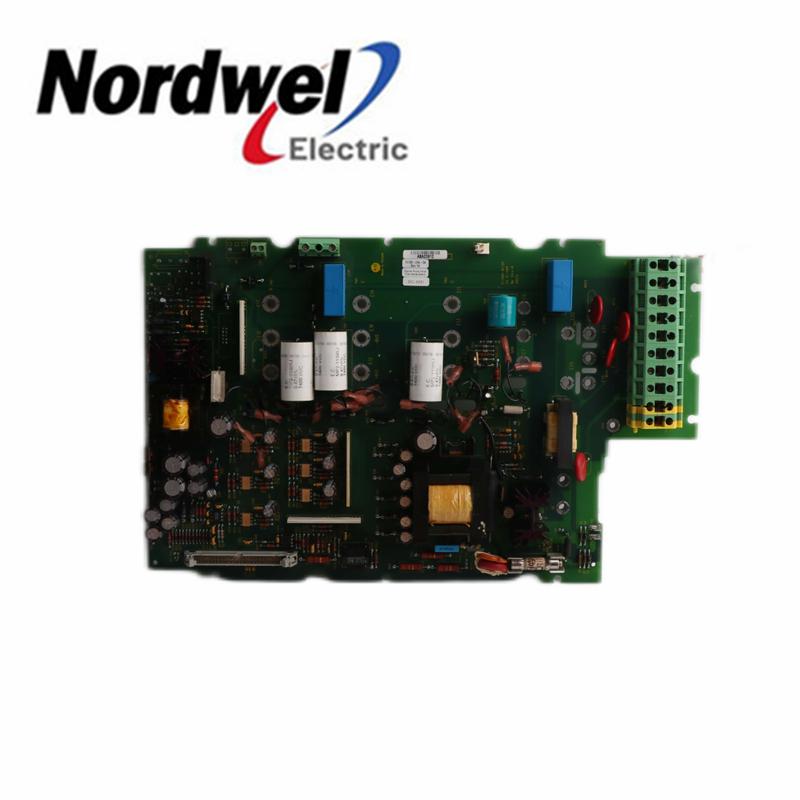

| 1336-BDB-SP4D 74103-244-54 | GATE DRIVE PCB ASSEMBLY


  • Part Number:

    1336-BDB-SP4D 74103-244-54
  • Weight:

    0.9kg
  • Dimensions:

    2.5 cm x 25.4 cm x 15.2 cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    1336-BDB-SP4D 74103-244-54 GATE DRIVE PCB ASSEMBLY

  • The 74103-244-54 (1336-BDB-SP4D) PCB Gate Driver Board is a Gate Driver Board Kit for the 1336 IMPACT, FORCE, and PLUS drives in Series C upward, and 1336 Plus II drives in Series A upward, which amplifies the low-input current in the drive.

  •  It is installed just under the main control board, and it has a power rating of 20HP, at a 3-phase operating voltage of 460V AC.

  • The 74103-244-54 has 7 jumper connectors (J2, J6, J7, J8, J9, J10, and J13) which directly connect to connector from the base driver board, and main control board, and it has Terminal Strip TB4, which is used as an auxiliary 24V DC input
