Payment:
T/TPart Number:
1336S-B007-AE-DE4Weight:
15.9kgDimensions:
260 x 350 x 212 (max) mmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
DriveTechnical Parameters

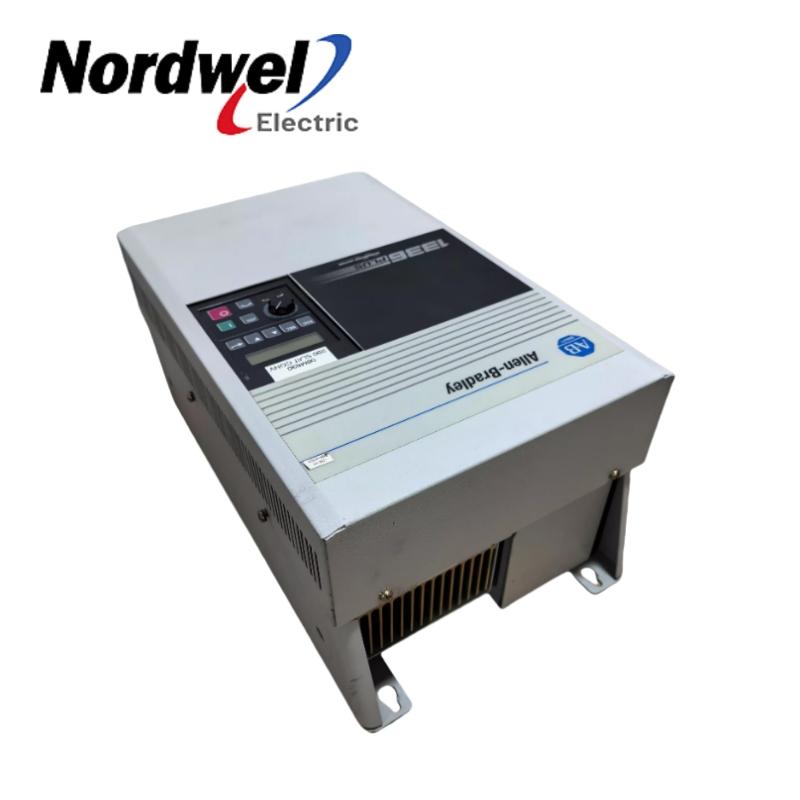

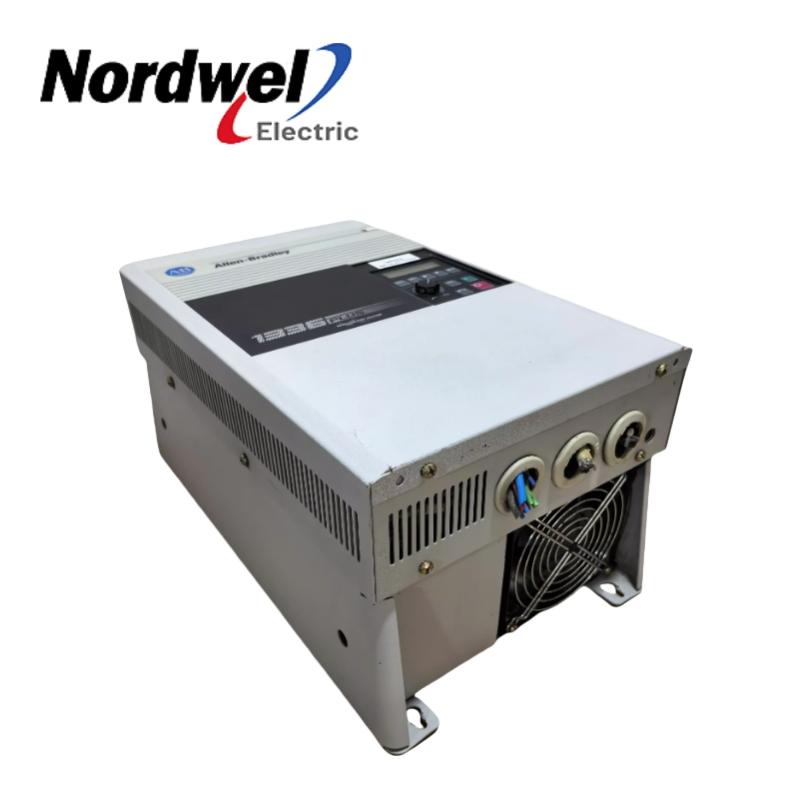

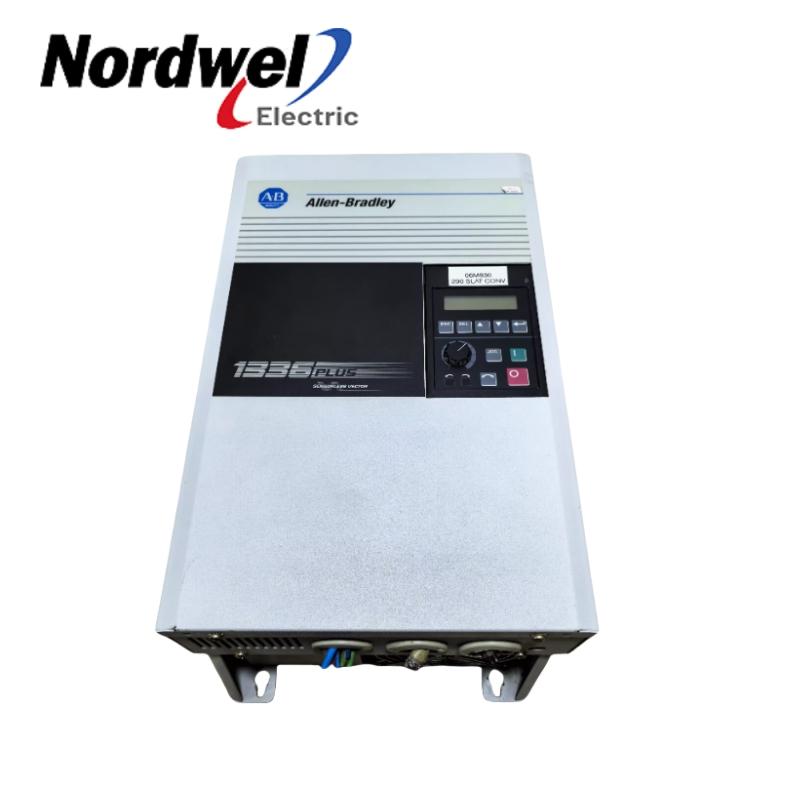

Part number: 1336S-B007-AE-DE4
Country of Origin: USA.
Condition: Brand new and Original
Input voltage: Typically 220V AC (may vary depending on specific configuration)Type: Adjustable frequency drive
Power supply: Three-phase AC
Rated power: 7.5 HP (5.5 kW)
Input voltage: 380-480 V AC
Output voltage: 380-480 V AC
Output frequency range: 0-400 Hz
Control type: V/f control or vector control
Cooling: Air cooling
Dimensions: Approx. 10.7 x 6.5 x 10.5 in. (272 x 165 x 267 mm)
Input current: 12.5 A (at 480V)
Efficiency: Up to 97%
Ambient temperature: -10°C to 50°C
Storage temperature: -40°C to 70°C
Insulation class: NEMA 1
Communication interface: RS-232, RS-485 options (optional)
Overload capability: 150% rated current for 60 seconds
Protection class: IP20
Enclosure protection level: IP20, suitable for use in control cabinets
Feature
High-performance control: Provides precise speed control for a variety of applications.
Flexible installation options: Can be installed horizontally or vertically to adapt to different installation spaces.
User-friendly operation interface: Provides a simple and easy-to-use keyboard and display for user settings and monitoring.
Multiple protection functions: Including overcurrent, overvoltage, and overload protection to improve system safety.
Scalability: Supports a variety of expansion modules to meet different needs.
FAQ
Q1: Can the 1336S-B007-AE-DE4 drive be used with motors of different brands?
A1: Yes, the 1336S drive can be used with motors of various brands, but it is recommended to use compatible motors to ensure optimal performance.
Q2: How do I set the parameters of the drive?
A2: The drive is equipped with a user-friendly operation interface. You can set it up through the keyboard or perform advanced configuration through the software.
Q3: What communication protocols does the drive support?
A3: The drive supports RS-232 and RS-485 communication interfaces. You can choose the appropriate expansion module according to your needs.
Q4: How do I troubleshoot?
A4: The operation interface of the drive will display the fault code. You can troubleshoot according to the troubleshooting guide provided in the manual.
