Part Number:
1606-XLP30EWeight:
0.66KGDimensions:
6*12*13cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

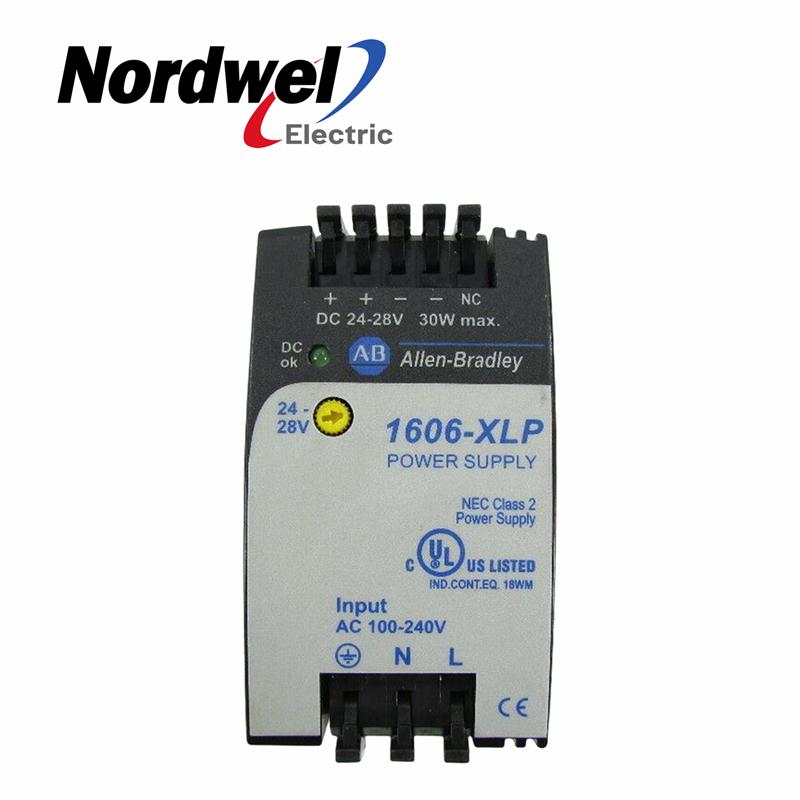

1606-XLP30E Bulletin 1606-XLP single-phase compact power supply
Description:
The 1606-XLP30E power supply is an Bulletin 1606-XLP single-phase compact power supply
module that is ideal for applications with low power requirements. It is normally used for parallel operation.
The 1606-XLP30E power supply module has input voltage ratings of 100 to 240 Volts AC and 85 to 375 Volts
DC and an output voltage rating of 24 to 28 Volts DC. Additional output ratings of the 1606-XLP30E power supply
include 30 Watts of output power and 1.3 Amps of output current. This power supply can save critical installation
space for other devices around it because it is manufactured to be as compact as possible.
Technical Specifications for 1606-XLP30E
Product Type Switched Mode Power Supply
Input Voltage 100-240V AC
Output Power 30W
Output Current 1.3A
Terminals Screw/Spring Clamp
Signal DC-OK
Output Voltage Adjustable
Size Compact
Heat Generation Minimal
