Part Number:
170947 170948 129708-02 M003325108Weight:
0.32 kgDimensions:
26x17.7x4cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:

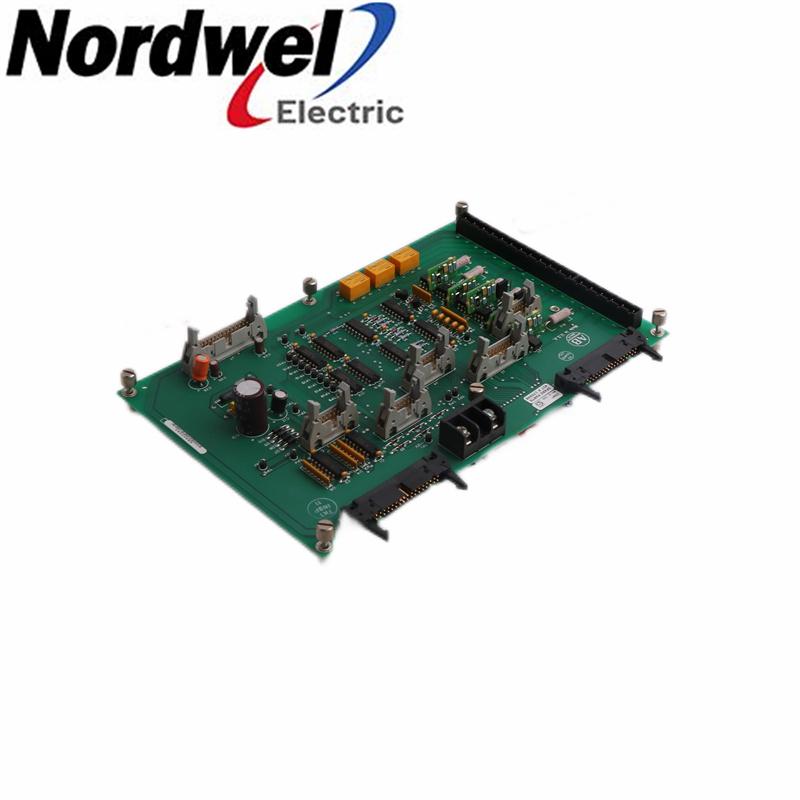

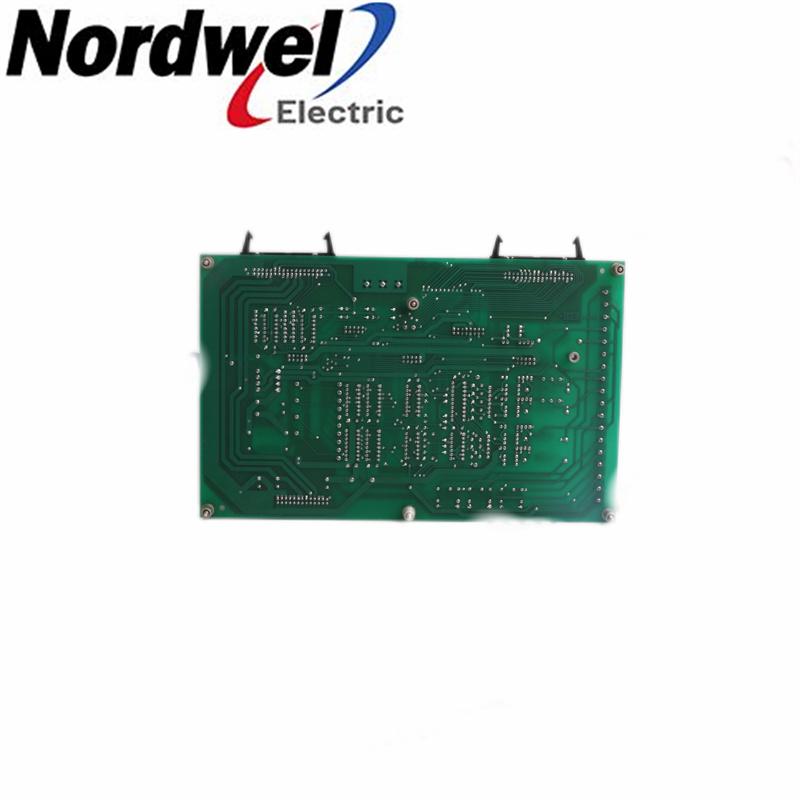

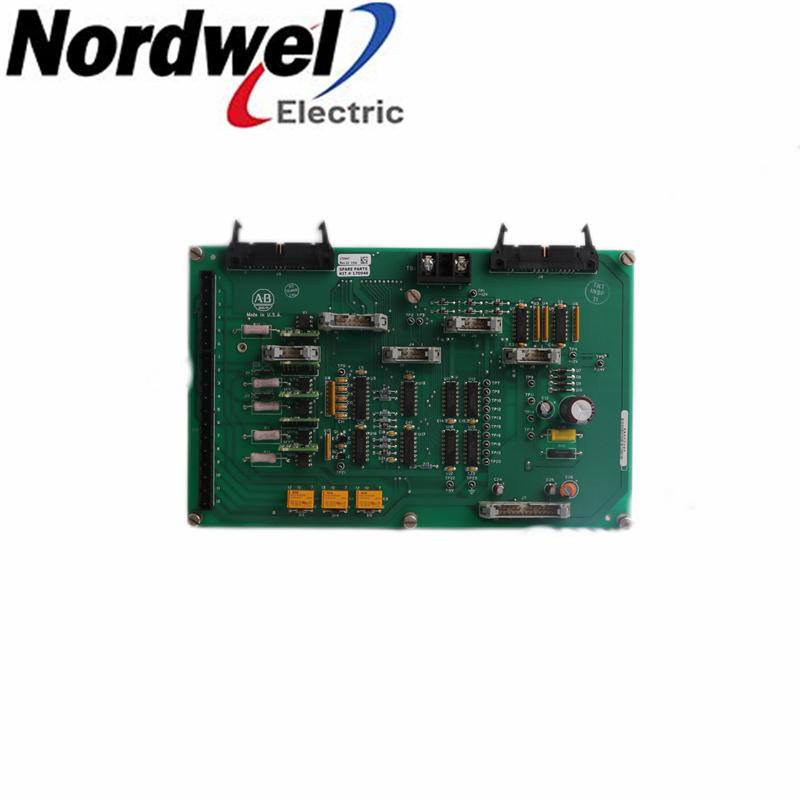

| 170947 170948 129708-02 M003325108 | Power Stage Interface BoardProduct Details
1. Connect individual output wiring to numbered terminals on the 0…15 row as indicated in the
accompanying table (1794-OB16P terminals 0…15, 1794-OB8EPXT- even numbered terminals 0…14).
2. Connect the associated -V output common to the corresponding terminal on the 16-33 row (B)
for each output as indicated in the accompanying table. (Commons are internally connected together.)
For 1794-OB8EPXT, connect associated output common to odd-numbered terminals on row A or associated terminals on row B.
3. For -IB10XOB6XT, connect the associated +V DC power lead of the input device to the corresponding
terminal on the 34-51 row
(C) for each input as indicated in the table . (The +V power terminals of row (C) are internally
connected together.)
4. For -IB10XOB6XT, connect the associated input device common (3-wire devices only) and
output device common to the corresponding terminals on the 16-33 row. (B) for each input
and output as indicated in the table below. (Commons are internally connected together.)
