1738-IB16DM12
1738-IB16DM12
1738-IB16DM12

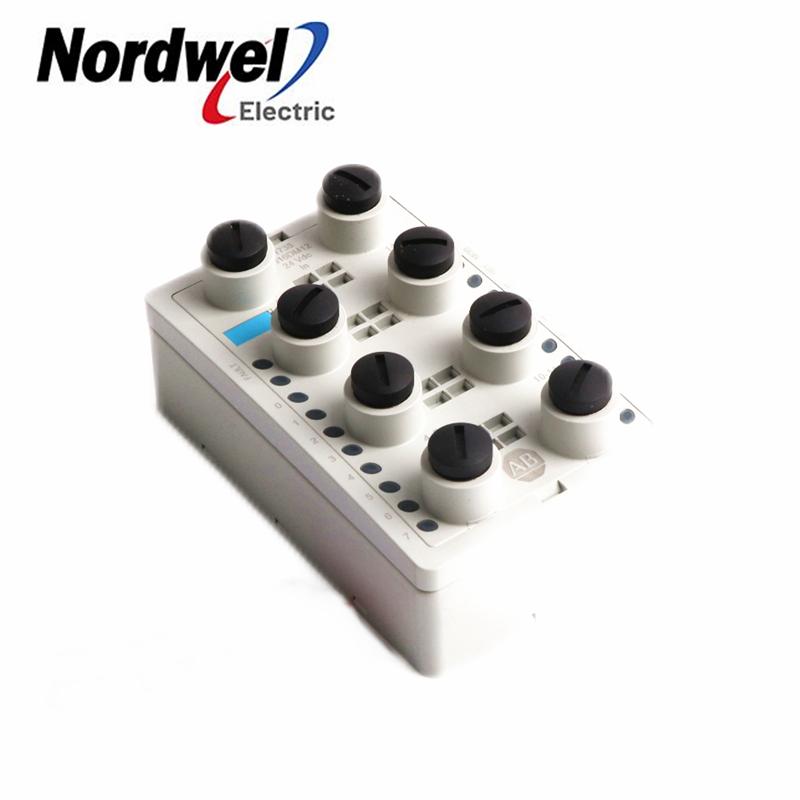

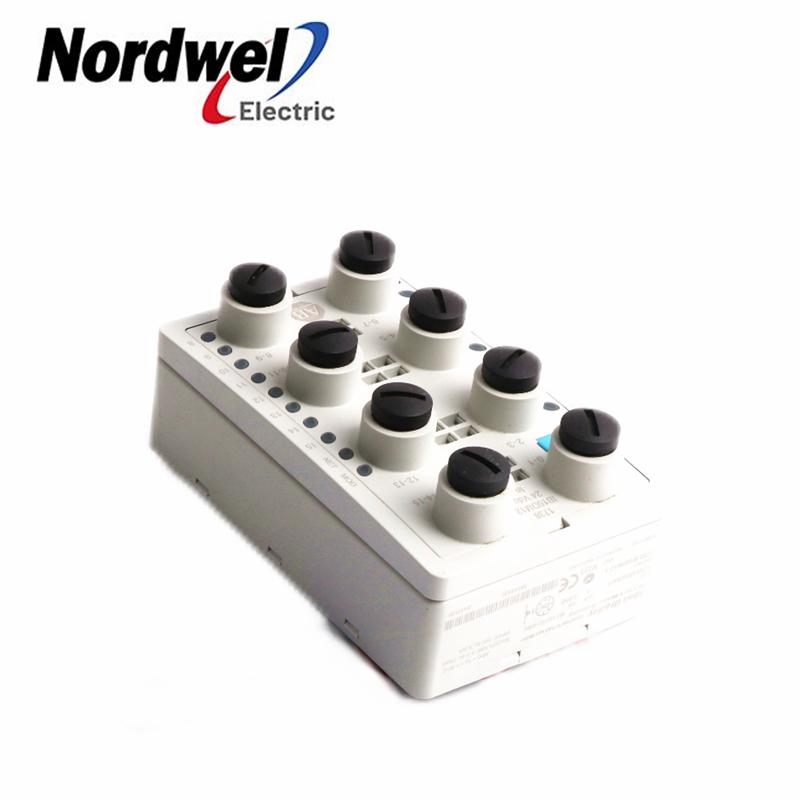

|1738-IB16DM12 | Digital Input Module


  • Part Number:

    1738-IB16DM12
  • Weight:

    0.45kg
  • Dimensions:

    12cmx 7.2cm x 4.2cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    1738-IB16DM12 Digital Input Module | ArmorPoint

The 1738-IB16DM12 Module is an ArmorPoint 24 Volt Series-A Input Module.

It has 16 non-isolated inputs and 5 Volts of off-state voltage.

This input module has an enclosure rating that meets the IP 65, 66, 67, and 69K standards (when marked).


Technical Specifications for 1738-IB16DM12

Brand                                          / Automation

Series                                          ArmorPoint Modules

Part Number                               1738-IB16DM12

Inputs per Module                       1 Group of 16, Nonisolated

Minimum On-State Voltage         10 Volts

Nominal On-State Voltage           24 Volts

Maximum On-State Voltage        28.8 Volts

Off-State Voltage                         5 Volts

Off-State Current                         1.5 Milliamps

Maximum Sensor Source Current per Input       50 Milliamps

Maximum Sensor Source Current per Module   800 Milliamps

Field Power Supply Voltage Range                   10...28.8 Volts

Enclosure Type Rating                                       Meets IP65/66/67/69K (when marked)

Operating Temperature Range                          -4 to 140 degrees Fahrenheit

Storage Temperature Range                             -40 to 185 degrees Fahrenheit

Emissions                                                          Group 1, Class A


Manager Steve quotes to you

 cn@mooreplc.com            +8618005028963


  +86-18005028963             +86-18005028963

  1. Fast delivery:
  2. Various payment:
  3. Long warranty: we offer original new with 1 year warrenty
  4. Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
