1756-CN2R/B

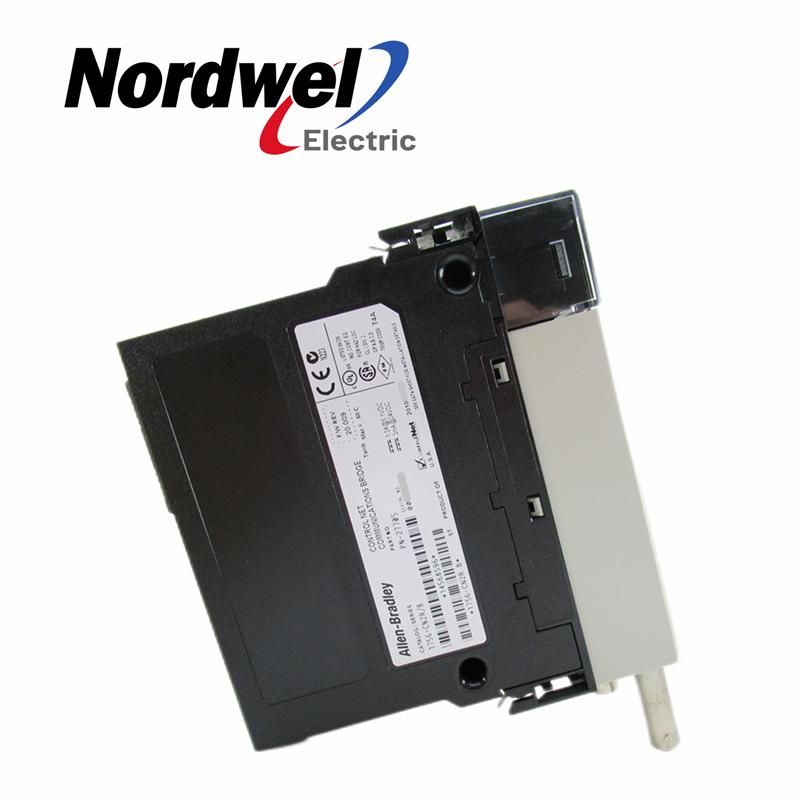

| 1756-CN2R/B | ControlLogix communication module


  • Part Number:

    1756-CN2R/B
  • Weight:

    1.44kg
  • Dimensions:

    14.3*13.7*7.5cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    1756-CN2R/B ControlLogix communication module


Description: The 1756-CN2R is a communication module from the ControlLogix

 controller platform. This module features Two (2) ControlNet BNC port that supports 5 Mbps

 transmission speed and One (1) USB communication port that supports 12Mbps data rate.

This ControlNet module supports redundant ControlNet topology. Up to 128 Logix connections

can be established with this module.




Technical Description of 1756-CN2R

The 1756-CN2R is a ControlNet communication module that is part of the ControlLogix

product family. This module has redundant ControlNet ports that supports implementation of linear or

 redundant ControlNet network topology. Each port is capable of up to 5 mbps transmission speed, up

 to 128 logix communication connections, 131 connections and up to 99 nodes. This module is installed

to a local or remotely located 1756 ControlLogix chassis and draws backplane current amounting to 1300

mA @ 5VDC and 3 mA @ 24VDC.
