Part Number:
1756-IB16IFWeight:
1.4kgDimensions:
5.1 cm x 12.7 cm x 27.9 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

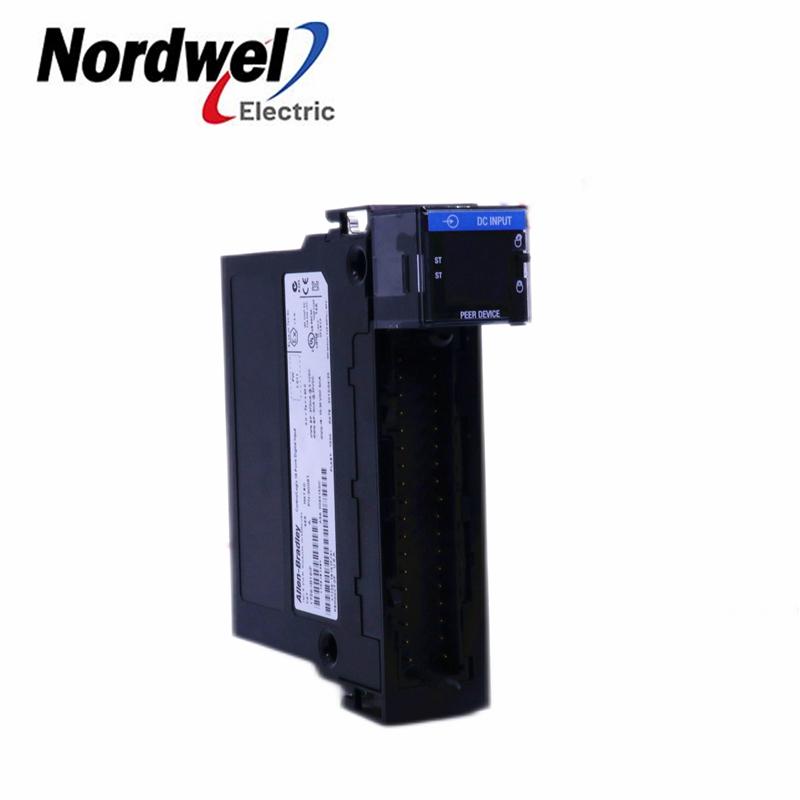

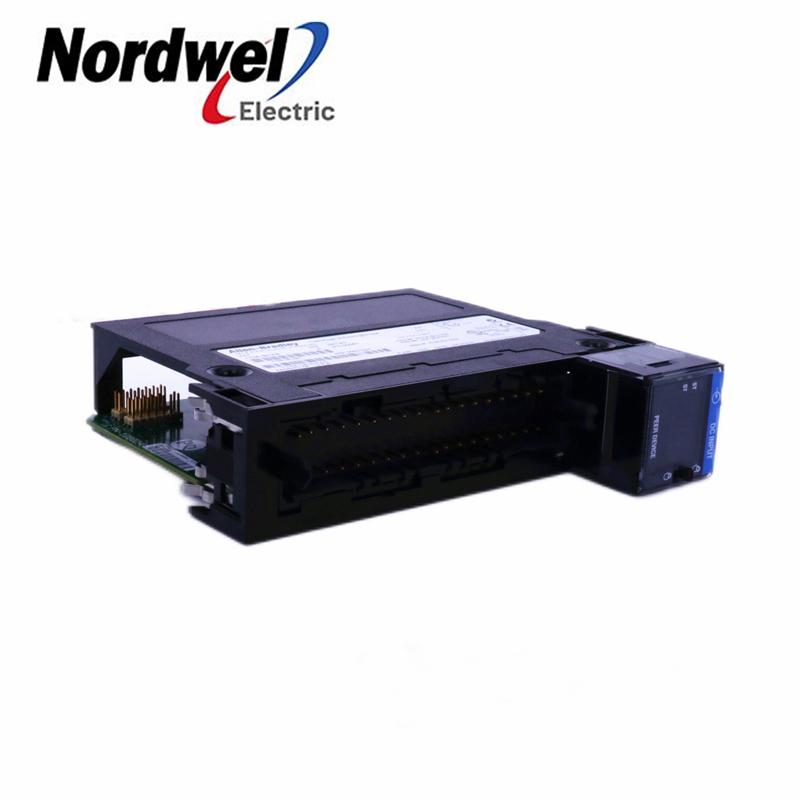

1756-IB16IF ControlLogix Isolated Input Module 10-30VDC 16-P
Technical Specifications for 1756-IB16IF
Manufacturer Automation
Brand
Part Number/Catalog No. 1756-IB16IF
Series ControlLogix
Module Type Fast Digital DC Isolated Input
Inputs 16 Individually Isolated
Input Voltage 12-24 Volts DC
Operating Voltage Range 10-30 Voltage DC
Input Delay Time 14 microseconds plus selected filter time
Current Draw (5.1 Volts) 275 milliamps
Current Draw (24 Volts) 3 milliamps
Power Dissipation 3.8 Watts
Thermal Dissipation 12.97 BTU per hour
Backplane Current 1.47 Watts
Removeable Terminal Block(s) 1756-TBCH, 1756-TBS6H
Manager Steve quotes to you
cn@mooreplc.com +8618005028963
|
|
|
