1756-IB16ISOE
1756-IB16ISOE
1756-IB16ISOE

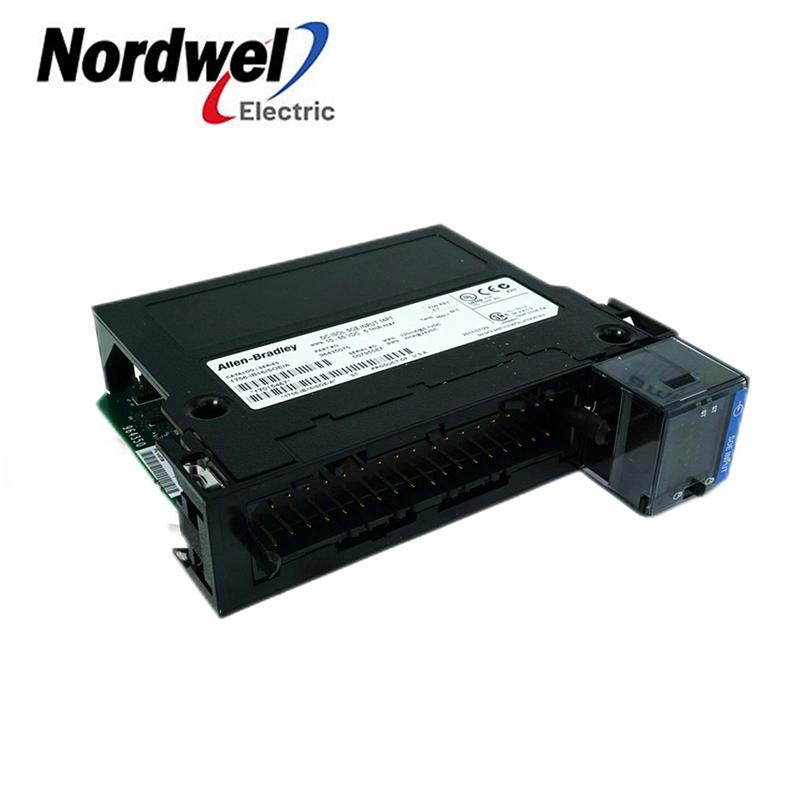

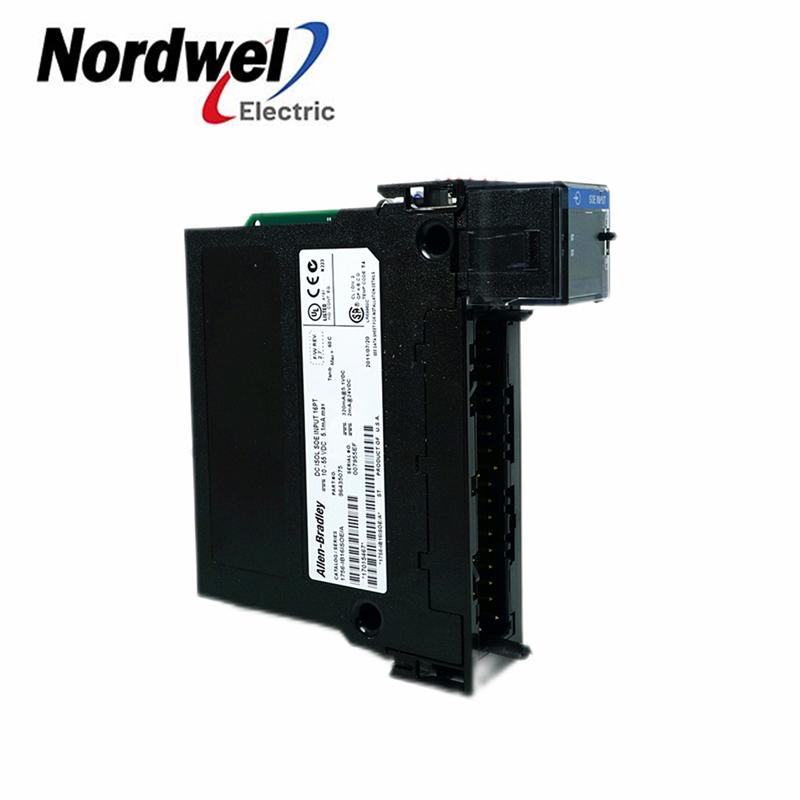

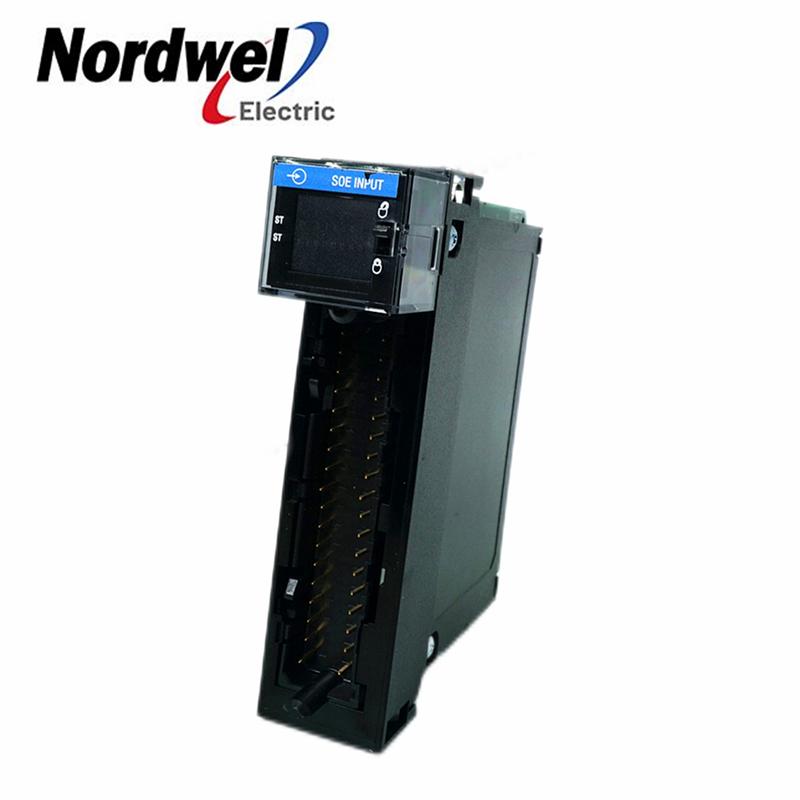

|1756-IB16ISOE| Input Module


  • Part Number:

    1756-IB16ISOE
  • Weight:

    0.2kg
  • Dimensions:

    3.8 cm x 15.2 cm x 14.0 cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    1756IB16ISOE ControlLogix Sequence of Event Input 24/48V DC 16-Ch

Introduction: Input Module | ControlLogix

Enclosure type:                                      None (open-style)

Inputs:                                                    16 individually isolated, sequence of events

Voltage category:                                   24/48V DC sink/source

Operating voltage range:                       10-55V DC

Input voltage, nom:                                 24V DC

Current draw @ 5.1V:                             320 mA

Current draw @ 24V:                              2 mA

Total backplane power:                           1.7 W

Power dissipation, max:                          5.5 W @ 60 C (140 F)

Thermal dissipation:                                17.22 BTU/hr

Isolation voltage:                                     250V (continuous) inputs-to-backplane | 125V (continuous) input-to-input

Reverse polarity protection:                    Yes



Manager Steve quotes to you

 cn@mooreplc.com            +8618005028963


  +86-18005028963             +86-18005028963

  1. Fast delivery:
  2. Various payment:
  3. Long warranty: we offer original new with 1 year warrenty
  4. Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
