Part Number:
1756-IF16/AWeight:
0.35kgDimensions:
23.5*18.3*5.3cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

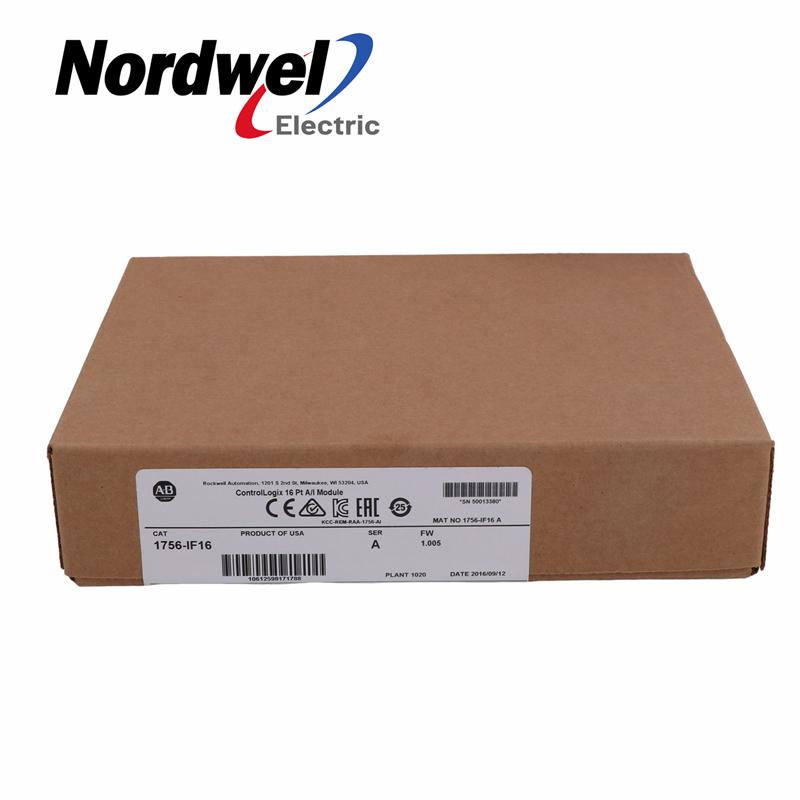

1756-IF16/A ControlLogix Analog Input Module
Description: The 1756-IF16/A is a ControlLogix module that features Sixteen (16) single ended
or Eight (8) Differential or Four (4) differential high-speed analog input channels. This module supports input
signal ranges of ±10V, 0-10V, 0-5V and 0-20 mA with resolution of 320 µV/count (15 bits + sign bipolar) @ ±10.25V;
160 µV/count (16 bits) @ 0-10.25V; 80 µV/count (16 bits) @ 0-5.125V and 0.32 µA/count (16 bits) @ 0-20.5 mA.
This module is used with 1756-TBCH or 1756-TBS6H Removable Terminal Block (RTB).
Technical Specifications for 1756-IF16/A
1756-IF16 ControlLogix Analog Input Module with 16 single, 8 differentials, 4 highspeed differential
Inputs. Voltage and current ratings of Backplane are 5.1 VDC 150 mA, and 24 VDC 65 mA. Maximum Input Current,
Off-State of 1.5 milliamperes.
