1756-IF8I

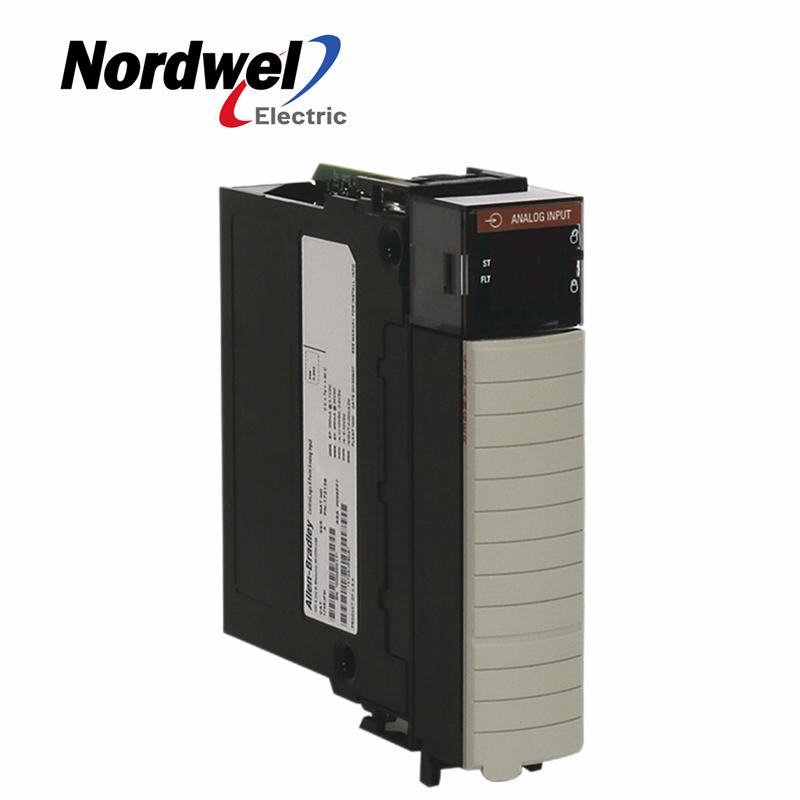

| 1756-IF8I | ControlLogix analog input module


  • Part Number:

    1756-IF8I
  • Weight:

    0.35kg
  • Dimensions:

    23.5*18.3*5.3cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    1756-IF8I ControlLogix analog input module

Long Description:

Description: The 1756-IF8I is a ControlLogix analog input module. It has Eight (8) individually isolated

current and Voltage input channels compatible for input signal range of ±10.5V, 0 -10.5V, 0-5V and 0-21 mA.

It has a resolution of 24 bits and compatible for use with 2-Wire and 4-Wire transmitters.



Technical Specifications for 1756-IF8I


Series ControlLogix

Channels 8 Isolated Channels

Module Type Analog Input

I-O Ranges 0-10 Volts

Inputs 8-Points, Isolated , Any combination of Voltage or Current mode

Conversion Method Sigma-Delta

Current Draw (5.1 Volts) 200 milliamps

Data format IEEE 32-bit floating point

Manager Steve quotes to you

 cn@mooreplc.com            +8618005028963


  +86-18005028963             +86-18005028963

  1. Fast delivery:
  2. Various payment:
  3. Long warranty: we offer original new with 1 year warrenty
  4. Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
