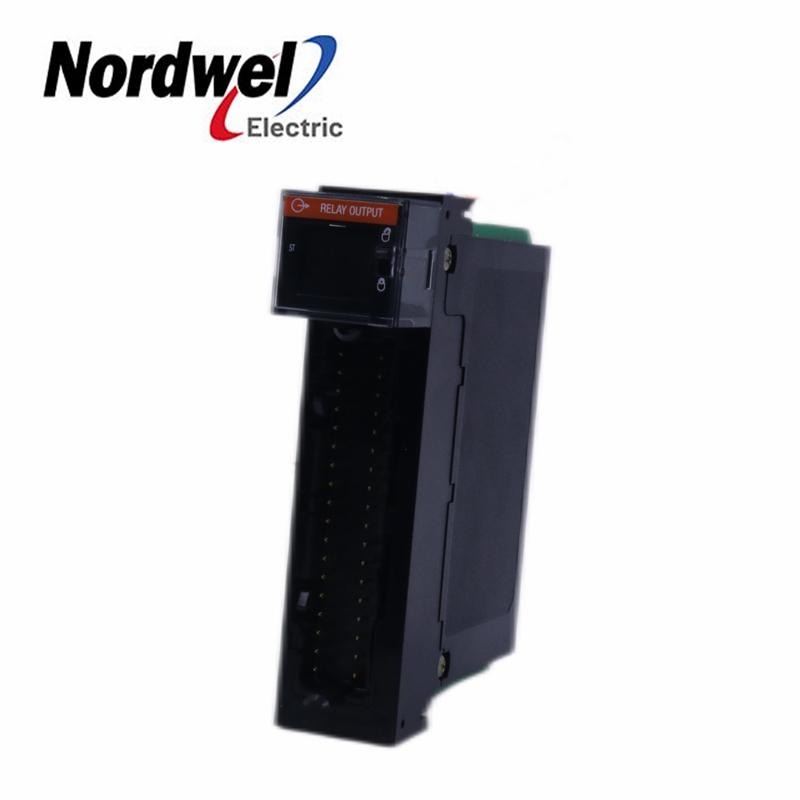

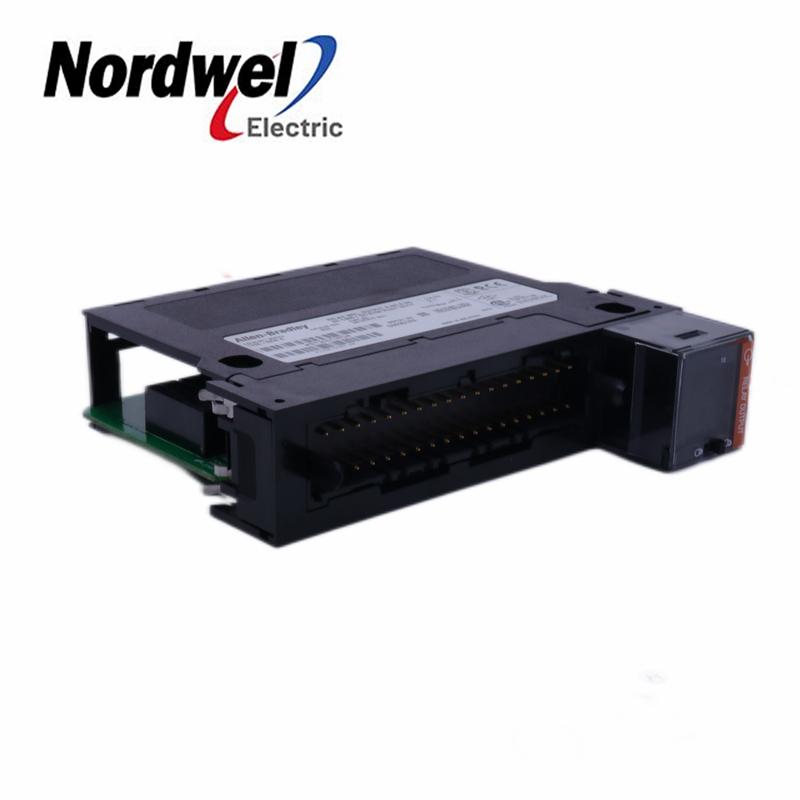

|1756-OX8I| Output Module


  • Part Number:

    1756-OX8I
  • Weight:

    0.3KG
  • Dimensions:

    3.8 cm x 15.2 cm x 14.0 cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    1756-OX8I ControlLogix 8-Ch AC/DC Isolated Relay Output Module

The 1756-OX8I is a ControlLogix Discrete output module which operate at a voltage category of 5 to 125VDC and

 10 - 240 VAC. This module has Eight (8) Normally Open (N.O) and Eight (8) Normally Closed (N.C) contact outputs.

This module is directly installed to a 1756 local or remote chassis.


Technical Specifications for 1756-OX8I

Manufacturer                                    Automation

Brand

Part Number/Catalog No.                1756-OX8I

Series                                              ControlLogix

Outputs                                            8-Point Individually Isolated

Module Type                                    Isolated Relay Output Module

Output Current                                 2, 0.5, 0.25 Amps

Contact Output                                Form C contacts

Operating Voltage                           10-265 Volts AC, 5-150 Volts DC

Maximum Switching frequency       1 operation/3 s (0.3 Hz at rated load)

Mean Bounce Time                         1.2 ms

Removeable Terminal Block(s)       1756-TBCH, 1756-TBS6H

Maximum Output Delay Time          13 milliseconds

Expected contact life                       300 kHz resistive; 100 kHz inductive

Backplane Current at 5 Volts          100 mA

Power Dissipation (Max)                 3.1 Watts at 60 Celsius

Enclosure                                        None

Isolation Voltage                             250V (continuous), basic insulation type, outputs-to- backplane, and

output-to-output
