Part Number:
1769-L30ERMWeight:
0.2kgDimensions:
5.7 cm x 13.3 cm x 10.2 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

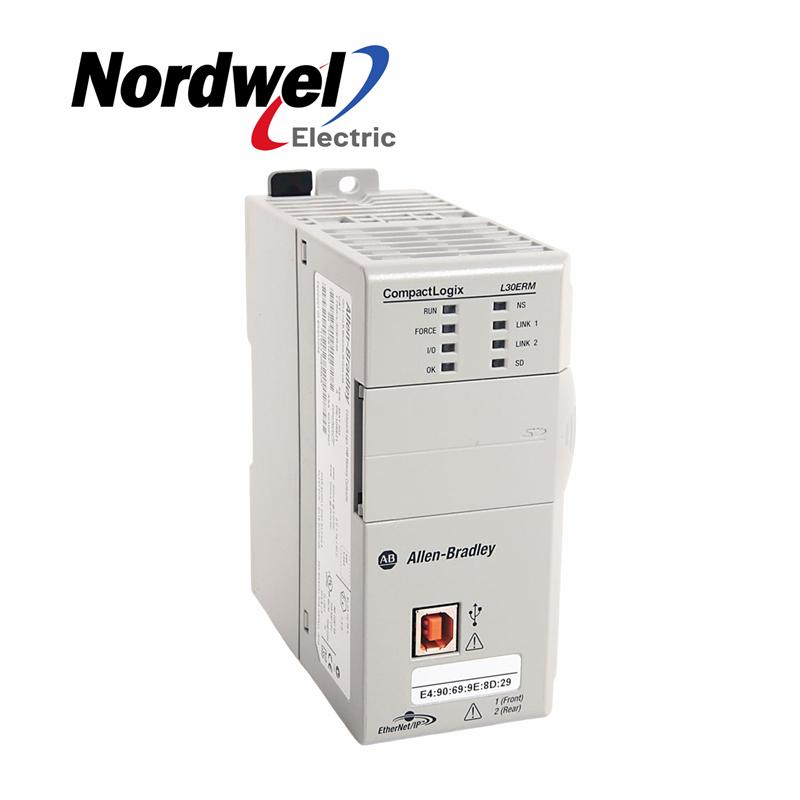

1769-L30ERM CompactLogix 5370 Ethernet Controller
Description: The 1769-L30ERM is a CompactLogix packaged controller from the 5370 CompactLogix
family. This controlled has embedded 1MB memory, Two (2) Ethernet communication ports, and One (1) USB port.
It supports up to Eight (8) Compact I/O modules and supports Three (3) expansion banks. This controller supports
up to Four (4) motion axes.
Technical Description of 1769-L30ERM
This CompactLogix module has Dual Ethernet with DLR enabled, 1MB capacity of memory, 8 I/O
extension, 16 Ethernet Nodes/Channels, 4 Axis CIP motion with Kinematics function. This processor can support up
to 256 connections. This controller has a current draw of 500 mA at 5VDC and a max power dissipation of 4.5 W.
