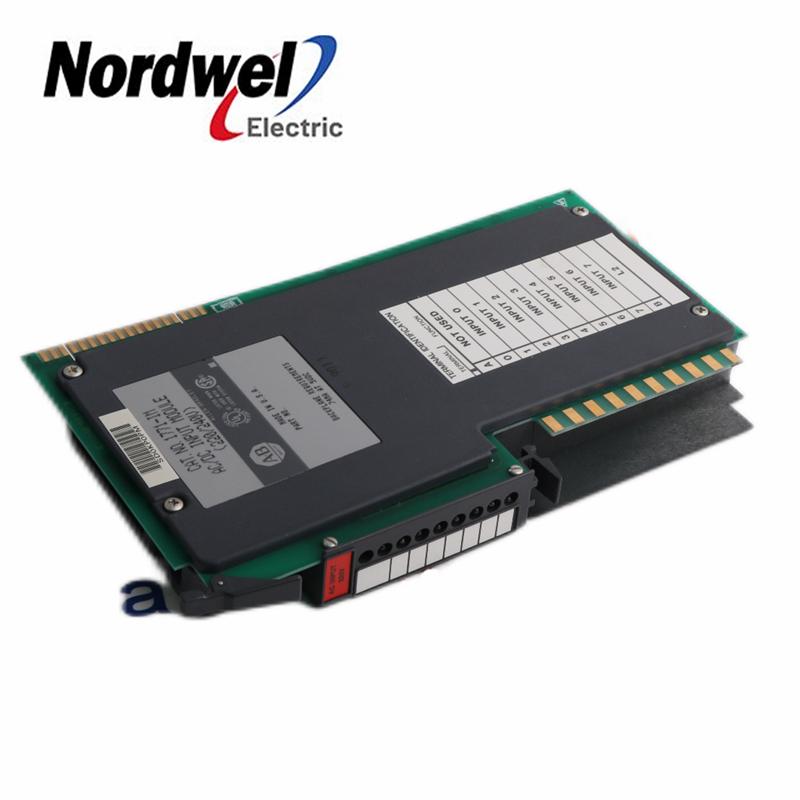

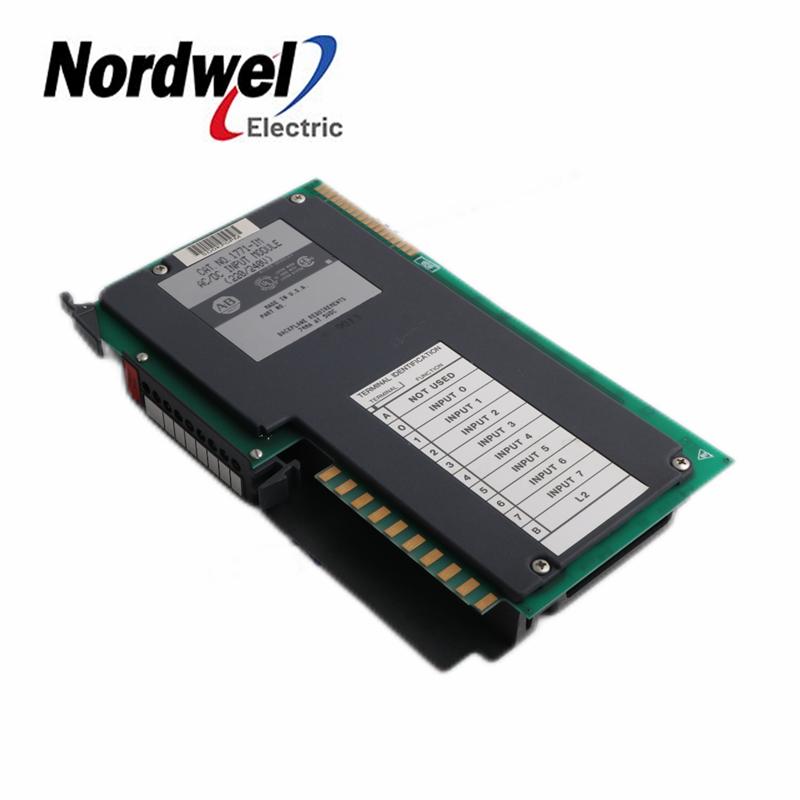

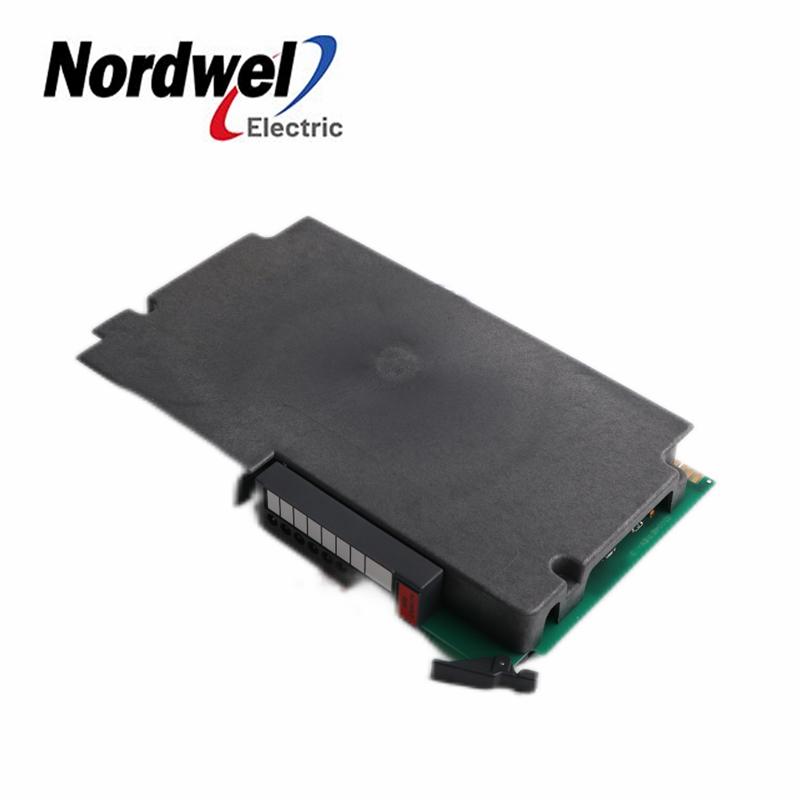

|1771-IM| Input Module


  • Part Number:

    1771-IM
  • Weight:

    0.5 kg
  • Dimensions:

    2.5 x 25.4 x 15.2 cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    1771-IM PLC-5 Digital Input Module, 220/240V AC/DC, 8 Input, Wiring Arm: 1771-WA

The 1771-IM input module from is a PLC 5 series digital input module. It can operate with both AC

 and DC input voltage. The 1771-IM digital input module has 8 inputs for receiving signals from up to 8 devices at

 a time. The voltage category of this digital input module is 220 Volts AC/DC. The 1771-IM AC/DC digital input

 module can operate with 184 to 276 Volts AC voltage or with 184 to 276 Volts DC voltage.


Technical Specifications for 1771-IM

Manufacturer                                                  Automation

Brand

Part Number/Catalog No.                              1771-IM

Module Type                                                  Digital AC/DC Input Module

Number of Inputs                                           8 Inputs

Voltage Category                                           220 Volts AC/DC

AC Operating Voltage                                   184-276 Volts

DC Operating Voltage                                   184-276 Volts

Backplane Current                                        75 Miliamperes

Max AC Off-State Current                             1.0 Miliameres

Max DC Off-State Current                             1.0 Miliameres

Typical AC Signal Delay (On)                        20 (+/- 6) ms

Typical DC Signal Delay (On)                       10 (+/- 4) ms

Typical AC Signal Delay (Off)                        20 (+/- 6) ms

Typical DC Signal Delay (Off)                        20 (+/- 9) ms

Wiring Arm                                                     1771-WA

Mounting                                                        Rack Mountable
