Part Number:
1788-CN2FFWeight:
1.4 kgDimensions:
15.2 cm x 25.4 cm x 40.6 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

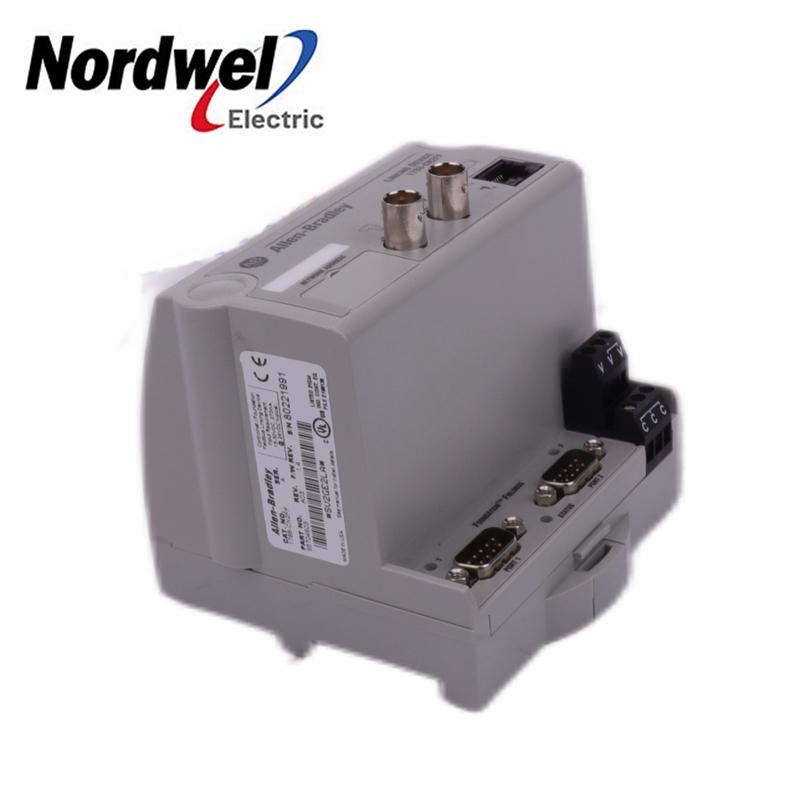

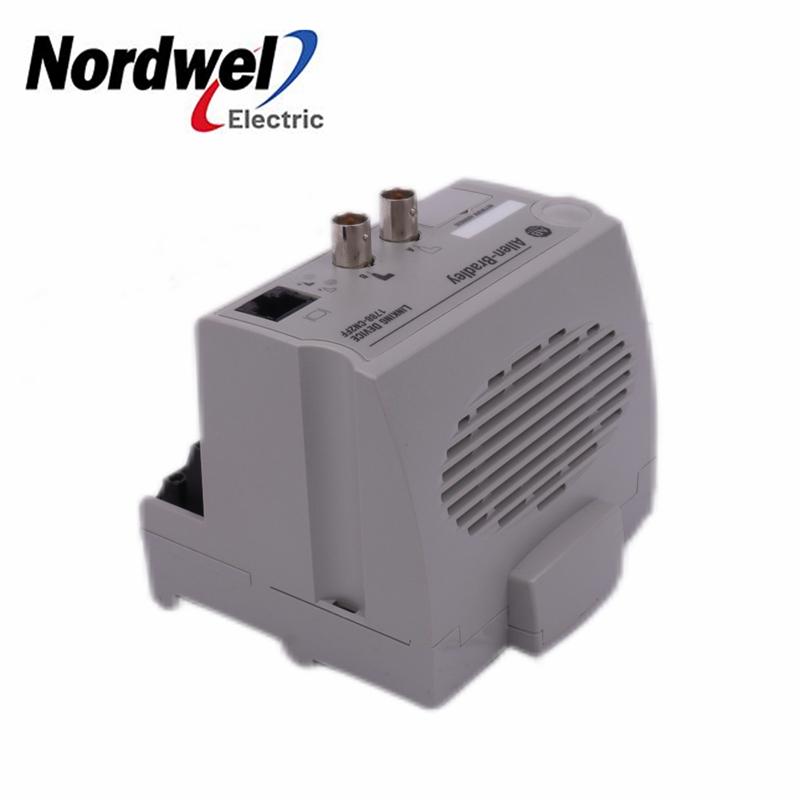

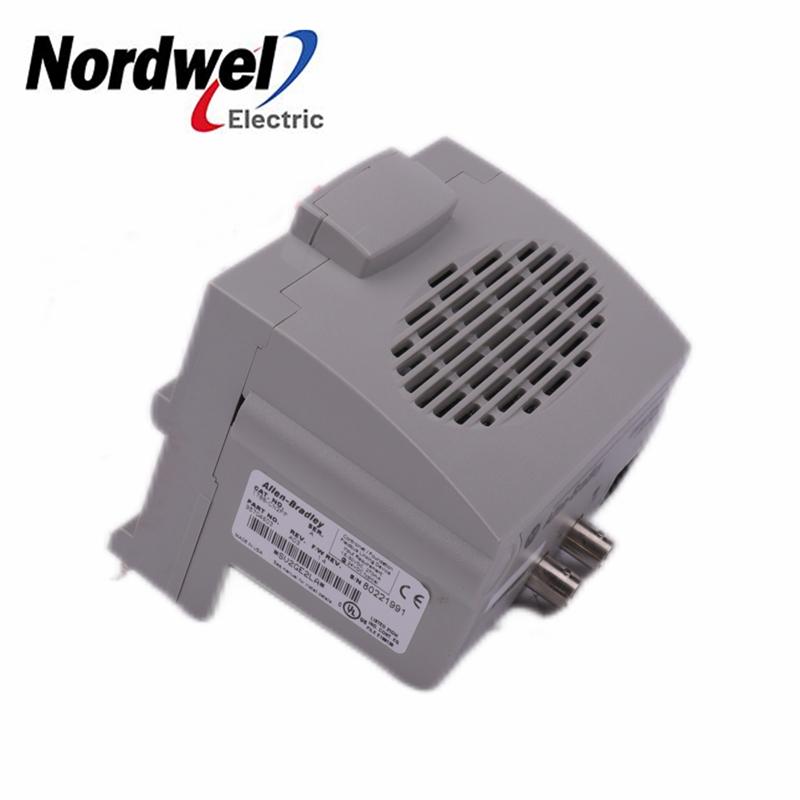

1788-CN2FF Foundation Fieldbus Linking Device
Long description:
The 1788-CN2FF linking device connects the ControlNet network and all of its devices to all
of the devices in either 1 or 2 Foundation Fieldbus H1 networks. It can be used to create a redundant
ControlNet network setup.
Technical Specifications for 1788-CN2FF
Part Number 1788-CN2FF
Product Type ControlNet-to-FOUNDATION Fieldbus Linking Device
Power 11-30V DC
Power 270 mA @ 24V DC
Communication ControlNet
Communication FOUNDATION Fieldbus
BNC Connector ControlNet
Network Access Port RJ45
Fieldbus Connector Type 9-pin sub-D
Mounting 35 mm DIN rail
The Foundation Fieldbus linking device facilitates distributed control by
adding Foundation Fieldbus support to your ControlLogix system. You can
have one linking device per ControlNet tap. The linking device:
• connects to two, independent Fieldbus H1 networks
• mounts on a 35mm DIN rail
• supports closed-loop control
Process variables published on Foundation Fieldbus are subscribed by the
linking device and then produced on the ControlNet network at the network
update time. Scheduled data from a linking device can go to a
ControlLogix controller every 2 milliseconds. Conversely, process
variables produced by a ControlNet device can be consumed by the linking
device and subscribed by other Foundation Fieldbus devices
