Part Number:
1794-IB16DWeight:
0.1kgDimensions:
9.5 cm x 4.4 cm x 5.7 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

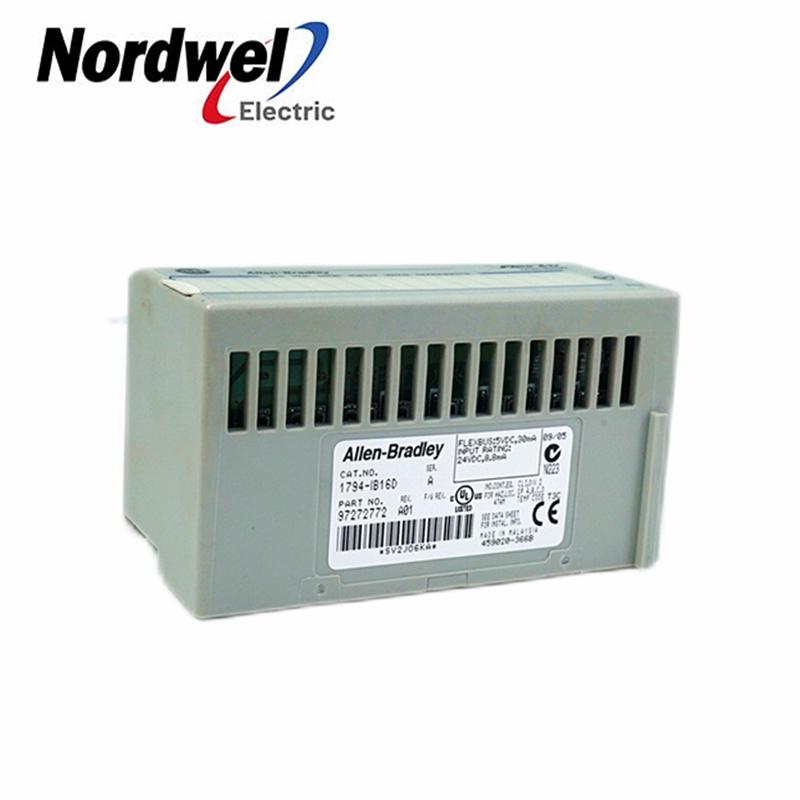

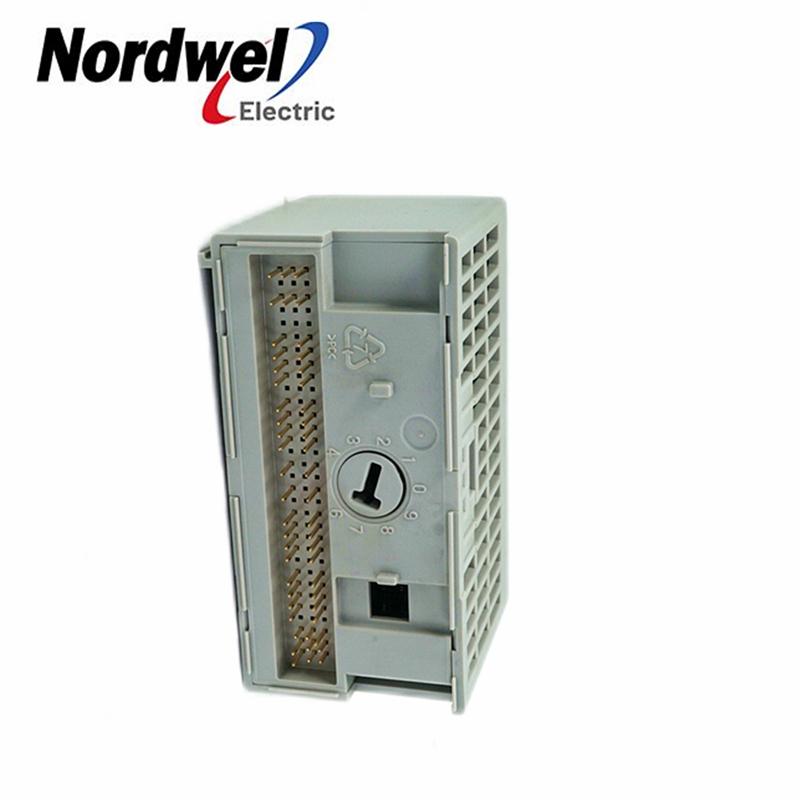

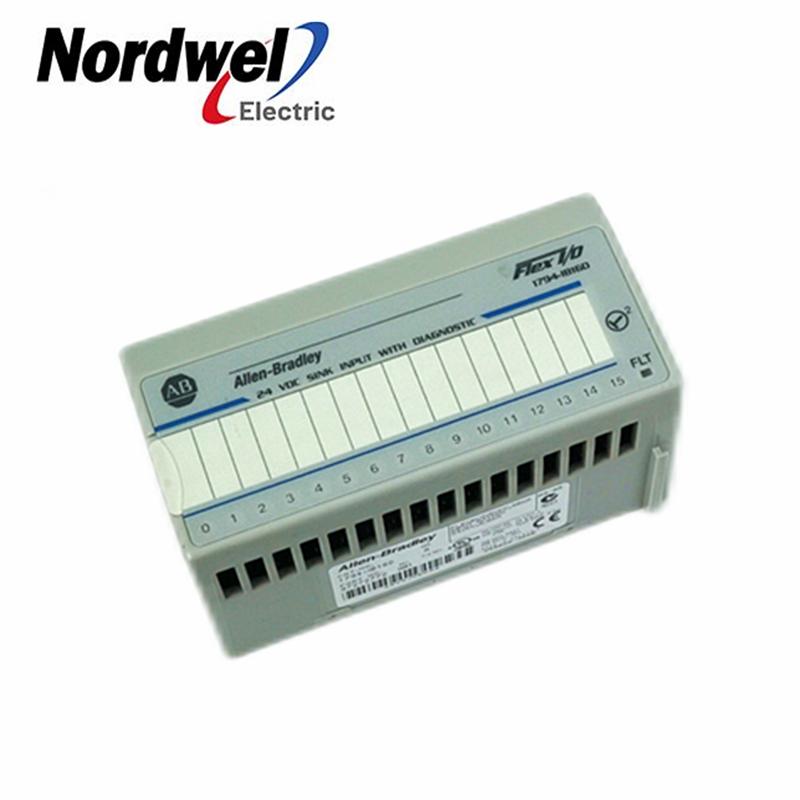

1794-IB16D FLEX I/O Input Module, 24VDC 16 Sink Inputs, Diagnostic
The 1794-IB16D Flex I/O Digital Input Module w/ Diagnostics has 16 Sinking Current Inputs, a
24V DC On-state Voltage nom., and a 1.5mA On-state Current max.. It also operates with a 50mA max. Sensor
Power Current and a 2.2V DC max. Sensor Power Voltage Drop.
Technical Specifications for 1794-IB16D
Manufacturer Automation
Brand
Part Number/Catalog No. 1794-IB16D
Product Type Flex I/O Digital Input Module w/ Diagnostics
Inputs 16 Sinking Current
On-state Voltage nom. 24V DC
On-state Current max. 1.5mA
Sensor Power Current 50mA max.
Sensor Power Voltage Drop 2.2V DC max.
Isolation Voltage 50V Continuous
Flexbus Current 30mA @ 5V DC
Power Dissipation 8.5W @ 31.2V DC max.
Thermal Dissipation 29 BTU/hr. @ 31.2V DC max.
