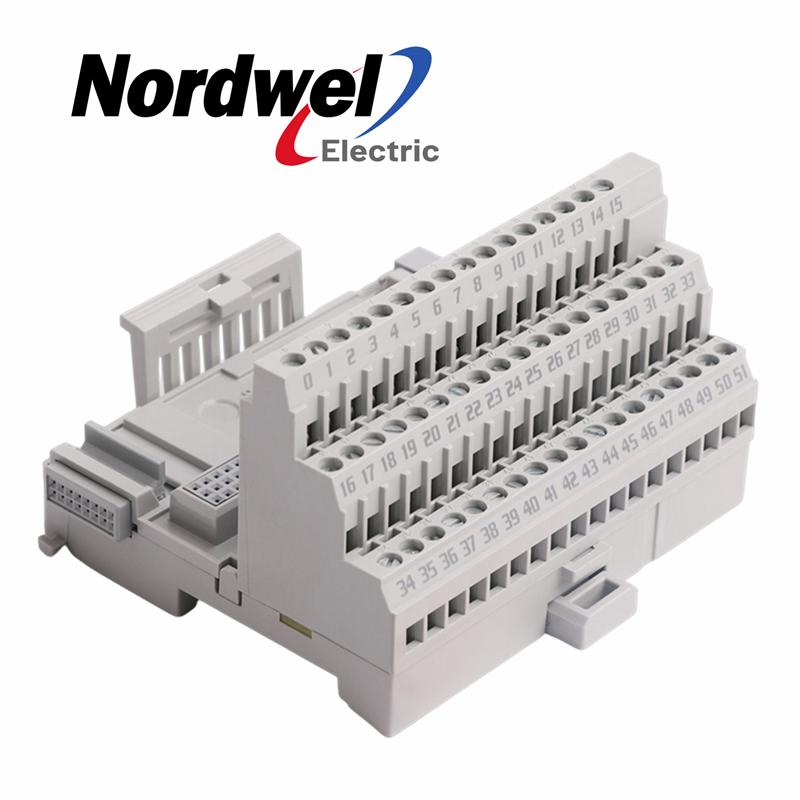

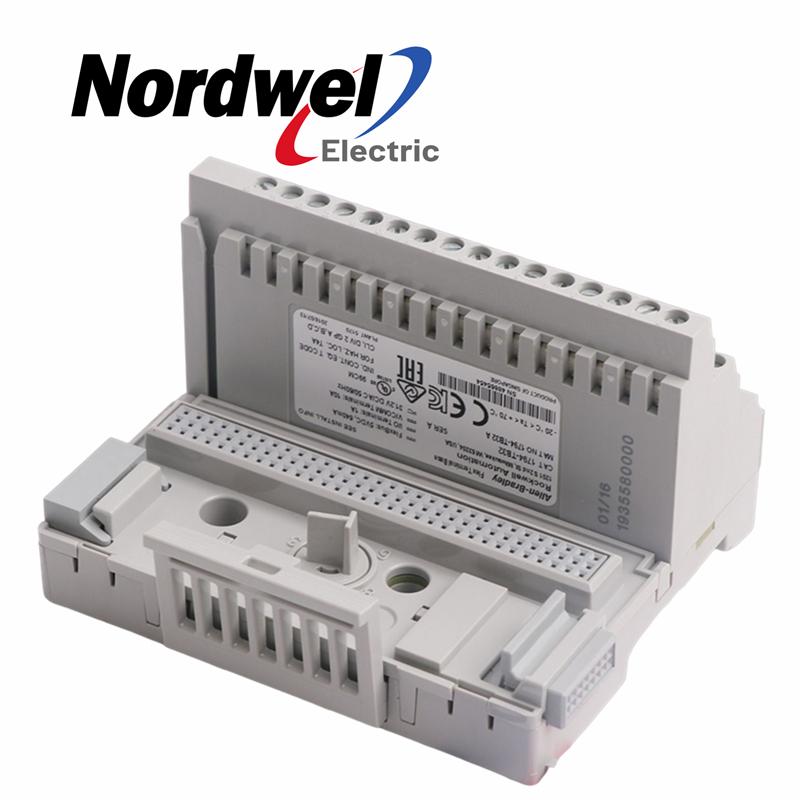

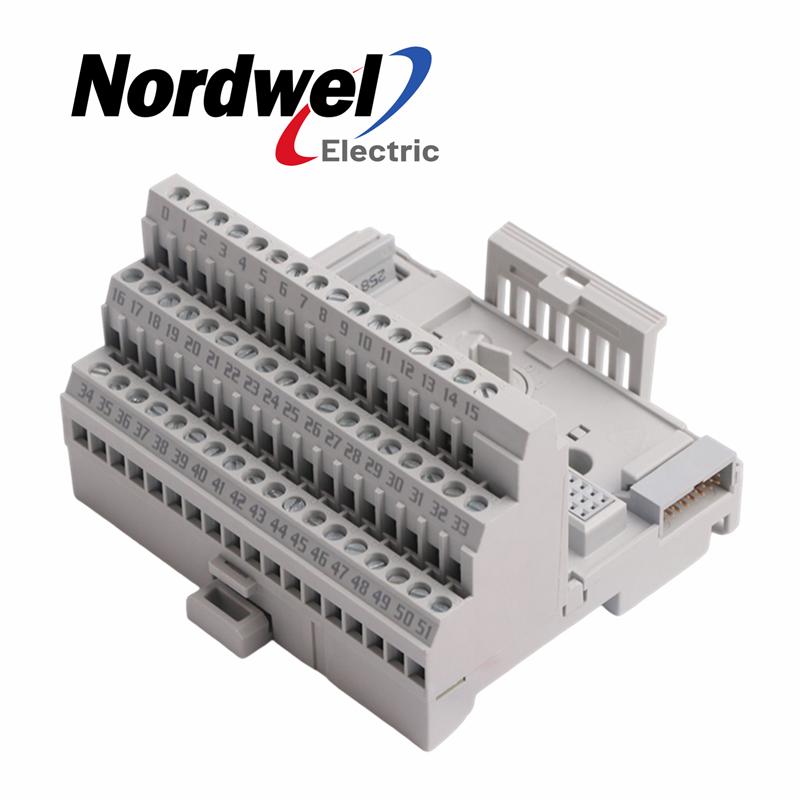

| 1794-TB32 | 1794 FLEX I/O Terminal Base Unit


  • Part Number:

    1794-TB32
  • Weight:

    0.24kg
  • Dimensions:

    3.5cmX14cmX14.5cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    1794-TB32 1794 FLEX I/O Terminal Base Unit


Description: The 1794-TB32 terminal base is a Flex I/O 1794 series terminal base unit. It is used

 to host different kinds of modules in complete Flex I/O systems. The 1794-TB32 terminal base unit supports

panel mounting and DIN Rail mounting for itself and the module that it hosts. It has 32 I/O terminals, 8 common

 terminals, and 8 voltage terminals. The 1794-TB32 terminal base unit is open-style equipment with an IP 20

 environmental protection rating.


Technical Description for 1794-TB3


The 1794-TB32 Flex I/O Terminal Base Unit has a 0.56-0.79 Nm Terminal Screw Torque, a 31.2V

 DC/AC, 50/60Hz, 10A Supply Voltage Range max., and a 50V Continuous max. Isolation Voltage. It also operates

 with a 0.21-1.3 mm^2 Wire Size and a 94x94x69 mm Dimensions.
