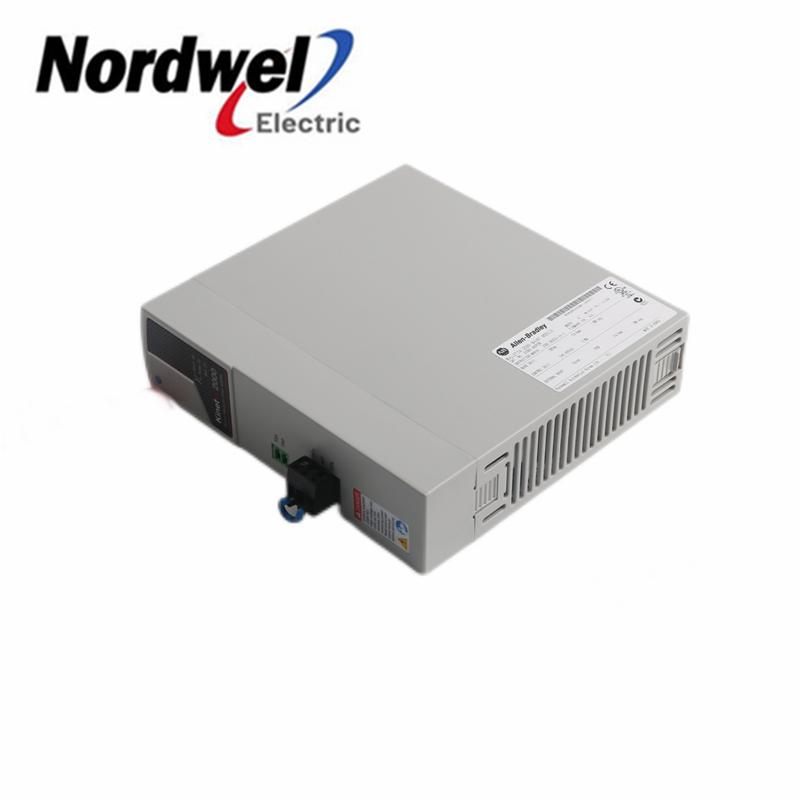

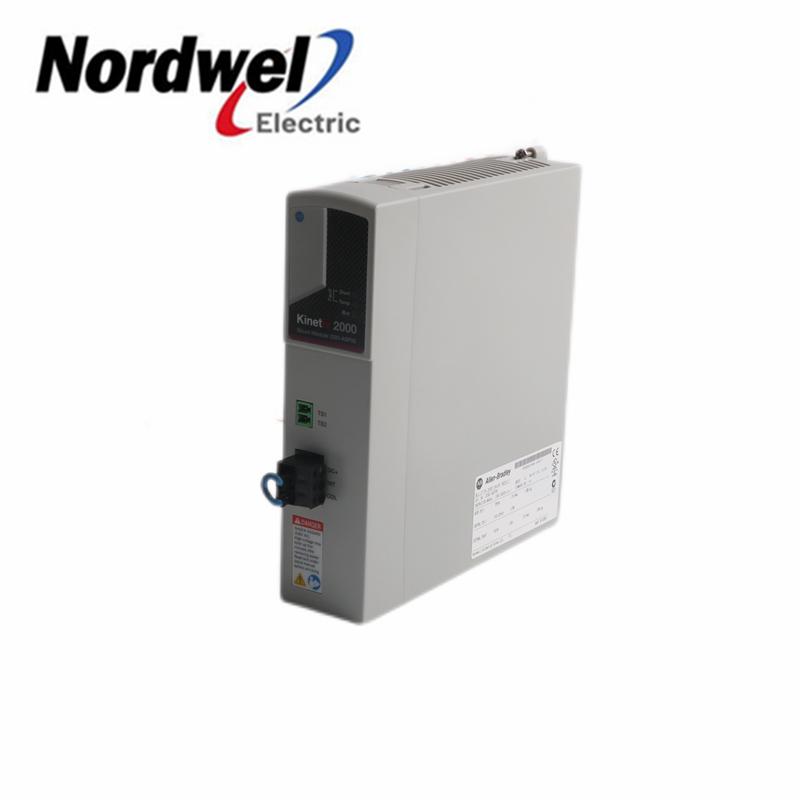

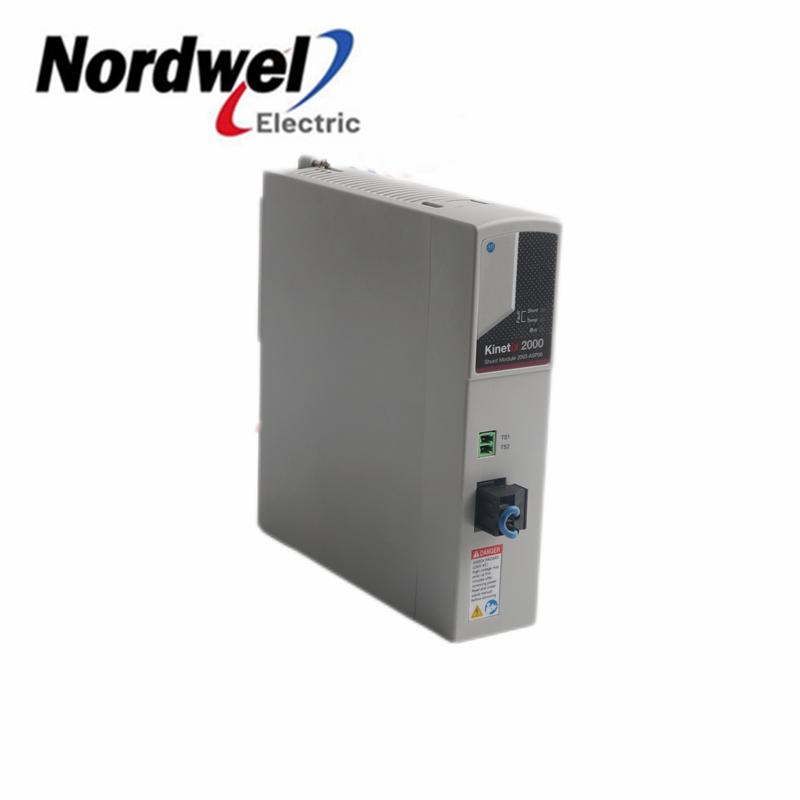

| 2093-ASP06 | Kinetix 2000 Shunt Module


  • Part Number:

    2093-ASP06
  • Weight:

    0.6kg
  • Dimensions:

    4cmX17.7cmX16.5cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    2093-ASP06 Kinetix 2000 Shunt Module (Power Rail Mountable)

The 2093-ASP06 Kinetix 2000 Shunt Module by is a component

of the Kinetix 2000 Drive System which is located on any inverter slot

(the rightmost slot for the 2093-PRS8) of the 2093 Kinetix 2000

Power Rail and it is suitable for 230V AC applications.

It has a drive voltage of 230V AC, with 15Ω internal resistance,

and it is capable of delivering 10.9 KiloWatts of maximum power output.

The shunt module has a maximum current rating of 27A,

and it has a continuous output power of 50W with a

capacitance of 164μF. The module is not internally fused and

it is built to be compatible with the 2093-AC05-MP1,

2093-AC05-MP2, and the 2093-AC05-MP5 Kinetix 2000

Integrated Axis Modules.
