Part Number:
20G11NC072JA0NNNNNWeight:
3.2 kgDimensions:
10x13.2x18cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

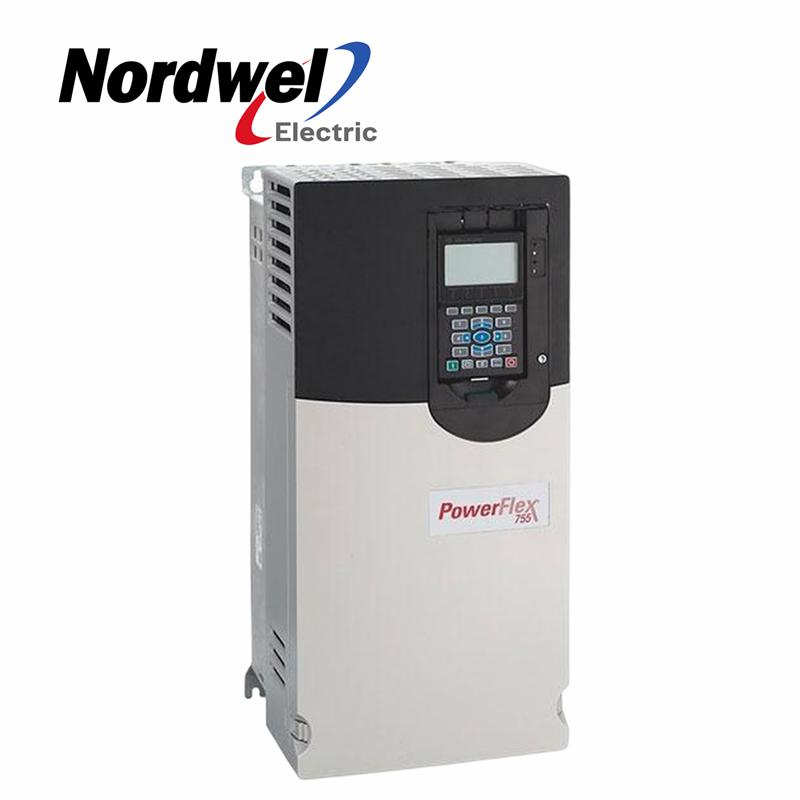

20G11NC072JA0NNNNN PowerFlex 755 400V AC Input Drive
Description: This AB 37 kilowatt PF755 VFD has an amperage output rating of 72 A. This frequency drive
features embedded Ethernet built-in, comes with a blank cover instead of the HIM module however an interface
module can be added, and is contained in an IP20 or IP00 enclosure. This PF 755 variable frequency drive has
power requirements of 400 AC (540 DC). This PF755 drive in addition comes with a Brake IGBT in the drive.
Additionally, this VFD has the CM cap connection jumper installed.
Technical Specifications for 20G11NC072JA0NNNNN
Series PowerFlex 755
Frames 1..5, 8...10
Enclosure Type AC & DC Input w/Precharge
Frames 2 2...7
Enclosure Type 2 IP20/IP00, NEMA/UL Type Open
Voltage 400V AC/540V DC
Amps 265
kW 250
Hp 300
Filtering Yes
Default CM Cap Connection Jumper Installed
